FEATURES
All-voltage option for evaluation
www.mixoneic.com
Surface-mount
ADP151
Additional parts for prototyping
ADP151UJZ-REDYKIT CONTENTS
One ADP151-3.3-EVALZ evaluation board, V
One ADP151-2.8-EVALZ evaluation board, V
Five additional
ADP151
ADP151CPZ-REDYKIT CONTENTS
One ADP151-3.3-EVALZ evaluation board, V
One ADP151-2.8-EVALZ evaluation board, V
Six additional ADP151 voltage options in a labeled bag
GENERAL DESCRIPTION
The ADP151UJZ-RedyKit and ADP151CPZ-RedyKit allow
simplified prototyping and evaluation and are available for every
standard fixed output voltage option in the
This allows the user to evaluate the voltage options with one
easy-to-order kit.
www.mixoneic.com

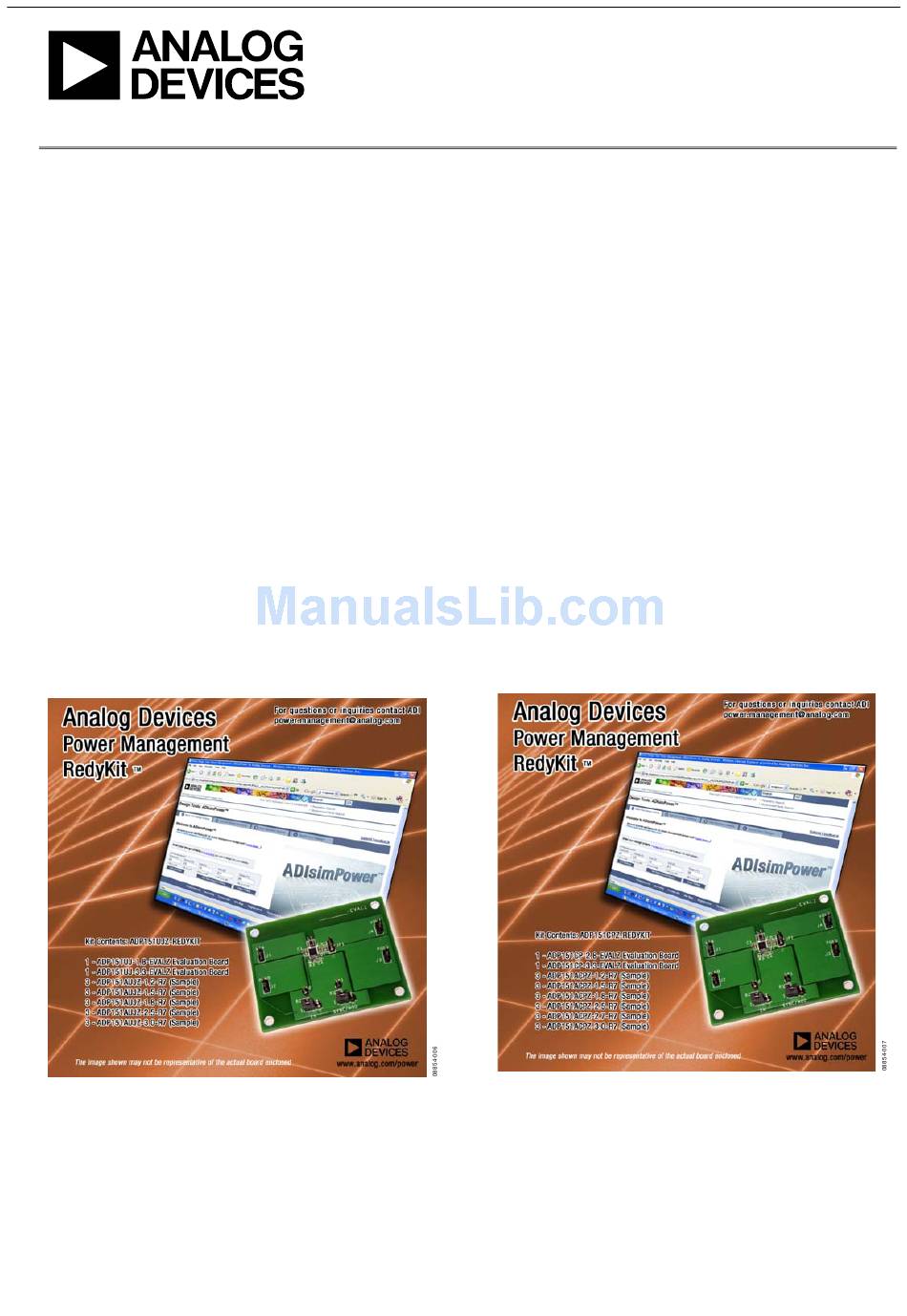

Figure 1. ADP151UJZ-RedyKit
PLEASE SEE THE LAST PAGE FOR AN IMPORTANT
WARNING AND LEGAL TERMS AND CONDITIONS.
RedyKit™ for the
parts that can be easily soldered
= 3.3 V
OUT
= 2.8 V
OUT
voltage options in a labeled bag
= 3.3 V
OUT
= 2.8 V
OUT
ADP151
product family.
Evaluation Board User Guide
ADP151
All surface-mount ADP151 parts are sorted and stored in the
kits with the Analog Devices, Inc., part number and fixed output
voltage clearly printed on each zip-top bag (see Figure 1 and
Figure 2).
The kits can be used in the engineering lab to evaluate required
voltage options. If other voltage options must be evaluated, a
different part from the kits can be easily soldered onto one of
the evaluation boards supplied with the kit.
The ADP151UJZ-RedyKit and ADP151CPZ-RedyKit are
available with fixed 3.3 V and 2.8 V evaluation boards. The kits
also contains additional parts for prototyping. The kits, which
contains individually packaged parts and the two evaluation
boards, are packaged in an ESD foam pad inside a treated
cardboard box that measures 8.7" (L) × 7.9" (W) × 1.75" (H),
that is, 22 cm (L) × 20 cm (W) × 4.5 cm (H).
For additional information, also see the ADP151 evaluation
board user guide, UG-116.
REDYKIT PACKAGES
Rev. B | Page 1 of 8
LDO
Figure 2. ADP151CPZ-RedyKit
UG-090
