Evaluating the

FEATURES

Full support evaluation kit for the
15 W multioutput flyback topology
+24 V, +5.5 V, and −15 V output voltage (V
Light load mode (LLM) operation
Dedicated internal primary and secondary side MOSFET
drivers
External reference signal tracking
Precision enabled undervoltage lockout with hysteresis
Short-circuit, output overvoltage, cycle by cycle input
overcurrent, and overtemperature protection
Frequency synchronization
Soft start and soft stop functionality

EVALUATION KIT CONTENTS

ADP1071-1EVALZ

EQUIPMENT NEEDED

DC power supply capable of 18 V
current capability of the supply
Electronic load capable of 15 W, 0 V to 30 V rating capability
of the load
Oscilloscope capable of ≥500 MHz bandwidth, 2 channels to
4 channels
Precision digital multimeter (HP 34401 or equivalent)

GENERAL DESCRIPTION

The ADP1071-1EVALZ allows users to evaluate the
in flyback topology.
The evaluation board is set up to act as an isolated power supply
solution that incorporates three output voltages (+5.5 V, +24 V,
and −15 V) at a total rated power of 15 W. The evaluation board
also provides 5 kV isolation in compact form factor, making it
suitable for industrial applications, which usually have a variety
of voltage rails.
Complete information about the
ADP1071-1/ADP1071-2
data sheet. Consult the ADP1071-1/
ADP1071-2
data sheet in conjunction with this user guide when
using the evaluation board.
PLEASE SEE THE LAST PAGE FOR AN IMPORTANT
WARNING AND LEGAL TERMS AND CONDITIONS.
ADP1071-1
Isolated Synchronous Flyback Controller
with Integrated iCoupler
ADP1071-1
)
DC
to 32 V
, 1 A output
DC
DC
ADP1071-1
ADP1071-1
is available in the
Rev. 0 | Page 1 of 13
ADP1071-1EVALZ

DIGITAL PICTURES OF THE EVALUATION BOARD

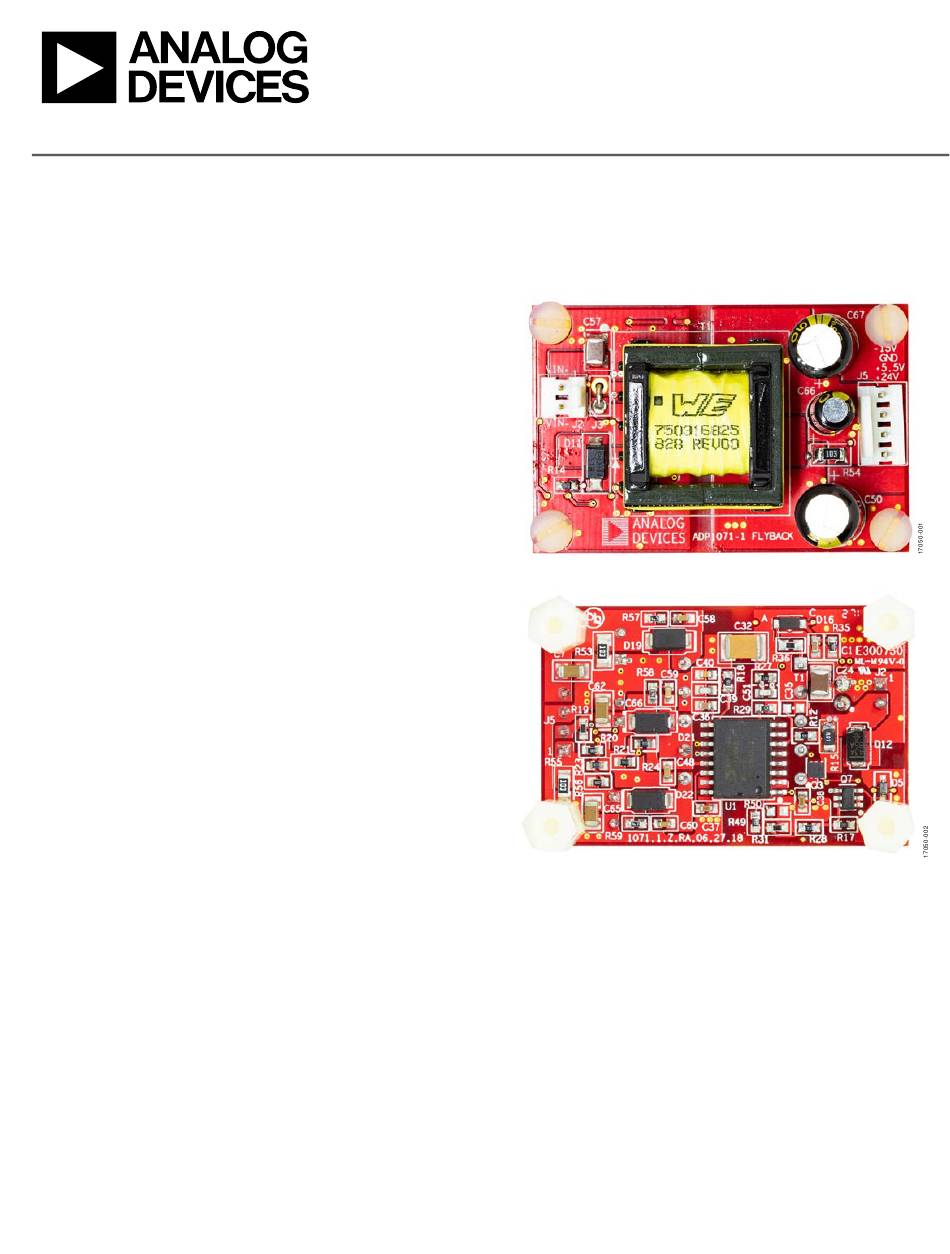

Figure 1. ADP1071-1EVALZ Top
Figure 2. ADP1071-1EVALZ Bottom
User Guide
UG-1384
