Evaluation Board User Guide

EVALUATION BOARD SOFTWARE

INSTALLING ADP5061
Before installing the ADP5061
the USB-SDP-CABLEZ must be installed. The software and the
instructions can be obtained from
CABLEZ.
After proper installation of the
the ADP5061CB-EVALZ setup CD and run the Setup.exe.

USING THE SOFTWARE GUI

The following are the GUI operation controls and status tools
(see Figure 2):
1. Operation parameter controls
2. Functional enables
3. Interrupt register indicator (Register 0x0A)
4. Charger status
5. Battery status
6. Fault indicators
7. Watchdog control
8. Digital I/O controls
2
9. I C Communication Status Indicators
EVALUATION SOFTWARE
evaluation software, the drivers for
www.analog.com/USB-SDP-
USB-SDP-CABLEZ drivers, insert
1

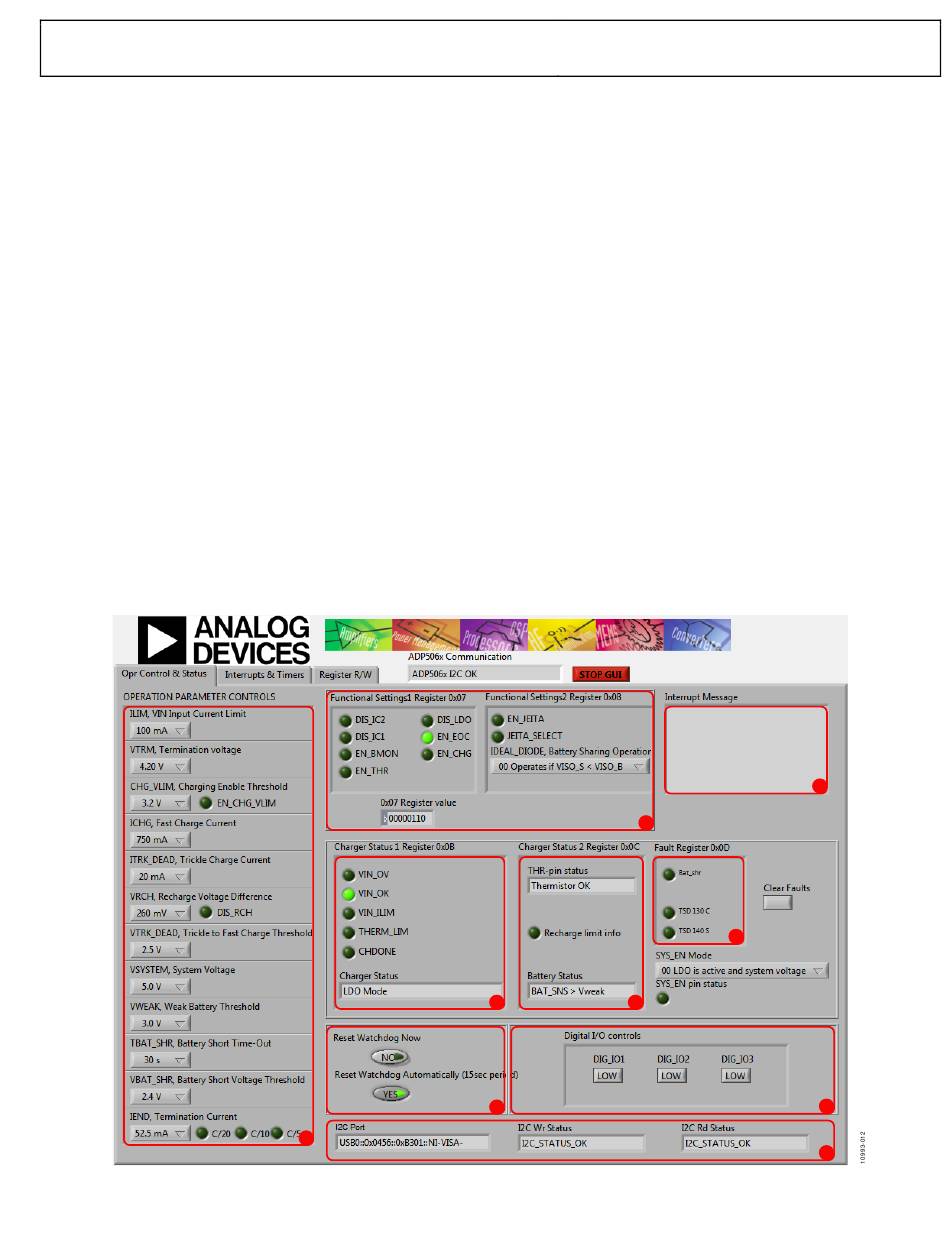

Figure 2. ADP5061

OPERATING THE BOARD WITH THE GUI

Complete the following steps to use the board:
1. Before running the software, ensure that the Analog Devices
USB-SDP-CABLEZ
2. Connect a 5 V power supply to VIN_F using the USB
Micro A-to-USB Micro B connector or alternatively connect
the power supply between the VIN_F test point and GND
(see Figure 5).
3. Click Start > All Programs > ADP506x GUI 3Vx SDP >
ADP506x GUI SDP. Once this step is completed, the
software is ready to use.
VIN must be above 2.5 V in order for the I
the ADP5061 to start working. The VIN voltage level is monitored,
and the indicators are shown in the charger status indicators
(see Number 4 in Figure 2). The GUI automatically reads the
content of the registers after every 0.3 seconds from the last
action and updates the status of the registers on screen.
If there is a problem in the I
indicators show an error message (see Number 9 in Figure 2).
When I 2 C communication is operational, status indicators show
I2C_STATUS_OK (see Figure 2).
4
7
GUI Operation Control and Status Tab
Rev. 0 | Page 3 of 12
is plugged into the USB port of the PC.
2
C communication of
2 C communication, the status
2
6
5
UG-467
3
8
9
