UG-710

FAULT RESPONSE WINDOW

The Fault Response window programs the fault response for all
the voltage, current, temperature, and GPIO faults, 22 in total.
Each fault has a configuration with a programmable debounce
time, and the response to the fault followed by the delay time
between consecutive soft starts if the PSU is shutdown as a
result of the fault action.

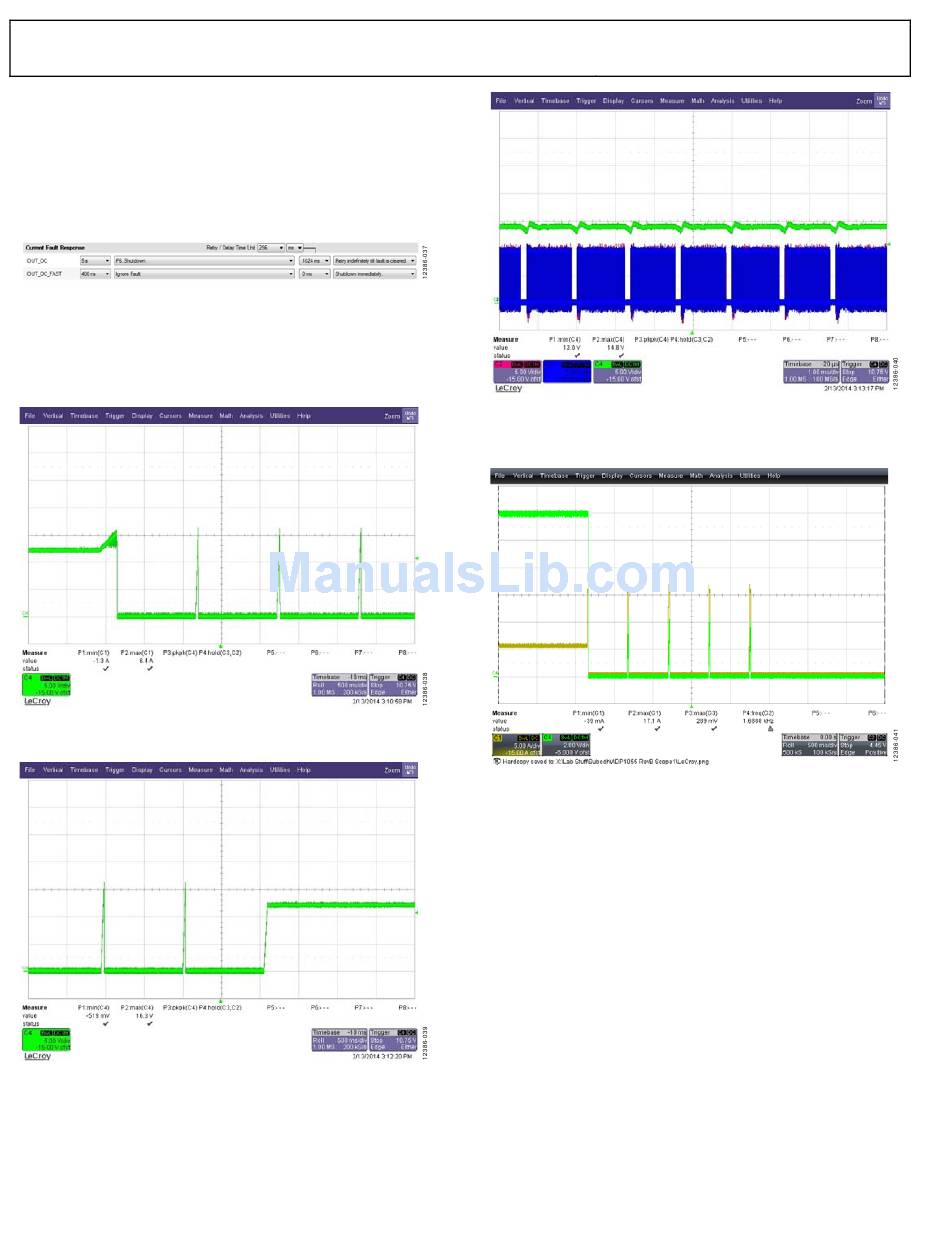

Figure 37. Current Fault Response Monitoring
The first fault ID (FFID) that caused the PSU to shutdown is
displayed in a monitoring window.
A complete description of the fault response can be found in the
data sheet.
Figure 38. VOUT_OV_FAST_FAULT
Fault Response Set to Shut Down and Retry Indefinitely
Green Trace: Output Voltage
Figure 39. Recovery from VOUT_OV_FAST_FAULT
Green Trace: Output Voltage
Fault Response Set to Disable PWMs and Retry when Fault is Cleared
Figure 41. IOUT_OC_FAULT under Short-Circuit
Fault Response Set to Shut Down and Retry 4 Times
Rev. B | Page 14 of 43
ADP1055-EVALZ User Guide
Figure 40. VOUT_OV_FAULT
Green Trace: Output Voltage
Red and Blue Trace: PWMs
Green Trace: Output Voltage
Yellow Trace: Load Current
