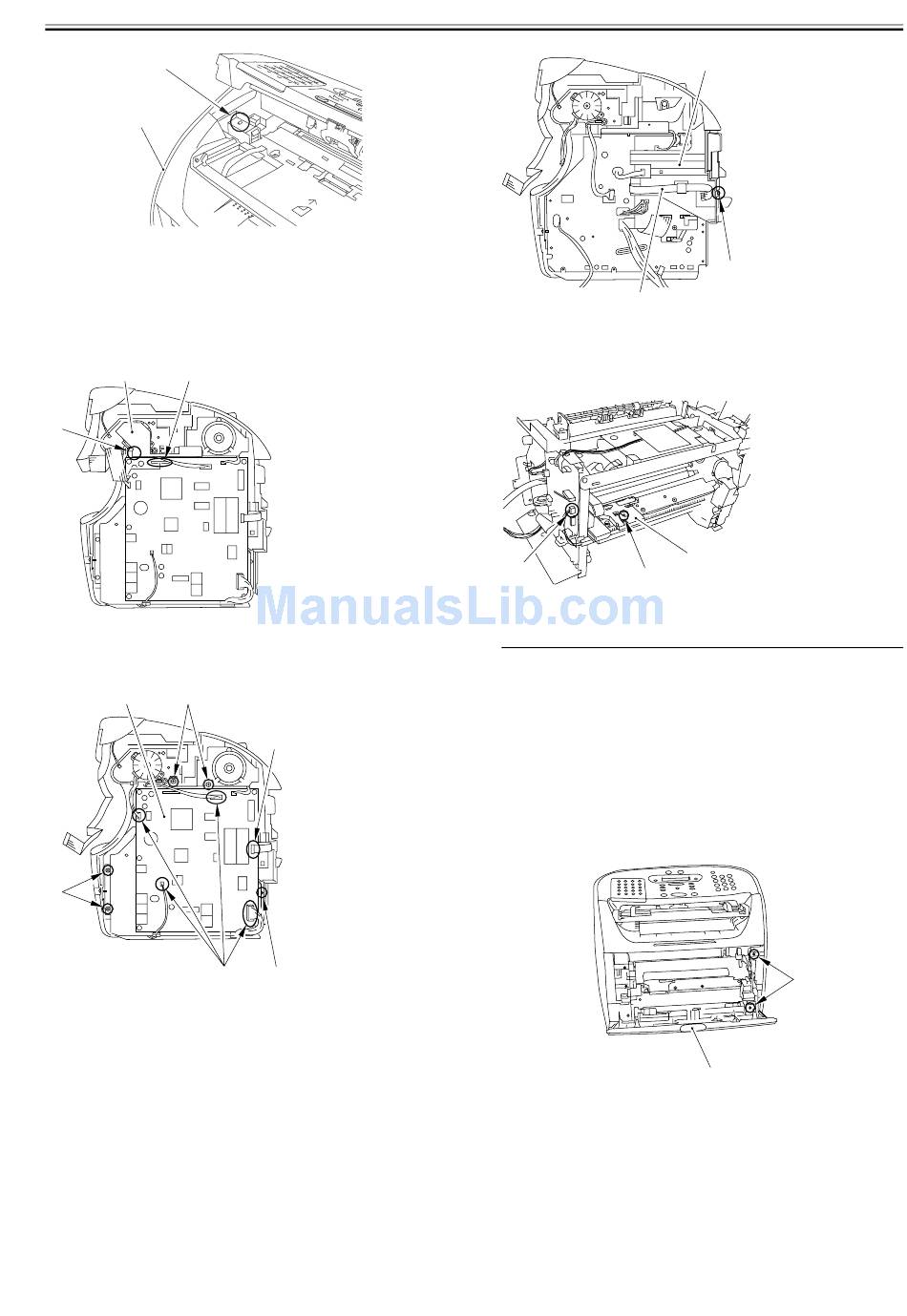

3.1.14.4 Removing the SCNT Unit

/ / FAX-L390 / / / FAX-L380S
1) Remove the flat cable [1] on the SCNT board. As you disengage the claw
[2], remove the motor cover [3].
[3] [1]
[2]
F-3-173
2) Remove the four connectors [1] and the flat cable [2].
3) Remove the five screws [3] and the SCNT unit [4].
[4] [3]
[3]
F-3-174

3.1.14.5 Removing the Toner Sensor

/ / FAX-L390 / / / FAX-L380S
1) Take the flat cable [1] off the cable guide.
2) Remove the screw [2] and remove the switch cover [3].
F-3-172
[2]
[1] [3]
0011-4765
F-3-175
3) Remove the connector [1] on the DCNT board. (The external cover is
omitted from the illustration.)
4) Remove the screw [2] and remove the toner sensor [3].
[1]
F-3-176

3.2 Document Feed/Exposure System

3.2.1 Contact Sensor

3.2.1.1 Removing the Cassette

/ / FAX-L390 / / / FAX-L380S
1) Remove the cassette by holding the cassette handle.

3.2.1.2 Removing the Right Cover

/ / FAX-L380S
1) Open the front cover [1], and remove the two screws [2] on the front side.
0011-4766
2) Remove the two screws [1] on the back side.
[3]
[2]
[1]
[3]
[2]
[2]
[1]
F-3-177
Chapter 3
0011-4767
0011-4768
3-25
