Parts Replacing and Cleaning > Parts Replacing and Cleaning > Removing the G3 Fax Unit > Procedure

Parts Replacing and Cleaning

Parts Replacing and Cleaning

Removing the G3 Fax Unit

■ Preparation

1) Remove the Cover (Rear Upper).
2) Remove the Right Cover (Rear Upper).

■ Procedure

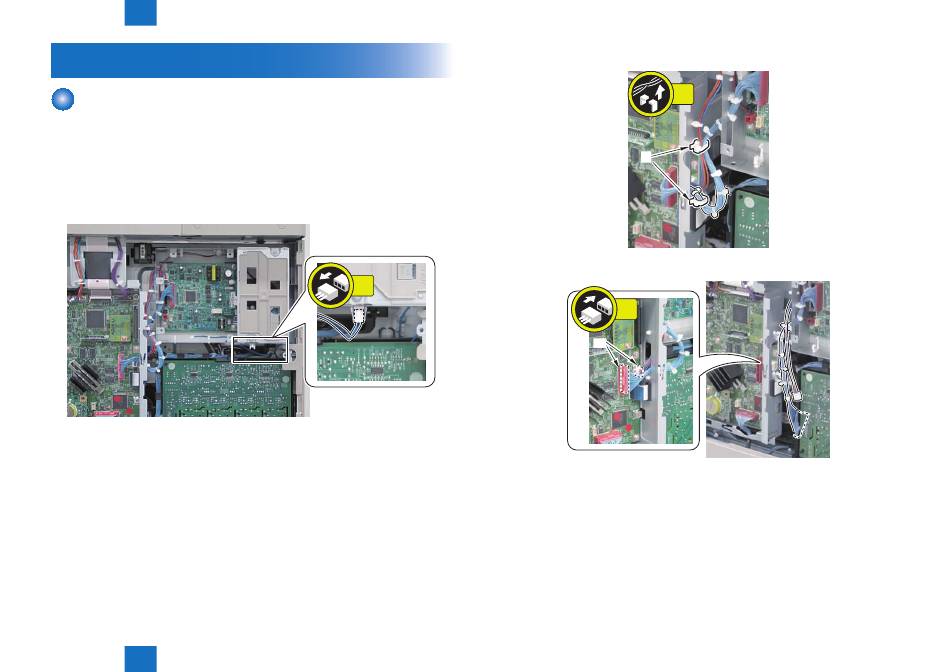

1) Disconnect the connector (when the 2-line Fax is installed).
3 Parts Replacing and Cleaning > Parts Replacing and Cleaning > Removing the G3 Fax Unit > Procedure Parts Replacing and Cleaning
2) Remove the 2 Wire Saddles [1].
3) Disconnect the 2 connectors [1].
1x
F-3-2
2x
[1]
F-3-3
2x
[1]
3-3
F-3-4
