Portable Manual
LC800/L1000/L3000 Series
Aug 29 2007

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the i-SENSYS FAX LC800 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Canon i-SENSYS FAX LC800 Series

Summary of Contents for Canon i-SENSYS FAX LC800 Series

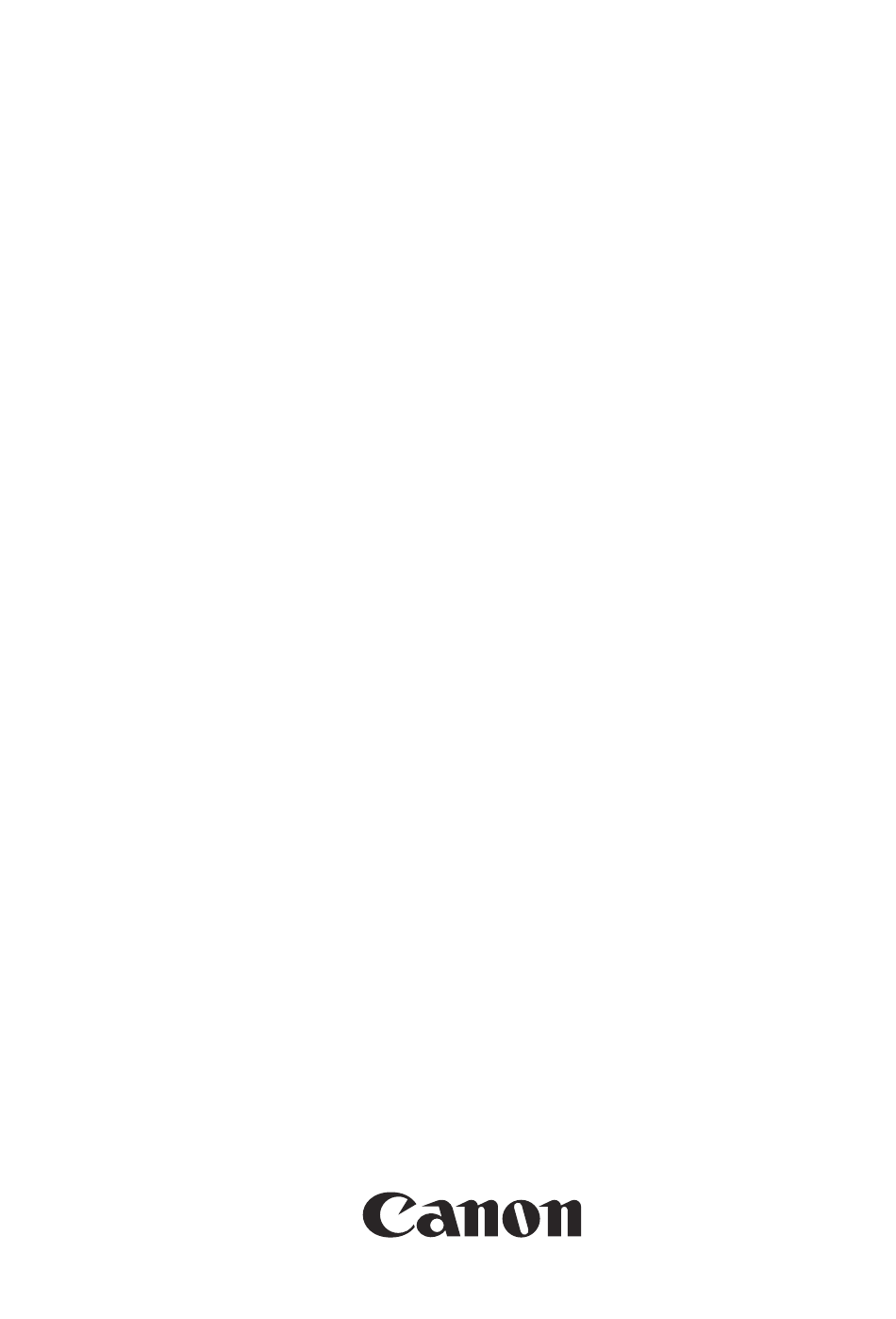

  • Page 1 Portable Manual LC800/L1000/L3000 Series Aug 29 2007...
  • Page 3 Canon will release technical information as the need arises. In the event of major changes in the contents of this manual over a long or short period, Canon will issue a new edition of this manual.

  • Page 4: Symbols Used

    Introduction Symbols Used This documentation uses the following symbols to indicate special information: Symbol Description Indicates an item of a non-specific nature, possibly classified as Note, Caution, or Warning. Indicates an item requiring care to avoid electric shocks. Indicates an item requiring care to avoid combustion (fire). Indicates an item prohibiting disassembly to avoid electric shocks or problems.
  • Page 5 Introduction The following rules apply throughout this Service Manual: 1. Each chapter contains sections explaining the purpose of specific functions and the relationship between electrical and mechanical systems with refer- ence to the timing of operation. In the diagrams, represents the path of mechanical drive; where a signal name accompanies the symbol , the arrow indicates the direction of the electric signal.

  • Page 7: Table Of Contents

    Contents Contents Chapter 1 Maintenance and Inspection 1.1 Periodically Replaced Parts ..........................1 1.1.1Periodically Replaced Parts .........................1 1.2 Durables and Consumables..........................1 1.2.1Durables ................................1 1.3 Scheduled Servicing Basic Procedure ......................1 1.3.1Periodeical Service Items ..........................1 Chapter 2 Standards and Adjustments 2.1 Image Adjustments..............................3 2.1.1Image parallelism adjustment ........................3 2.2 Scanning System ..............................4 2.2.1Action after Replacing the Contact Image Sensor ...................4...
  • Page 8 Contents 4.1.8TIMER SETTINGS............................15 4.1.9ADJUST./CLEANING ..........................15 4.1.10REPORT SETTINGS..........................15 4.1.11SYSTEM SETTINGS..........................16 Chapter 5 Service Mode 5.1 Service Soft Switch Settings (SSSW)......................21 5.1.1 Outline ................................21 5.1.1.1 Bit Switch Composition ........................21 5.1.2 SSSW-SW01 ............................... 21 5.1.2.1 List of Functions ..........................21 5.1.2.2 Detailed Discussions of Bit 0......................
  • Page 9 Contents 5.1.11 SSSW-SW30..............................26 5.1.11.1 List of Functions ..........................26 5.1.11.2 Detailed Discussions of Bit 5 ......................27 5.1.12 SSSW-SW33..............................27 5.1.12.1 List of Functions ..........................27 5.1.12.2 Detailed Discussions of Bit 0 ......................27 5.1.12.3 Detailed Discussions of Bit 1 ......................27 5.1.12.4 Detailed Discussions of Bit 2 ......................27 5.2 Menu Switch Settings (MENU) ........................27 5.2.1Menu Switch Composition..........................27 5.2.2<No.005 NL equalizer>..........................28...
  • Page 10 Contents 5.4.12<193: ADF special standard-sized paper: LGL misidentification-ready>......... 35 5.4.13<194: ADF special standard-sized paper: LTR misidentification-ready> ......... 35 5.4.14<195: ADF special standard-sized paper: LTR_R misidentification-ready>........35 5.4.15<213: XYZ correction value (X) of standard white plate> (if equipped with SEND functions) ..36 5.4.16<214: XYZ correction value (Y) of standard white plate>...
  • Page 11 Contents 5.10.2 DRAM Test ..............................53 5.10.2.1 D-RAM Test<(1) D-RAM TEST> .....................53 5.10.3 Scan Test..............................54 5.10.3.1 Scan Test ((2) SCAN TEST)......................54 5.10.4 Print Test ..............................54 5.10.4.1 Print Test ((3) PRINT TEST)......................54 5.10.5 Modem Test ...............................55 5.10.5.1 MODEM Test ((4) MODEM TEST) ....................55 5.10.6 Faculty Test..............................57 5.10.6.1 FUNCTION TEST <(6) FUNCTION TEST>...
  • Page 12 Contents 8.1.2Overview of Service Support Tool......................81...

  • Page 13: Chapter 1 Maintenance And Inspection

    Chapter 1 Chapter 1 Maintenance and Inspection 1.1 Periodically Replaced Parts 1.1.1 Periodically Replaced Parts 0011-5784 i-SENSYS Fax-L3000 / i-SENSYS Fax-L3000IP The machine does not have parts that require periodical replacement. 1.2 Durables and Consumables 1.2.1 Durables 0011-5785 i-SENSYS Fax-L3000 / i-SENSYS Fax-L3000IP The machine does not have durables.

  • Page 15: Chapter 2 Standards And Adjustments

    Chapter 2 Chapter 2 Standards and Adjustments 2.1 Image Adjustments 2.1.1 Image parallelism adjustment 0017-5659 i-SENSYS Fax-L3000 / i-SENSYS Fax-L3000IP 1) Create a test chart, load it in the ADF, and make a copy of it. Rear Test Sheet 10mm 10mm (feeding direction)

  • Page 16: Scanning System

    Chapter 2 2.2 Scanning System 13) Perform steps 1) to 4) again to reset Bit-6 of "SW003" to "0". 14) Press the OK key. When "SW003" changes to "SW004", press the Reset key to exit the service mode. 2.2.1 Action after Replacing the Contact Image Sensor 15) Check the user data list output as described in "a.
  • Page 17 Chapter 2 4) Press the following keys to display "SW003". # > 0 key > 3 key Message: #SYSTEM SW003 00001000 5) Check that Bit-6 (second from left) is set to set to "1". If Bit-6 is not set to "1", position the cursor at this bit using the arrow key and then press the 1 key.

  • Page 18: Adf

    Chapter 2 9) Using the numeric keys, change the value to determine the optimum value. Next, press the OK key. (Default: 32) 2.4 ADF Do not change the adjustment value excessively. 2.4.1 Outline 2.4.1.1 Outline 2.4.2.2 Adjusting the Horizontal Registration 0017-5663 0017-5952 i-SENSYS Fax-L3000 / i-SENSYS Fax-L3000IP...

  • Page 19: Leading Edge Registration Adjustment

    Chapter 2 required, make an adjustment. The image is shifted to the right. -> Increase the value. The specified horizontal registration is 10mm +/-2mm. Unit of adjustment 1 = 0.1 mm 3) Enter the service mode. Sequentially press the Additional functions key, 2 key, 8 key, and Additional 10±2mm functions key on the operation panel of the host machine.

  • Page 21: Chapter 3 Error Code

    Chapter 3 Chapter 3 Error Code 3.1 Jam Code 3.1.1 Jam Codes (Main body) 0016-7825 i-SENSYS Fax-L3000 / i-SENSYS Fax-L3000IP T-3-1 Code Name Sensor No. Description 0104 Pickup Delay Jam SR11 After execution of a pickup retry, the registration sensor (SR11) does not detect the leading edge of paper within a specific period of time.
  • Page 22 Chapter 3...

  • Page 23: Chapter 4 User Mode Items

    Chapter 4 Chapter 4 User Mode Items 4.1 User Mode Items 4.1.1 PAPER SETTINGS 0017-7593 i-SENSYS Fax-L3000 / i-SENSYS Fax-L3000IP MEMO: User modes of the USA model are described. Menus and defaults may vary depending on the destination. For details, refer to the User's Guide. T-4-1 Additional Functions Available Settings *: indicates factory settings.

  • Page 24: 5Tx/Rx Settings

    Chapter 4 Additional Functions Available Settings *: indicates factory settings. COPY DENSITY 1-5*-9 COL. ON*, OFF NDARD SETTINGS IMAGE QUALITY: TEXT/PHOTO*, TEXT, PHOTO DENSITY: STANDARD*, DARK, LIGHT COPIES: 1*-99 2-SIDED: OFF*, 1>2-SIDED, 2>2-SIDED, 2>1-SIDED PAPER SELECT: CASSETTE 1*, CASSETTE 2*1 SHARPNESS 1-5*-9 PAPER SIZE GROUP...

  • Page 25: 6Address Book Set

    Chapter 4 Additional Functions Available Settings *: indicates factory settings. INCOMING RING OFF, ON*(RING COUNT: 1-2*-99) REMOTE RX ON*, OFF(REMOTE RX ID: 0-25*-99) MANUAL/AUTO OFF*, ON(F/T RING TIME:1-15*-99SEC) RX RESTRICTION ON, OFF* *1: if the optional Send kit is installed. *2: A3 type only (A3 type: IMAGE CLASS 830i/FAX-L3000IP/I-SENSYS FAX-L3000IP) 4.1.6 ADDRESS BOOK SET.

  • Page 26: 7Printer Settings (If An Network Printer Kit Is Attached.)

    Chapter 4 Additional Functions Available Settings *: indicates factory settings. IFAX*1 E-MAIL ADDRESS max. 120 digits NAME max. 16 characters, including spaces FTP*1 HOST NAME max. 120 digits NAME max. 16 characters, including spaces FILE PATH max. 120 digits LOGIN NAME max.

  • Page 27: 8Timer Settings

    Chapter 4 Additional Functions Available Settings *: indicates factory settings. ERROR TIME OUT ON (5-15*-300SEC), OFF INIT. PRINTER SET YES, NO PCL SETTINGS*1 PAPER SAVE ON, OFF* ORIENTATION PORTRAIT, LANDSCAPE FONT NUMBER 0-91 POINT SIZE 4.00-12.00*-999.75 PITCH 0.44-10.00*-99.99 FORM LINES 5-60*-128 SYMBOL SET CUSTOM PAPER...

  • Page 28: 11System Settings

    Chapter 4 Additional Functions Available Settings *: indicates factory settings. PRINT ERROR ONLY REPORT WITH TX IMAGE: OFF, ON OUTPUT YES REPORT WITH TX IMAGE: OFF, ON RX REPORT OUTPUT NO, PRINT ERROR ONLY*, OUTPUT YES ACTIVITY REPORT AUTO PRINT OUTPUT YES, OUTPUT NO* TX/RX SEPARATE OFF*, ON...
  • Page 29 Chapter 4 Additional Functions Available Settings *: indicates factory settings. RAW PRINT ON*, OFF USE PASV MODE*2 ON, OFF* FTP EXTENSION*2 ON, OFF* USE HTTP ON*, OFF PROXY SETTINGS*2 USE PROXY OFF, ON(SERVER ADDRESS, PORT. NO, USE SAME DOMAIN: ON, OFF*, AUTH SETTINGS: ON, OFF) PORT NO.
  • Page 30 Chapter 4 Additional Functions Available Settings *: indicates factory settings. E-MAIL/I-FAX SETTINGS*2 MAX TX DATA SIZE 0MB* - 99MB DIVIDED OVER MAX ON, OFF* FAX SETTINGS TX START SPEED 33600bps*, 2400bps, 4800bps, 7200bps, 9600bps, 14400bps RX START SPEED 33600bps*, 2400bps, 4800bps, 7200bps, 9600bps, 14400bps R-KEY SETTING TX DOC.
  • Page 31 Chapter 4...

  • Page 33: Chapter 5 Service Mode

    Chapter 5 Chapter 5 Service Mode 5.1 Service Soft Switch Settings (SSSW) 5.1.1 Outline 5.1.1.1 Bit Switch Composition 0012-9996 i-SENSYS Fax-L3000 / i-SENSYS Fax-L3000IP The items registered and set by each of these switches comprise 8-bit switches. The figure below shows which numbers are assigned to which bits. Each bit has a value of either 0 or 1.

  • Page 34: Detailed Discussions Of Bit 7

    Chapter 5 Function not used not used tonal signal before CED signal transmission transmit do not transmit 5.1.3.2 Detailed Discussions of Bit 7 0011-4096 i-SENSYS Fax-L3000 / i-SENSYS Fax-L3000IP Use it to enable/disable transmission of a 1080-Hz tonal signal before transmission of the CED signal. Select 'transmit' if errors occur frequently because of an echo when reception is from overseas.

  • Page 35: Detailed Discussions Of Bit 5

    Chapter 5 5.1.4.5 Detailed Discussions of Bit 5 0017-8043 i-SENSYS Fax-L3000 / i-SENSYS Fax-L3000IP In the countries that need approval of CI signal frequency check, no checking on frequency set at PBX when changing the frequency to PSTN setting and PBX setting for frequency checks.

  • Page 36: Sssw-Sw13

    Chapter 5 Function Respective page timer settings for transmission and for enable do not enable reception The machine will stop the ongoing communication if the transmission/reception of a single original page takes 32 min or more. To use the timer for a purpose other than this function, refer to the tables that follow, and select an appropriate time length.

  • Page 37: Detailed Discussions Of Bit 2

    Chapter 5 5.1.7.2 Detailed Discussions of Bit 2 0011-4108 i-SENSYS Fax-L3000 / i-SENSYS Fax-L3000IP It converts "inch" into "mm" when transmitting the received image data. Scanning direction in conversion follows the Bit 2 setting of SW14. 5.1.8 SSSW-SW14 5.1.8.1 List of Functions 0011-4110 i-SENSYS Fax-L3000 / i-SENSYS Fax-L3000IP T-5-10...

  • Page 38: Detailed Discussions Of Bit 2

    Chapter 5 5.1.9.3 Detailed Discussions of Bit 2 0017-8046 i-SENSYS Fax-L3000 / i-SENSYS Fax-L3000IP At "1" on this Bit, ignore the void CSI if received and if the dial has been made at this point, the dialed number will be indicated on the LCD/ Report screen. At "0"...

  • Page 39: Detailed Discussions Of Bit 5

    Chapter 5 Function Not used Not used New dial tone detection method Detect with the new Detect with the method. existing method. Not used Not used 5.1.11.2 Detailed Discussions of Bit 5 0011-4124 i-SENSYS Fax-L3000 / i-SENSYS Fax-L3000IP When "Detect with the new method" is selected, tone is detected for 3.5 seconds before call origination in order to discriminate between dial tone and voice. If dial tone is detected and the time since line seizure is 3.5 seconds or longer, call origination takes place immediately.

  • Page 40: 2

    Chapter 5 T-5-15 Function Range of settings NL equalizer 1: ON, 0: OFF telephone line monitor 0:DIAL, 1:SERVICEMAN1, 2:SERVICEMAN2, 3:OFF transmission level (ATT) from 0 to 15 (ex: 15= -15 dBm) V.34 modulation speed upper 0:3429, 1:3200, 2:3000, 3:2800, 4:2743, 5:2400 limit V34 data speed upper limit 0:33.6 kbps, 1:31.2 kbps, 2:28.8 kbps, 3:26.4 kbps, 4:24.0 kbps,...

  • Page 41: Transmission Condition (3)

    Chapter 5 Item Range of settings line condition identification time length 0 to 9999 (10 msec) T.30T1 timer (for reception) 0 to 9999 (10 msec) T.30 EOL timer 500 to 3000 (10 msec) hooking detection time length 0 to 999 time length to first response at time of fax/tel switchover 0 to 9 pseudo RBT signal pattern ON time length...

  • Page 42: 6<011: T.30 T1 Timer (For Reception)

    Chapter 5 Memo: Any of the following error codes may be indicated because of the condition of the line ##0005, ##0018 The line condition identification time is between when the dial signal is transmitted and when the line condition is cut for the transmitting party, while it is between when the DIS signal is transmitted and when the line is cut for the receiving party.
  • Page 43 Chapter 5 300s: print 400s: copy + print 500s: scan 700s: received file print 800s: report pint 900s: transmitted scan Guide to the Table - 1:Count sheets of all sizes by one. - 2:Count sheets of the large size by two. - C:full color - Bk:black mono - L:large size (larger than A4/LTR)
  • Page 44 Chapter 5 Seri Counter type Print system Bk 1-sided L Bk 1-sided S Bk 2-sided L Bk 2-sided S Local Repo Local Repo Local Repo Local Repo coun copy print print copy print print copy print print copy print print print print print...
  • Page 45 Chapter 5 Seri Counter type Print system Bk 1-sided L Bk 1-sided S Bk 2-sided L Bk 2-sided S Local Repo Local Repo Local Repo Local Repo coun copy print print copy print print copy print print copy print print print print print...

  • Page 46: Scanner Function Settings (Scanner)

    Chapter 5 5.4 Scanner Function Settings (SCANNER) 5.4.1 Numeric Parameter Functional configuration 0016-7943 i-SENSYS Fax-L3000 / i-SENSYS Fax-L3000IP Function Default Setting range Unit 001: - 023: Not used 024: CIS scan position during ADF scanning. (CIS shift type only) 40-80 one unit=0.1mm 025: Not used...

  • Page 47: 5<044: Horizontal Scan End Position Correction (Superfine:scanning On Adf)

    Chapter 5 5.4.5 <044: Horizontal scan end position correction (superfine:scanning on ADF)> 0016-7950 i-SENSYS Fax-L3000 / i-SENSYS Fax-L3000IP Adjust the position at which horizontal scanning of a FAX document scanned in superfine mode ends. The larger the adjustment value, the narrower the bottom margin of the image becomes.

  • Page 48: 15<213: Xyz Correction Value (X) Of Standard White Plate> (If Equipped With Send Functions)

    Chapter 5 5: A_LTR_R 5.4.15 <213: XYZ correction value (X) of standard white plate> (if equipped with SEND functions) 0017-7847 i-SENSYS Fax-L3000 / i-SENSYS Fax-L3000IP If you replaced the image processor PCB, enter values indicated on the service label. If you have replaced the document glass, enter values indicated on the new document glass and write the values on the service label.

  • Page 49: Sssw-Sw14

    Chapter 5 Function not used priority on recording in sub scanning direction place do not place 5.5.1.1.2 Detailed Discussions of Bit 7 0011-4191 i-SENSYS Fax-L3000 / i-SENSYS Fax-L3000IP Use it to enable/disable placement of priority on recording in sub scanning direction. T-5-18 place: if B4 recording paper and A4 recording paper are set and an A4 extra-long image...

  • Page 50: Sssw-Sw15

    Chapter 5 Select whether to enable or disable silent mode. Select "Enable" to modify the registration loop amount and thus reduce noises or squeaks the registration rollers produce after picking paper from the individual paper inlets. 5.5.1.2.6 Detailed Discussions of Bit 7 0012-7584 i-SENSYS Fax-L3000 / i-SENSYS Fax-L3000IP Select whether the pre-rotation is to be extended.

  • Page 51: 031: Top Registration Adjustment (Manual Feed Tray)

    Chapter 5 Function Default Setting range Adjustment of margin at leading edge of copy 0 to 9999, one unit = 5 deg C Adjustment of margin at trailing edge of copy 0 to 9999, one unit = 5 deg C Adjustment of margin at right edge of copy 0 to 9999, one unit = 5 deg C Adjustment of margin at left edge of copy...

  • Page 52: 055: Margin Adjustment At The Right Edge Of The Copy

    Chapter 5 5.5.2.15 <055: Margin adjustment at the right edge of the copy> 0012-7599 i-SENSYS Fax-L3000 / i-SENSYS Fax-L3000IP Adjust the margin at the right edge of the copy. Increasing the value makes the margin at the right edge larger. 5.5.2.16 <056: Margin adjustment at the left edge of the copy>...

  • Page 53: Setting Of System Functions (System)

    Chapter 5 5.6 Setting of System Functions (SYSTEM) 5.6.1 Bit Switch Settings 0017-7858 i-SENSYS Fax-L3000 / i-SENSYS Fax-L3000IP SSSW-SW03 functional configuration T-5-21 Function Not used Not used Not used Not used Not used Not used Imports and exports user information via USB. Enable Disable Not used...

  • Page 54: 2Clearing Counters

    Chapter 5 T-5-23 Parts counter list Item Counter Explanation Service life DRBL-1 (Unit supplies) FX-UNIT Fixing unit paper pass count 150,000 TR-ROLL Transfer charger roller high-voltage ON count 150,000 DV-UNT-C Developing unit rotation count 150,000 M-PU-RL Manual feed tray pickup roller paper pass count 150,000 M-SP-PD Manual feed tray separation pad paper pass count...

  • Page 55: Report Output (Report)

    Chapter 5 5.8 Report Output (REPORT) 5.8.1 Report Output 0016-8002 i-SENSYS Fax-L3000 / i-SENSYS Fax-L3000IP The table below lists the kinds of reports that are supported. Item Explanation SERVICE DATA LIST Service mode service soft switch output (SSSW, MENU, NUMERIC Param., SPECIAL, NCU, SCAN, PRINT, SYSTEM, ROM, start date) SYSTEM DATA LIST Service mode service soft switch output (SSSW, MENU, NUMERIC Param., SPECIAL, NCU, SCAN, PRINT, SYSTEM, ROM,...

  • Page 56: 3System Dump List

    Chapter 5 5.8.3 System Dump List 0016-8008 i-SENSYS Fax-L3000 / i-SENSYS Fax-L3000IP - System Dump List Use it to check the history of communications, both successful and error. F-5-6 *1: TX, number of total pages transmission. *2: Total number of pages transmitted/received according to original size. *3: RX, number of total pages reception.

  • Page 57: 4Counter List

    Chapter 5 2003 09/02 TUE 12:00 #1 LATEST #000 START TIME 09/02 10:00 OTHER PARTY 12345678 MAKER CODE 10001000 MACHINE CODE 0100001 00000000 RCV V.8 FRAME E0 81 85 D4 90 7E 00 00 SYMBOL RATE 3429 baud DATA RATE 28800 bps [V.
  • Page 58 Chapter 5 07/12/2005 13:07 FAX *************************************** *** JAM/ERR LOG REPORT *************************************** [1] [2] [3] [4] [5] [6] [8] [9] [10] 01 04/12 12:17 20:03 4 0012 000026 1 A4 20 04/12 12:17 20:03 4 0012 000026 1 A4 [1] [2] [3] [4] [5] 01 04/12 12:17 15:36 3 0010 0000 000691...

  • Page 59: 6Spec List

    Chapter 5 Error history description (ERR) Item Explanation Location 3: Main unit Error code Error code (4-digit code; for a definition of the code, see the "Error Code" Chapter.) Detail code Detail code of the error code (4-digit code; for a definition of the code, see the "Error Code" Chapter.) Total counter display 5.8.6 Spec List...

  • Page 60: 7Service Label

    Chapter 5 07/12/2005 13:07 FAX _ _ _ _ _ 045: 0075 _ _ _ _ _ 046: 0075 _ _ _ _ _ 047: 0032 _ _ _ _ _ 048: 0032 _ _ _ _ _ 054: 0032 _ _ _ _ _ 213: 0000...

  • Page 61: 8E-Rds Communication Error Log List

    Chapter 5 5.8.8 e-RDS Communication Error Log List 0016-8011 i-SENSYS Fax-L3000 / i-SENSYS Fax-L3000IP Description: Detailed information output when a communication error occurs (For the output error message, see "RDS > Error Messages".)

  • Page 62: 9Environmental Log Report

    Chapter 5 5.8.9 Environmental Log Report 0017-7873 i-SENSYS Fax-L3000 / i-SENSYS Fax-L3000IP 06/27/2007 13:07 FAX 0001 *********************************************** *** ENVIROMENTT LOG REPORT *********************************************** SERIAL NO XXXxxxx ENVIROMENT DATE TIME D+Temp E+Hum F+Temp F+Temp 0616 0930 D030 E026 F180 F180 0616 1030 D028 E025 F181...

  • Page 63: Test Mode (Test)

    Chapter 5 Group Item Explanation ACTIVITY Initializes the activity report ACCOUNT Clears print histories. Clears the jam history. Clear the error (error code) history. ALARM Clears the alarm history. ENVIROMENT Initializes the enviroment log data. CARD Clears department management information held in the controller before the card reader is demounted.
  • Page 64 Chapter 5 T-5-25 Numerals enclosed in parentheses denote a numeric keypad key to be pressed each. Group Subgroup Item 1 Item 2 Item 3 Explanation TEST MODE [1] - [9], [#] (1) DRAM [1] - [2] D-RAM data check (1) DRAM TEST Write/read check (2) DRAM TEST Read check...

  • Page 65: Dram Test

    Chapter 5 Numerals enclosed in parentheses denote a numeric keypad key to be pressed each. Group Subgroup Item 1 Item 2 Item 3 Explanation (1) FUNCTION TEST G3 4800bps G3 4800 bps signal transmission test (3) 6-3 SENSOR [1] - [8] Sensor checks (1) SENSOR CHECK 0:NORMAL 1:LATCH (0) SENSOR NORMAL [0] - [2]...

  • Page 66: Scan Test

    Chapter 5 D-RAM TEST 30208KB [1] - [2] D-RAM TEST 30208KB D-RAM TEST 30208KB complete (no error) WRT= 33CC RD= 33EC ADR= BF840201 D-RAM TEST 30208KB D-RAM TEST 30208KB complete (error) F-5-13 5.10.3 Scan Test 5.10.3.1 Scan Test ((2) SCAN TEST) 0017-7806 i-SENSYS Fax-L3000 / i-SENSYS Fax-L3000IP Scan test ((2) SCAN TEST)

  • Page 67: Modem Test

    Chapter 5 5.10.5 Modem Test 5.10.5.1 MODEM Test ((4) MODEM TEST) 0017-7808 i-SENSYS Fax-L3000 / i-SENSYS Fax-L3000IP MODEM test((4) MODEM TEST) These tests test modem and NCU transmission and reception. The modem tests check whether signals are sent correctly from the modem by comparing the sound of the signals from the speaker with the sounds from a normal modem.
  • Page 68 Chapter 5 Keypad Frequency 1850Hz 2100Hz MEMO: The frequency and the output level of individual frequencies are in keeping with the output level set in service mode. G3 Signal Transmission Test A press on '4' on the keypad from the MODEM test menu selects the G3 signal transmission test. In this test, the following G3 signals from the modem are trans- mitted using the telephone line terminal and the speaker.

  • Page 69: Faculty Test

    Chapter 5 Left/right arrow key Transmission speed 2400bps 4800bps 7200bps 9600bps < 12000bps 14400bps 16800bps 19200bps 21600bps > 24000bps 26400bps 28800bps 31200bps 33600bps 5.10.6 Faculty Test 5.10.6.1 FUNCTION TEST <(6) FUNCTION TEST> 0017-7809 i-SENSYS Fax-L3000 / i-SENSYS Fax-L3000IP Function test ((6) FUNCTION TEST) Press the numeric keypad key 6 on the test mode menu to select the function test.
  • Page 70 Chapter 5 6-3:SENOR [1] - [8] Press numeric keypad key 1. Press numeric keypad key 0. Press numeric keypad key 0. SENSOR CHECK SENSOR NORMAL CAS 0 REG 0 0:NORMAL 1:LATCH [0] - [2] DEL 0 0 MULTI 0 Select a sensor mode. CAS:Cassette paper sensor (SR9): 0/Document presence, 1/Document absence 0: NORMAL REG:Registration sensor (SR11): 0/Document presence, 1/Document absence...
  • Page 71 Chapter 5 Press numeric keypad key 4. REF xxx ANT xxx |ANT - LEF| xxx REF: Toner reference voltage (A/D value) ANT: Toner antenna voltage (A/D value) ANT - LEF: Differential voltage (A/D value) Press numeric keypad key 5. BSCT on BDOC[A3 ] BDSS3-0 [of of of of]...

  • Page 72: Cleaning Mode

    Chapter 5 Test menu 3 Press numeric keypad key 3 on the LINE DETECT menu to select test menu 3. When the CNG signal is detected on the telephone line connection terminal, the touch panel (LCD) display changes from OFF to ON, indicating the received frequency. The touch panel (LCD) displays the status of CML, CNG and FED detection, from left to right, with ON/OFF indications.

  • Page 73: Chapter 6 Outline Of Components

    Chapter 6 Chapter 6 Outline of Components 6.1 Sensor 6.1.1 List of Sensors 0017-2293 i-SENSYS Fax-L3000 / i-SENSYS Fax-L3000IP T-6-1 Symbol Name Function Part No. Connection jack No. Jam code Delivery sensor Detects delivery paper. WG8-5776 J107 (DC controller PCB) 010c, 0210, 0214, 021c Cassette paper sensor Detects presence/absence of...

  • Page 74: Pcbs

    Chapter 6 6.2 PCBs 6.2.1 List of PCBs 0017-2295 i-SENSYS Fax-L3000 / i-SENSYS Fax-L3000IP T-6-2 Symb Name Function Part No. Image processor PCB Processes output image data A4 model: FM3-3379 A3 model: FM3-3369 DC controller PCB Controls the printer unit/option 100/120V: FM3-3841 230V: FM3-3842 Reader controller PCB...
  • Page 75 Chapter 6 [10] [15] [14] [13] [16] [12] [11] F-6-2...
  • Page 76 Chapter 6...

  • Page 77: Chapter 7 System Construction

    Chapter 7 Chapter 7 System Construction 7.1 Construction 7.1.1 Functional Construction 0016-7906 i-SENSYS Fax-L3000 / i-SENSYS Fax-L3000IP The machine may be divided into the following 7 functional blocks. Printer communication Fax communication system system Modem PCB Network PCB Mojular jack PCB Image reading/ NCU PCB processing system...

  • Page 78: 2Functional Block Diagram

    Chapter 7 7.1.2 Functional Block Diagram 0016-7907 i-SENSYS Fax-L3000 / i-SENSYS Fax-L3000IP Contact SL2003 CL2001*3 M2001 SR2008*3 SR2010*3 CL2002 SL2004 M2002 SR2007*3 SR2009*3 image snsor J2006 J2003 J2005 J2001 J2010 J2011 J2012 J2013 J2016 J2002 J460 Capacitor J411 J406 J405 J403 J407 Speaker...

  • Page 79: 3Image Processor Pcb

    Chapter 7 7.1.3 Image Processor PCB 0016-7908 i-SENSYS Fax-L3000 / i-SENSYS Fax-L3000IP 1.function The image processor PCB has the following functions. Control Panel Control Block The control panel control block receives the state of control keys while sending/receiving data in serial communication with the control IC of the control panel PCB. Also, it sends LED and LCD signals to the control panel PCB.

  • Page 80: 5Reader Controller Pcb

    Chapter 7 High-Voltage Control Block The high-voltage control block controls the high voltage for the primary charging roller, developing cylinder of the cartridge, transfer charging roller, and fixing film. Drive Control Block The drive control block controls the main motor, pickup solenoid, and fan. Sensor Detection It detects the state of the sensors in the pickup assemblies and the printer block, thereby monitoring the drive assembly.
  • Page 81 Chapter 7 Modem PCB Image processor PCB PATCH (IC40) MODEM IC DX336 CU PCB (IC1) Speaker driver (IC70) DC/DC Super Speaker capacitor SDRAM 32bit (IC1) F-7-4 MPU (IC1) Processes JBIG coding/decoding, controls combinations over lines, and controls SDRAM. PATCH (IC40) controls the various boards (NCU, speaker).

  • Page 82: System Construction

    Chapter 7 7.2 System Construction 7.2.1 System Configuration 0017-7471 i-SENSYS Fax-L3000IP - Pickup/ Other Accessories F-7-5 Host machine FXL-Cassette Feeder 8 option Handset Kit 10 (for US) option HANDSET REST FP + TEL 6 KIT LONG CORD (except for US, HK and SPL) HANDSET REST FP + TEL 3 KIT LONG CORD (for HK and SPL) Stamp Unit-C1 option...
  • Page 83 Chapter 7 - Boards F-7-6 Color Send Kit-M1 option (standard for LASER CLASS 830i) - Function table Function IMAGE CLASS 830i FAX-L3000IP i-SENSYS FAX-L3000IP Copy Std. Std. Std. Std. Std. Std. Std. Std. Std. Print Std. Std. Std. PC-Fax RemoteUI Network SEND Std.

  • Page 84: 2System Configuration

    Chapter 7 7.2.2 System Configuration 0017-7558 i-SENSYS Fax-L3000 - Pickup/ Other Accessories F-7-7 Host machine FXL-Cassette Feeder 8 option Handset Kit 10 (for US) option HANDSET REST FP + TEL 6 KIT LONG CORD (except for US, HK and SPL) HANDSET REST FP + TEL 3 KIT LONG CORD (for HK and SPL) Stamp Unit-C1 option...
  • Page 85 Chapter 7 - Boards F-7-8 UFR II LT Printer kit-X1 option - Function table Function IMAGE CLASS 810/ FAX-L3000/ i-SENSYS FAX-L3000 Copy Std. Std. Std. Print Option UFRII LT Printer kit-X1 PC-Fax RemoteUI Network SEND None Soft-counter None E-RDS None...

  • Page 86: Product Specifications

    Chapter 7 7.3 Product Specifications 7.3.1 Product Specifications 0017-7256 i-SENSYS Fax-L3000IP Copyboard stream reading, fixed reading Body desktop (ADF standard type) Light source type Image reading method CCD (CIS) Photosensitive medium OPC drum (24-mm dia.) Reproduction method indirect electrostatic Exposure method by laser light Charging method by roller contact...

  • Page 87: 2Product Specifications

    Chapter 7 Hard disk Image margin (leading edge) 5.0 -/+2.0 mm Image margin (trailing edge) 5.0 -/+2.0 mm Image margin (left/right) left: 2.5 -/+2.0 mm right: 0.5mm or more Image mode Yes (text, text/photo, photo) Energy save mode yes (manually ON/OFF; auto OFF after specific time, auto ON after fax reception/print data reception) Operating environment 15 to 30 deg C...
  • Page 88 Chapter 7 Reproduction ratio Automatic magnification: 50% to 200% (1% increments) Warm-up time 19.0 sec or less (A4/LTR) First copy time 13.0 sec or less (A4/LTR) First print time 9.0 sec or less (A4/LTR) Print speed A4: 22cpm, LTR: 23cpm Printing resolution 1200 dpi enhanced x 600 dpi Cassette paper size...

  • Page 89: 3Adf Specifications

    Chapter 7 Option FXL-Cassette Feeder 8 UFR II LT Printer kit-X1 Handset Kit Stamp Unit-C1 7.3.3 ADF Specifications 0016-7890 i-SENSYS Fax-L3000IP Original orientation Face-up Original position Center reference Original processing mode - Single-sided document processing - Double-sided document processing Original reading Stream reading Stack small size *1: 50 sheets or less...

  • Page 90: Function List

    Chapter 7 Printing resolution 600 dpi x 600 dpi Reduction for reception Fixed reduction (75%, 90%, 95%, 97%) Auto reduction (75 to 100%) FAX/TEL switching Yes (no voice response, no pseudo CI transmission) Answering machine connection Remote reception ID input method ID: 2 characters (default: 25) Auto dialing One-touch dialing: FAX80, TEL80...
  • Page 91 Chapter 7 T-7-2 Cassette Manual feed tray Duplex Size (W X L) A4 (For JP/KOR/EU/ASIA/OCE) 76 x 127 to 216 x 356 mm A4, LTR, LGL LGL/LTR/OFICIO/BOFI/M-OFI/ FOOLSCAP (for USA/CA/LA) 16K/A4(for CHN) Weight 64 to 90 g/m2 56 to 128 g/m2 64 to 90 g/m2 Quantity Max.
  • Page 92 Chapter 7...

  • Page 93: Chapter 8 Upgrading

    Chapter 8 Chapter 8 Upgrading 8.1 Upgrading 8.1.1 Overview of Upgrade 0017-5956 i-SENSYS Fax-L3000 / i-SENSYS Fax-L3000IP This machine and options can be upgraded by downloading system software programs from the personal computer (hereafter called as the PC) in which a service support tool (hereafter called SST) has been loaded.
  • Page 94 Chapter 8...
