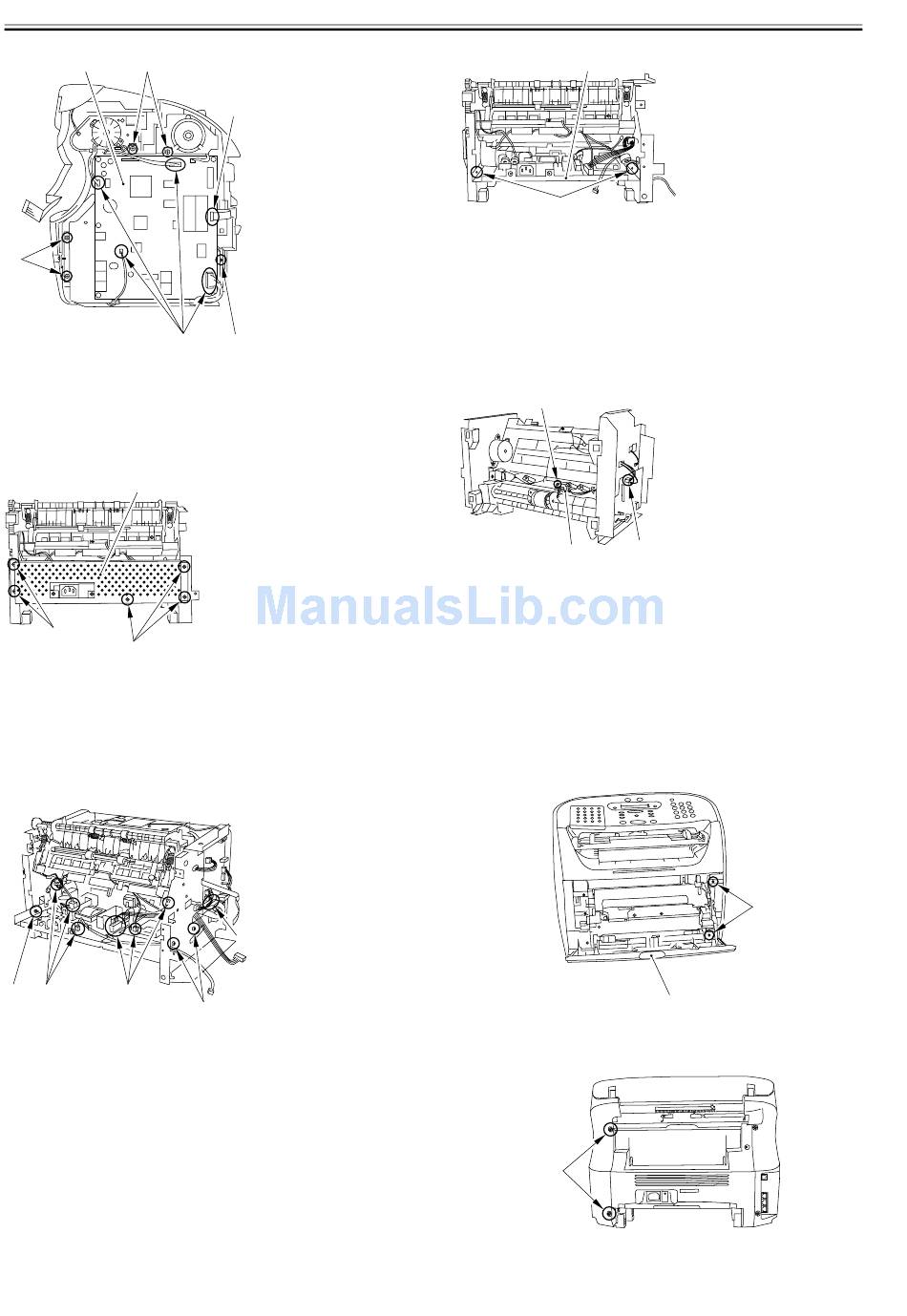

3.1.11.10 Removing the Power Supply Shield Plate

/ / FAX-L390 / / / FAX-L380S
1) Remove the five screws [1] to remove the power supply shield plate [2].
[2]
[1]
[1]
F-3-124

3.1.11.11 Removing the Power Supply Assembly

/ / FAX-L390 / / / FAX-L380S
1) Remove the three screws [1].
2) Remove the six connectors [2] as well as the flat cable [3] on the DCNT
board.
[1] [2] [2]
F-3-125
3) As you remove the bosses on both sides [1], lower the front part of the
power supply assembly [2]. Then pull it to remove the power supply
assembly.
3-18
[2]
[1] [3]
[3]
[1]
[1]
F-3-126

3.1.11.12 Removing the Top Sensor

/ / FAX-L390 / / / FAX-L380S
1) Place the main unit down on its front face (so that the interior of the main
unit is easily visible).
2) Remove the connector [1] on the DCNT board and take the cable off the
cable guide. (The external cover is omitted from the illustration.)
3) Remove the screw [2] and remove the top sensor [3].
[2]
0011-4753
F-3-127

3.1.12 Paper Delivery Sensor

3.1.12.1 Removing the Cassette

/ / FAX-L390 / / / FAX-L380S
1) Remove the cassette by holding the cassette handle.

3.1.12.2 Removing the Right Cover

0011-4754
/ / FAX-L380S
1) Open the front cover [1], and remove the two screws [2] on the front side.
2) Remove the two screws [1] on the back side.
[1]
3) Open the operation panel. As you disengage the claw [1], remove the right
[2]
[1]
[3]
[1]
F-3-128
F-3-129
0011-4755
0011-6257
0011-6258
[2]
