2MH/2MJ/2MK/2ML
5. Check or replace the MP paper feed
roller and refit all the removed parts.
Pivot
When refitting the MP paper feed roller,
be sure to align the paper feed roller
pivot with the slotted hole on the MPF
feed shaft.
When refitting the MP paper feed roller,
Slotted hole
be sure to align the MPF feed shaft
pivot with the slotted hole on the MP
MPF feed shaft
paper feed roller.
MP paper feed roller

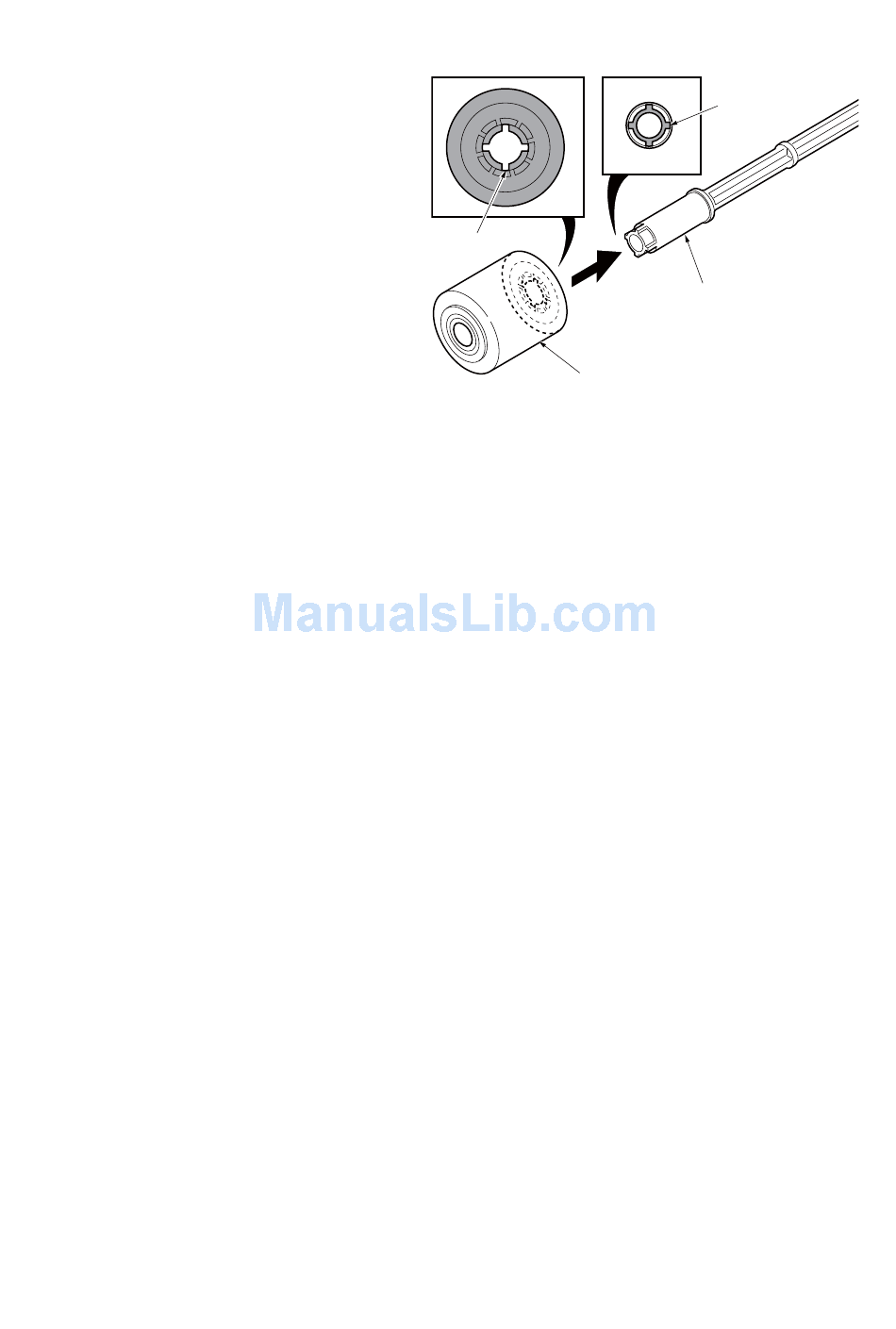

Figure 1-5-14
