Chapter 6: Testing
• the conductance value is below the reference
value
• the percentage of the reference is below the
values for WARN or FAIL
• the voltage level is below the LOW VOLTS value
7. After reviewing the first set of results, choose one of the
following based on the type of testing you are doing:
• If you are testing jars only, test the next set of jar
posts (if you have more than one set of posts), or
test the next jar in the string. Refer to Determining
a test pattern in this chapter.
• If you are testing jars and straps, follow the steps
in Attaching the cable to a strap in this chapter.
Attaching the cable to a strap
1. Remove the red clamp or probe from the red (+) termi-
nal.
2. Attach the red clamp or probe at the end of the strap
above the black (–) terminal on the next jar. Refer to Fig-
ure 6.

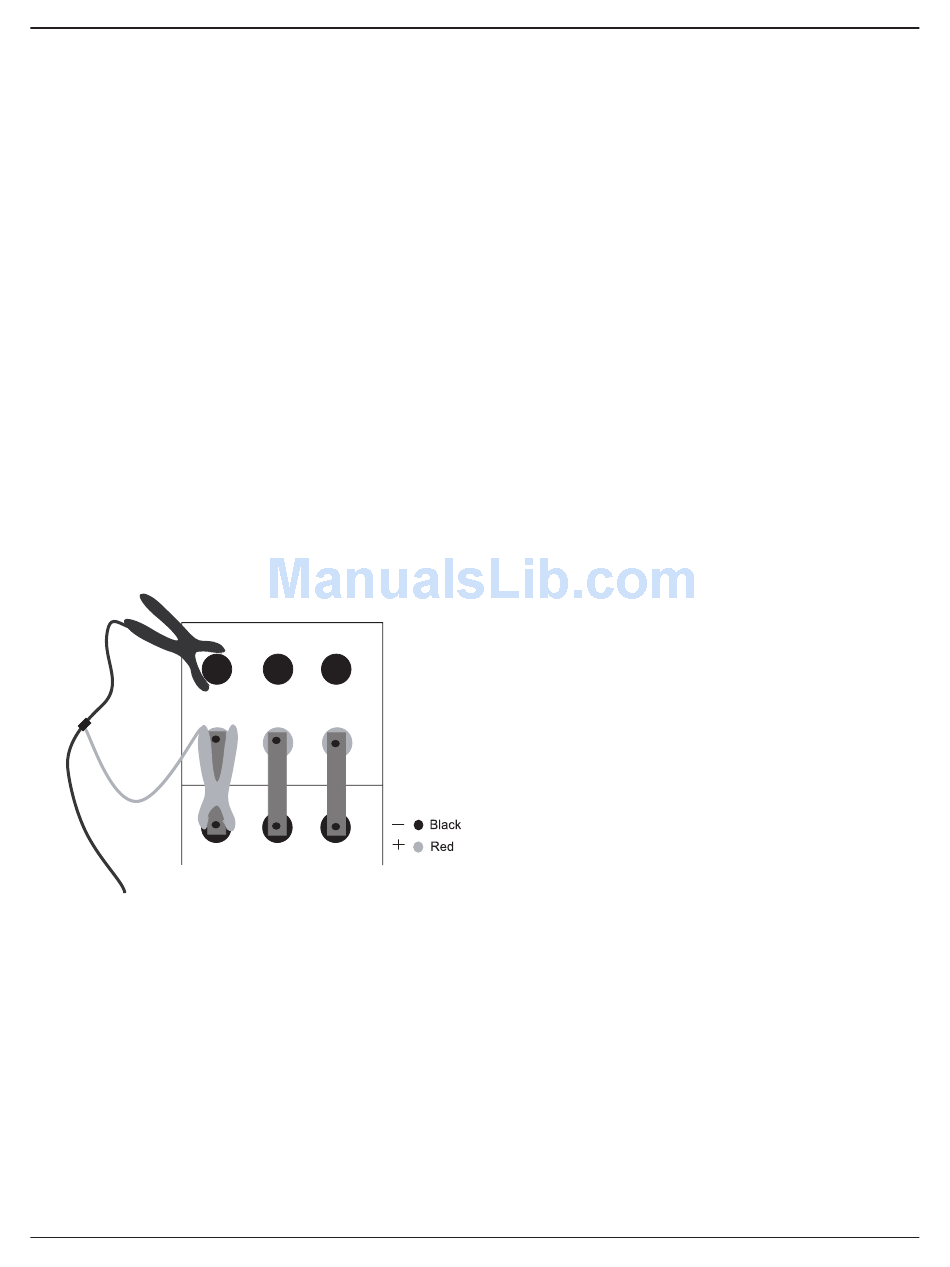

Figure 6. Attaching the cable to a strap
3. Choose one of the following based on the number of
posts the jars have:
• If the jar has more than one set of posts, attach the
black and red clamps or probes to the next set of
posts on the jar.
• If the jar has one set of posts, test the jar
connected to the jar you just tested. Follow the
steps in Attaching the cable to jar posts in this
chapter.
4. Repeat the steps in Attaching the cable to jar posts and
Attaching the cable to a strap in this chapter until you
are finished testing the string.
5. Refer to Chapter 7: Test results to view test results or Re-
testing jar posts or straps below to retest the set of jar
posts or straps.
Retesting jar posts or straps
Factors such as operating and site conditions, and
manufacturer changes, can affect test results. If you accept
results under these conditions, your maintenance routine
might not have an accurate history. To verify results, you can
retest a set of jar posts or straps right after you test them. Or
you can test the rest of the string before you retest certain
jar posts or straps.
Retesting after immediately testing the jar post
or strap
To retest a set of jar posts or a strap just after you
test it, press RETEST. The analyzer displays new test
results.
Retesting after testing the string
To retest a set of jar posts or a strap after you test the entire
string:
1. Remove the clamps/probes from the set of jar posts or
the strap.
2. Press and hold the
lyzer.
ARROW keys
3. Press the
in the Main Menu, and press
ARROW keys
4. Press the
ENTER
and press
ARROW keys
5. Press the
has the jar or strap you want to retest, and press
TER
.
ARROW keys
6. Press the
36
• •
Celltron ULTRA
POWER
button to turn on the ana-
to highlight the REPORTS icon
ENTER
.
to highlight the JAR DATA icon,
.
to scroll to the string file that
to scroll to the jar or strap you
EN-
