Midtronics CPX-900 WiFi User Manual
Battery & system analyzer
Hide thumbs
Also See for CPX-900 WiFi:
- Quick reference manual (2 pages) ,
- Quick reference manual (4 pages) ,
- User manual (24 pages)
Related Manuals for Midtronics CPX-900 WiFi
Summary of Contents for Midtronics CPX-900 WiFi

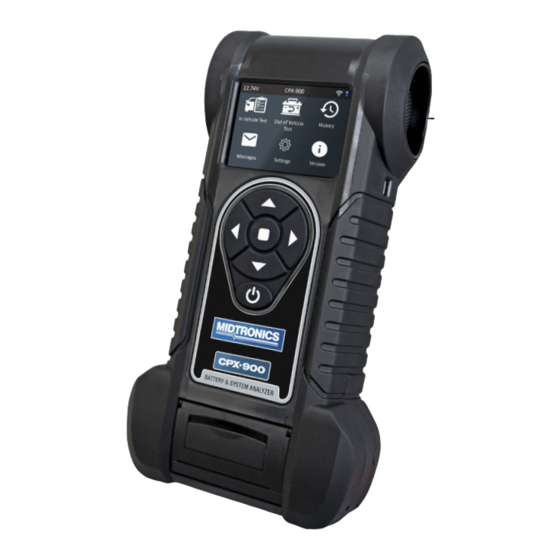

- Page 1 October 2018 CPX-900 167-000848EN-B CPX-900 WiFi Battery & System Analyzer For testing 6 and 12-volt automotive batteries and 12- and 24-volt charging systems User Manual support.cpx900.com www.midtronics.com...
- Page 2 blank page behind cover...
-
Page 3: Table Of Contents
Battery Test Battery Test Results 4 – History 5 – Messages Accessing Messages 6 – Settings Tool Display Date & Time Print Format Work Order Auto Test VIN Entry Version Shop Settings Admin Shop Info Network WiFi BMIS Settings www.midtronics.com... - Page 4 Handling Test Cables Storing Test Cables Printer Paper Replacing The Paper Roll Replacing The Internal Batteries Appendix A: Recommended Scanning Procedure Scanning Tips Appendix B:Test Results Decision Tables Battery Test Results Alternator Test Results Midtronics Inc. 7000 Monroe Street Willowbrook, IL 60527...
-
Page 5: Introduction
Consent to Collection and Use of Data: You agree that Midtronics, Inc. may collect, store, transmit, and use technical data and related information, including but not limited to technical information about this device, system and application software, and accessories, that is gathered periodically to facilitate the provision of product support, product improvements, product development, and other services related to use of this device. -
Page 6: Controls & Connections
The dots at the bottom or side of a menu or results screen indicate additional screens are available, Screen 1 Screen 1 Press or Press or Screen 2 Screen 2 Screen 3 Midtronics Inc. 7000 Monroe Street Willowbrook, IL 60527... -
Page 7: Main Menu Icons
Set up the tool's WiFi connection. Select Skip to configure WiFi at a later time. See "Network" in Chapter 6: Setup Automatic The tester searches for any detectable WiFi networks. Select a displayed network is then displayed on the tester screen. Manual Manually enter Security, SSID, Password, Encryption, and WEP Keys. www.midtronics.com... -
Page 8: Bmis Settings
1 – Introduction CPX-900 BMIS Settings At the User Credentials screen, enter the Midtronics-provided username, password, Client ID, and Location ID to access BMIS data management. Use to highlight the numbers on the displayed keyboard and press to select. Press Skip to move to the next step. -
Page 9: Testing Out-Of-Vehicle
A poor connection will prevent testing, and the tester will display a CHECK CONNECTION message. If the message reappears after reconnecting, clean the terminals and reconnect. Setting User Preferences Customize the analyzer by setting preferences in the Settings ( ) Menu, described in Chapter 6. www.midtronics.com... -
Page 10: In Vehicle Test
NOTE: Barcode types supported by the CPX-900 include A: 1D: Code 39, Code 128, UPC, Codabar, GS1-Limited; 2D: PDF417, QR Code: Model 2, and Data Matrix type barcodes. Refer to Appendix A for recommended VIN scanning procedures. Midtronics Inc. 7000 Monroe Street Willowbrook, IL 60527... - Page 11 Society of Automotive Engineers - European 100 to 3000 labeling of CCA International Electrotechnical Commission 100 to 1000 Europa-Norm 100 to 1700 Marine Cranking Amps: The amount of current 100 to 3000 a battery can provide at 32°F (0 ºC). Europa-Norm 100 to 1700 www.midtronics.com...
-
Page 12: Battery Test Results
Reserve Health The battery has sufficient reserve capacity to provide power for the electronics systems in the vehicle. Test Results - Battery Test NOTE: See Appendix B for complete parameter descriptions. Midtronics Inc. 7000 Monroe Street Willowbrook, IL 60527... -
Page 13: System Test
See Appendix B for complete parameter descriptions. Select Send Results displayed at the bottom of the tester screen to send the test results to the optional built-in printer or via email. Select Done to return to the Main Menu. Email Printer www.midtronics.com... -
Page 14: Out Of Vehicle Test
Battery Test Setup - Edit the displayed battery information. Select Start to begin the testing process. Application Automotive Group 31 4D/8D Battery Post Top Post Side Post Battery Type Flooded AGM Spiral Battery Units Battery Rating Hold down or to increase scrolling speed. Midtronics Inc. 7000 Monroe Street Willowbrook, IL 60527... -
Page 15: Battery Test Results
Temperature - when prompted, hold the tester temperature sensor 6 to 12 inches over the top of the battery being tested. Temp Sensor Select Capture to lock in the live temperature reading. Battery Test Results NOTE: See Battery Test Results in Chapter 2 - In Vehicle Test for test result screens and descriptions. www.midtronics.com... -
Page 16: History
NOTE: See Battery Test Results in Chapter 2 - In Vehicle Test for test result screens and descriptions. To send the test results to a configured printer or via email select Send Results. To return to the Home Screen, select Done to the Main Menu. Midtronics Inc. 7000 Monroe Street Willowbrook, IL 60527... -
Page 17: Messages
Select to return to the previous screen or to return to the Main Menu. Accessing Messages A number is displayed next to the Messages icon when the analyzer has received any critical messages. Unread Critical Messages Read Critical Messages www.midtronics.com... -
Page 18: Settings
AM/PM setting. Use or to advance left or right and move to Cancel or Next. Select Next to save the time or Cancel to exit without saving. Cancel Next Midtronics Inc. 7000 Monroe Street Willowbrook, IL 60527... -
Page 19: Print Format
A checked box indicates the Admin Enable function is enabled. Admin Use to select a four (4) digit Admin PIN. Select OK to save the PIN or Cancel to exit without saving. Use to return to the Shop Settings menu. www.midtronics.com... -
Page 20: Shop Info
Manual Manually enter Security, SSID, Password, Encryption, and WEP Keys. Select Connect. BMIS Settings Username Provided by Midtronics Password Provided by Midtronics Client ID Provided by Midtronics Location ID Provided by Midtronics Midtronics Inc. 7000 Monroe Street Willowbrook, IL 60527... -
Page 21: Maintenance & Troubleshooting
If an inspection or a change in test results indicate that the test cables need to be replaced, call Midtronics Customer Service at 1-800-776-1995. www.midtronics.com... -
Page 22: Printer Paper
The internal printer is shipped with a roll of 2¼" wide by 1 " in diameter thermal printing paper installed. Replacement rolls are available through Midtronics or online office supply websites. NOTE: Due to production variances some paper roll diameters may be too large. -
Page 23: Replacing The Internal Batteries
Lift the door at the tab and place it aside. Remove the discharged batteries. Insert new batteries as shown. Make sure the positive and negative terminals are positioned correctly. Reposition the door on the battery compartment. Reinsert and tighten the screw. www.midtronics.com... -
Page 24: Appendix A: Recommended Scanning Procedure
VIN barcode with a cloth or your finger remove any surface dirt. • Lighting/Glare: If sunlight is shining directly onto the VIN barcode, try pivoting the scanner up or down slightly to reduce any glare. Midtronics Inc. 7000 Monroe Street Willowbrook, IL 60527... -
Page 25: Appendix B:test Results Decision Tables
Recharge Battery Replace Good Battery Battery Replace Replace Battery Battery Replace Unknown Battery Reserve Battery fails to meet industry accepted standards Badcell Good Battery Replace Short Badcell Unknown Replace Short Reserve Badcell Short Replace www.midtronics.com... -
Page 26: Alternator Test Results
High Output The normal high limit of a typical automotive regulator is 14.5 volts +/–0.5. Refer to the manufacturer specifications for the correct limit, which may vary by vehicle type. Midtronics Inc. 7000 Monroe Street Willowbrook, IL 60527... - Page 27 Appendix A: Recommended Scanning Procedure CPX-900 www.midtronics.com...
- Page 28 Midtronics products are warranted to be free of defects in materials and workmanship for a period of one (1) year from date of purchase. Midtronics will, at our option, repair or replace the unit with a re-manufactured unit. This limited warranty applies only to Midtronics products, and does not cover any other equipment, static damage, water damage, overvoltage damage, dropping the unit, or damage resulting from extraneous causes including owner misuse.
