Midtronics Celltron ULTRA Instruction Manual page 43

Celltron ULTRA
NOTE: You can retest any jar or strap displayed in JAR DATA.
Refer to Retesting after testing the string in Chapter
6.

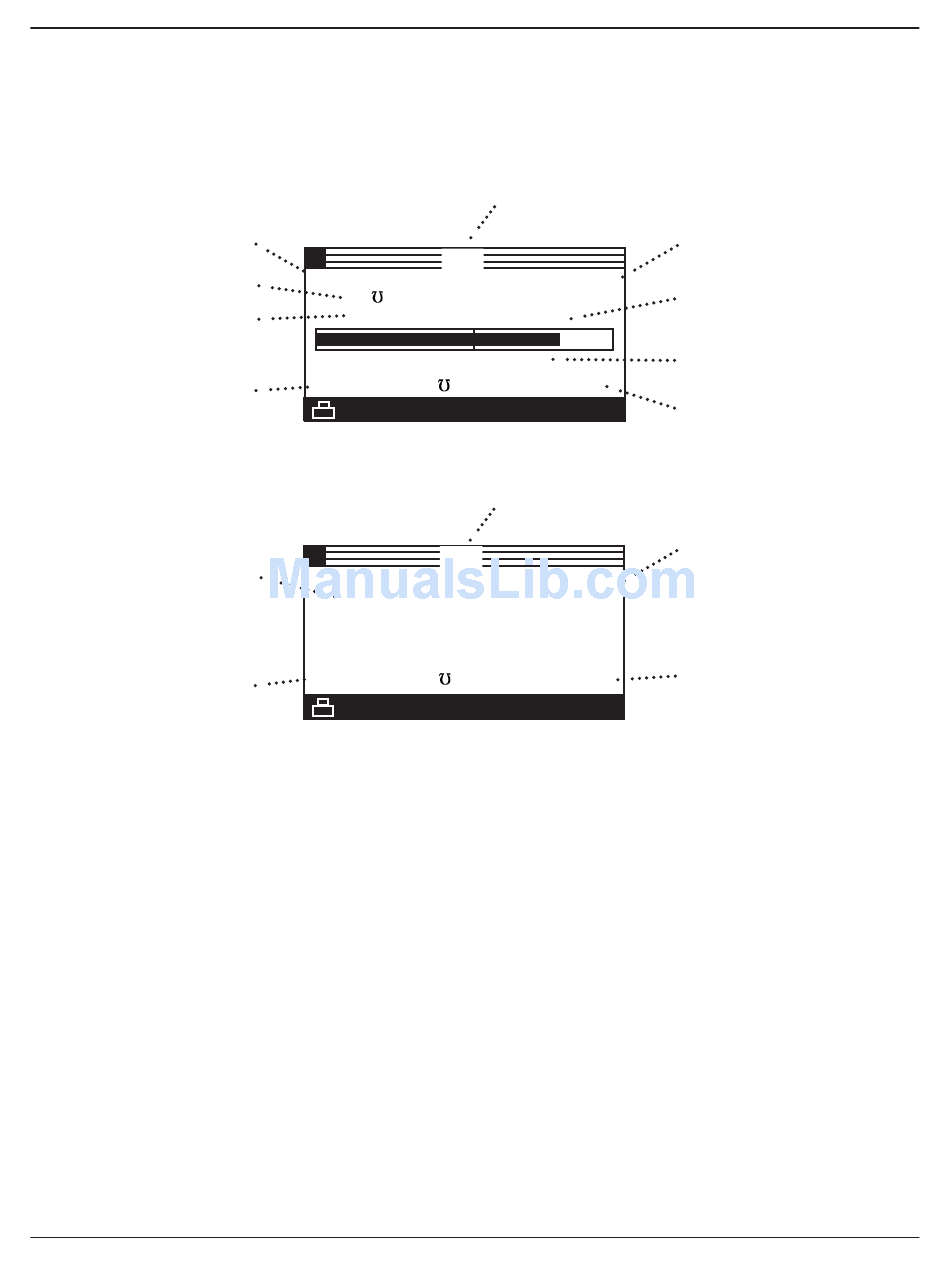

Decision on jar
condition
** Jar mhos/siemens
Jar percentage of
ref. value
Ref. value selected in
BATTERY SETUP
Strap resistance
in microhms
Reference
value selected
in BATTERY SETUP
J1
G: GOOD
900
90%
0% 60%
1000 TEMP:
REF:
PRINT
1
S1
G:
6
µΩ
1000 TEMP:
REF:
PRINT
43
•
Chapter 7: Test results and reports
NOTE:
** The analyzer displays and prints dashes
( _ _ _ _ _ ) if you selected VOLTS ONLY in BATTERY
SETUP, or if you selected VOLTS THEN CONDUC-
TANCE, but did not complete the conductance
measurement.
First jar tested
VOLTS: GOOD
2.263VDC
0.0A AC
25 °C
'C' END
First strap tested
VOLTS: GOOD
2.263VDC
25 °C
'C' END
•
Jar is above low voltage
warning threshold
Estimated AC current
in the battery string
Jar FAIL threshold of
60% of the ref. value
Temperature selected
in BATTERY SETUP
Jar is above low
voltage warning
threshold
Temperature selected
in BATTERY SETUP
