Changing The Engine Oil - Yamaha 2009 XP500Y TMAX Service Manual

EAS20780

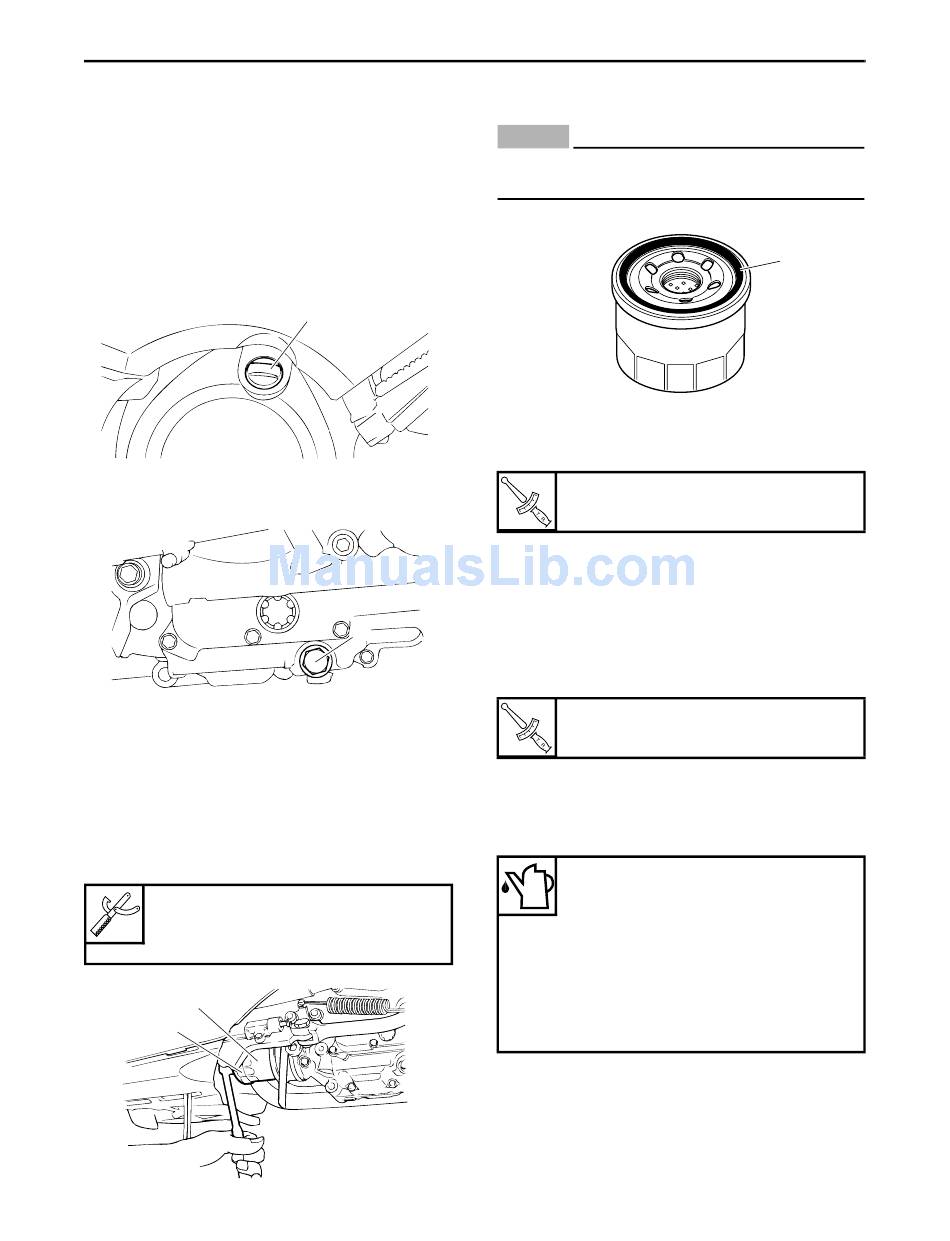

CHANGING THE ENGINE OIL

1. Start the engine, warm it up for several min-
utes, and then turn it off.
2. Place a container under the engine oil drain
bolt.
3. Remove:
• Engine oil filler cap "1"
• Engine oil drain bolt "2"
(along with the gasket)
4. Drain:
• Engine oil
(completely from the crankcase)
5. If the oil filter cartridge is also to be replaced,
perform the following procedure.
M MMM M MMM M M MMM M M MMM M
a. Remove the oil filter cartridge "1" with an oil
filter wrench "2".
Oil filter wrench
90890-01469
YM-01469
1
2
1
2
M MMM M M MMM M MMM
3-12
b. Lubricate the O-ring "3" of the new oil filter
cartridge with a thin coat of engine oil.
ECA13390
NOTICE
Make sure the O-ring "3" is positioned cor-
rectly in the groove of the oil filter cartridge.
c. Tighten the new oil filter cartridge to specifi-
cation with an oil filter wrench.
Oil filter cartridge
17 Nm (1.7 m·kg, 12 ft·lb)
L LLL L LLL L L LLL L L LLL L
6. Check:
• Engine oil drain bolt gasket
Damage → Replace.
7. Install:
• Engine oil drain bolt
(along with the gasket)
Engine oil drain bolt
43 Nm (4.3 m·kg, 31 ft·lb)
8. Fill:
• Crankcase
(with the specified amount of the recom-
mended engine oil)
Engine oil quantity
Total amount
3.60 L (3.81 US qt) (3.17 Imp.qt)
Without oil filter cartridge re-
placement
2.80 L (2.96 US qt) (2.46 Imp.qt)
With oil filter cartridge replace-
ment
2.90 L (3.07 US qt) (2.55 Imp.qt)
9. Install:
• Engine oil filler cap
ENGINE
3
L LLL L L LLL L LLL
