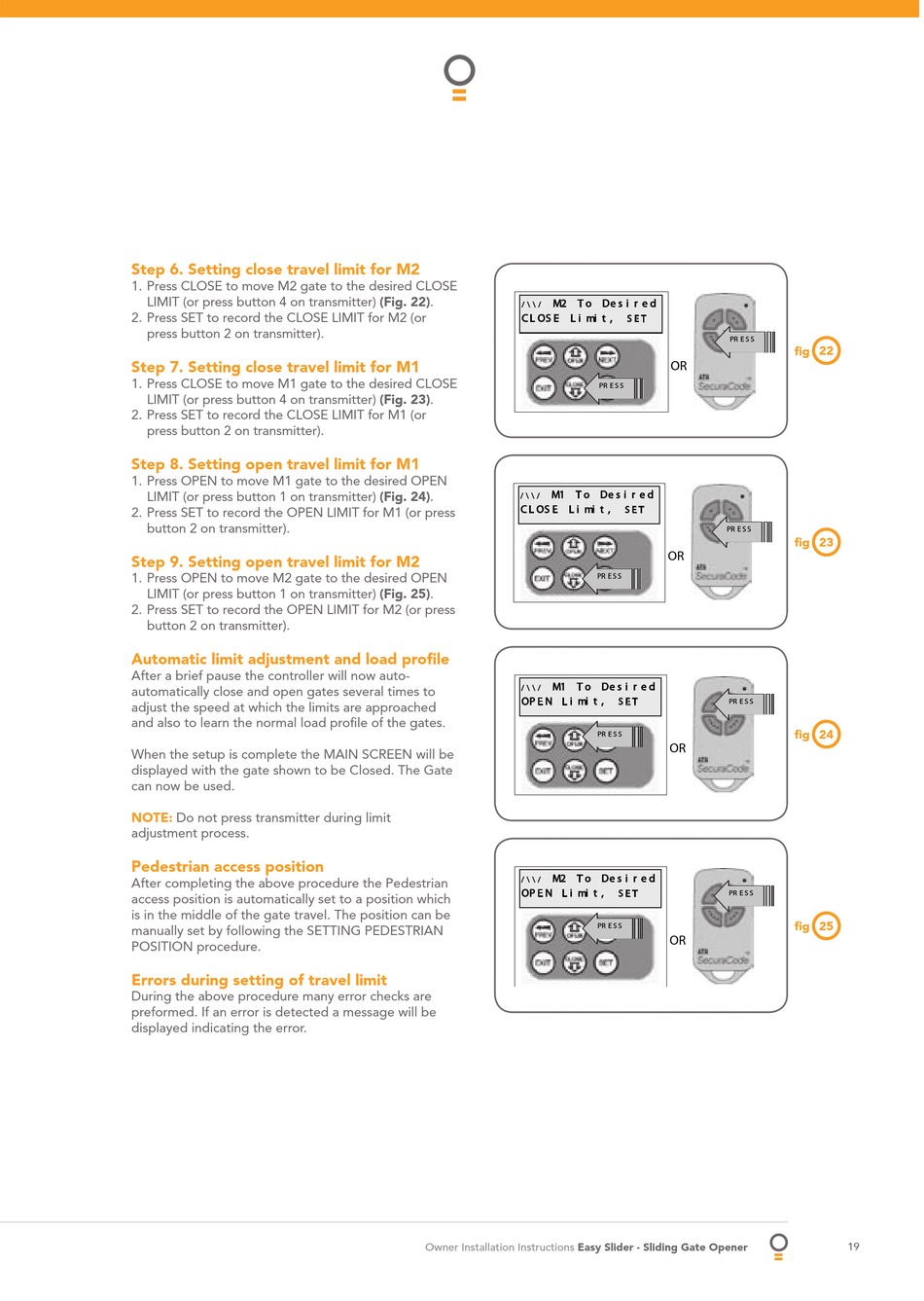

Step 6. Setting close travel limit for M2
1. Press CLOSE to move M2 gate to the desired CLOSE
LIMIT (or press button 4 on transmitter) (Fig. 22).
2. Press SET to record the CLOSE LIMIT for M2 (or
press button 2 on transmitter).
Step 7. Setting close travel limit for M1
1. Press CLOSE to move M1 gate to the desired CLOSE
LIMIT (or press button 4 on transmitter) (Fig. 23).
2. Press SET to record the CLOSE LIMIT for M1 (or
press button 2 on transmitter).
Step 8. Setting open travel limit for M1
1. Press OPEN to move M1 gate to the desired OPEN
LIMIT (or press button 1 on transmitter) (Fig. 24).
2. Press SET to record the OPEN LIMIT for M1 (or press
button 2 on transmitter).
Step 9. Setting open travel limit for M2
1. Press OPEN to move M2 gate to the desired OPEN
LIMIT (or press button 1 on transmitter) (Fig. 25).
2. Press SET to record the OPEN LIMIT for M2 (or press
button 2 on transmitter).
Automatic limit adjustment and load profile
After a brief pause the controller will now auto-
automatically close and open gates several times to
adjust the speed at which the limits are approached
and also to learn the normal load profile of the gates.
When the setup is complete the MAIN SCREEN will be
displayed with the gate shown to be Closed. The Gate
can now be used.
NOTE:
Do not press transmitter during limit
adjustment process.
Pedestrian access position
After completing the above procedure the Pedestrian
access position is automatically set to a position which
is in the middle of the gate travel. The position can be
manually set by following the SETTING PEDESTRIAN
POSITION procedure.
Errors during setting of travel limit
During the above procedure many error checks are
preformed. If an error is detected a message will be
displayed indicating the error.
� � � � � � � � � � �
� � � �
� � � � � � � � � � �
� � � � � � � � � � �
� � � �
� � � � � � � � � � �
�� � � �
� � � � � � � � � � �
� � � �
� � � � � � � � � �
�� � � �
� � � � � � � � � � �
� � � �
� � � � � � � � � �
�� � � �
Owner Installation Instructions
Easy Slider - Sliding Gate Opener
� � �
�� � � �
��
�� � � �
� � �
�� � � �
��
� � �
�� � � �
��
� � �
�� � � �
��
fig
22
fig
23
fig
24
25
fig
19
