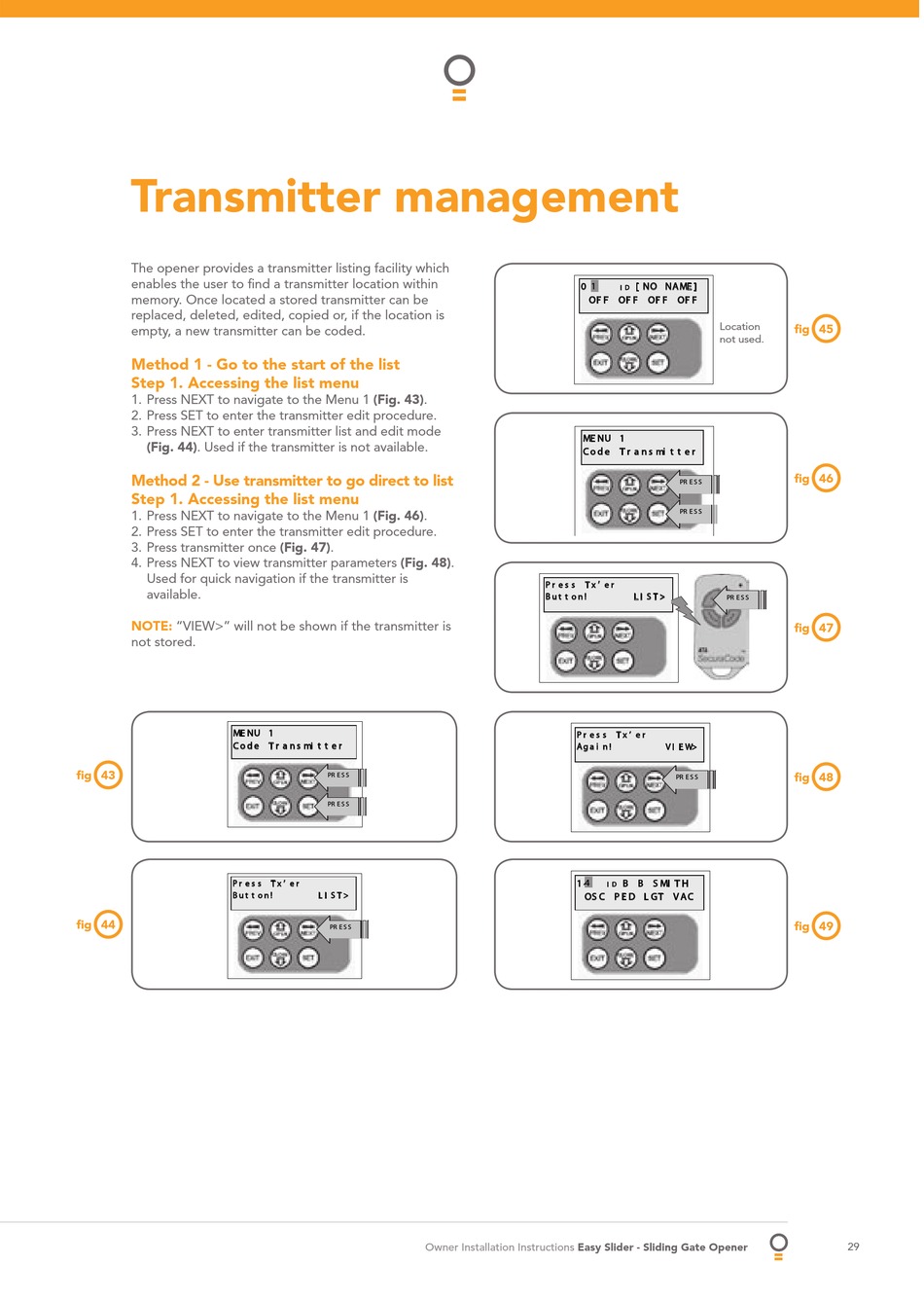

Transmitter management

The opener provides a transmitter listing facility which
enables the user to find a transmitter location within
memory. Once located a stored transmitter can be
replaced, deleted, edited, copied or, if the location is
empty, a new transmitter can be coded.
Method 1 - Go to the start of the list
Step 1. Accessing the list menu
1. Press NEXT to navigate to the Menu 1 (Fig. 43).
2. Press SET to enter the transmitter edit procedure.
3. Press NEXT to enter transmitter list and edit mode
(Fig. 44). Used if the transmitter is not available.
Method 2 - Use transmitter to go direct to list
Step 1. Accessing the list menu
1. Press NEXT to navigate to the Menu 1 (Fig. 46).
2. Press SET to enter the transmitter edit procedure.
3. Press transmitter once (Fig. 47).
4. Press NEXT to view transmitter parameters (Fig. 48).
Used for quick navigation if the transmitter is
available.
NOTE: "VIEW>" will not be shown if the transmitter is
not stored.
� � � � �
� � � � � � � � � � � � � � �
fig 43
� � � � �
� � � � � � �
fig 44
�� � � �
�� � � �
� � � � �
� � � � �
�� � � �
Owner Installation Instructions
� � � � � � � � � �
� �
� � � � � � � � � � � �
� � � � �
� � � � � � � � � � � � � � �
�� � � �
�� � � �
� � � � � � � � � �
� � � � � � � � � � � �
� � � � � � � � � �
� � � � � � � � � � �
�� � � �
�
� � � � � � � � �
� �
� � � � � � � � � � � �
Easy Slider - Sliding Gate Opener
Location
fig 45
not used.
fig 46
�� � � �
fig 47
fig 48
fig 49
