Coding transmitter

ID/SN display indicator
Store number
���

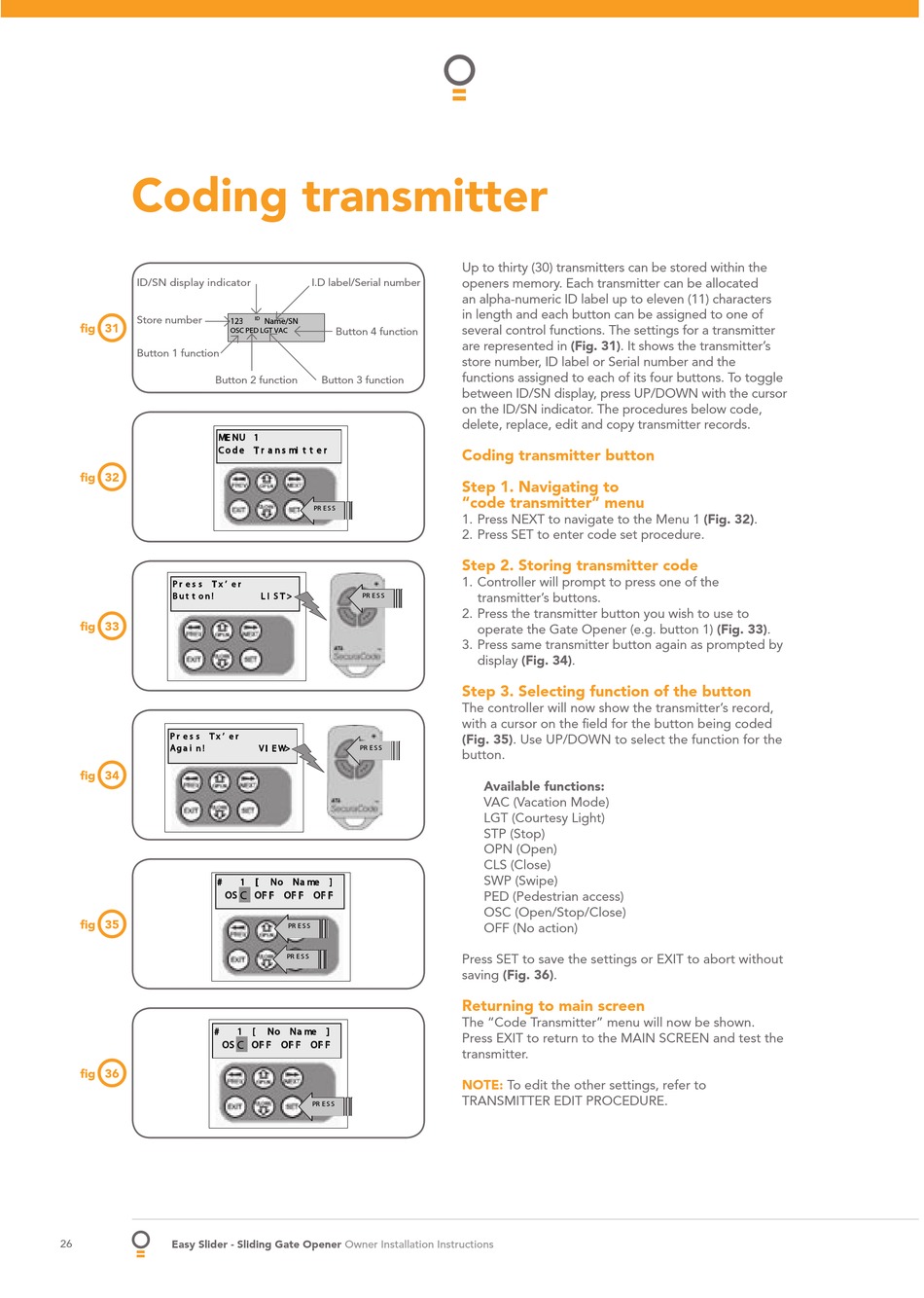

fig 31
��� ��� ��� ���
Button 1 function
Button 2 function
� � � � �
� � � � � � � � � � � � � � �
fig 32
� � � � � � � � � �
� � � � � � �
fig 33
� � � � � � � � � �
� � � � � �
fig 34
�
� � � � � � � � � � � �
fig 35
�
� � � � � � � � � � � �
fig 36
26 Easy Slider - Sliding Gate Opener
I.D label/Serial number
��
�������
Button 4 function
Button 3 function
�� � � �
� � � � �
�� � � �
� � � � �
�� � � �
� � � � � � � � �
�
�� � � �
�� � � �
� � � � � � � � �
�
�� � � �
Owner Installation Instructions
Up to thirty (30) transmitters can be stored within the
openers memory. Each transmitter can be allocated
an alpha-numeric ID label up to eleven (11) characters
in length and each button can be assigned to one of
several control functions. The settings for a transmitter
are represented in (Fig. 31). It shows the transmitter's
store number, ID label or Serial number and the
functions assigned to each of its four buttons. To toggle
between ID/SN display, press UP/DOWN with the cursor
on the ID/SN indicator. The procedures below code,
delete, replace, edit and copy transmitter records.
Coding transmitter button
Step 1. Navigating to
"code transmitter" menu
1. Press NEXT to navigate to the Menu 1 (Fig. 32).
2. Press SET to enter code set procedure.
Step 2. Storing transmitter code
1. Controller will prompt to press one of the
transmitter's buttons.
2. Press the transmitter button you wish to use to
operate the Gate Opener (e.g. button 1) (Fig. 33).
3. Press same transmitter button again as prompted by
display (Fig. 34).
Step 3. Selecting function of the button
The controller will now show the transmitter's record,
with a cursor on the field for the button being coded
(Fig. 35). Use UP/DOWN to select the function for the
button.
Available functions:
VAC (Vacation Mode)
LGT (Courtesy Light)
STP (Stop)
OPN (Open)
CLS (Close)
SWP (Swipe)
PED (Pedestrian access)
OSC (Open/Stop/Close)
OFF (No action)
Press SET to save the settings or EXIT to abort without
saving (Fig. 36).
Returning to main screen
The "Code Transmitter" menu will now be shown.
Press EXIT to return to the MAIN SCREEN and test the
transmitter.
NOTE: To edit the other settings, refer to
TRANSMITTER EDIT PROCEDURE.
