LAN 100 Mbps Interface (ETHERNET)
4.1.1 Characteristics
•
100Base-TX,
•
Full duplex,
•
Auto-negotiation.
•
Auto MDI/MDX
The Ethernet interface of the ONE100 only supports the 100 Mbps full-
duplex operations in auto-sense mode. If connected to devices in 10 mbps
or half-duplex, the ONE100 interface will not be connected. The problem can
appear mostly with devices forced in such mode or with old Ethernet hub.

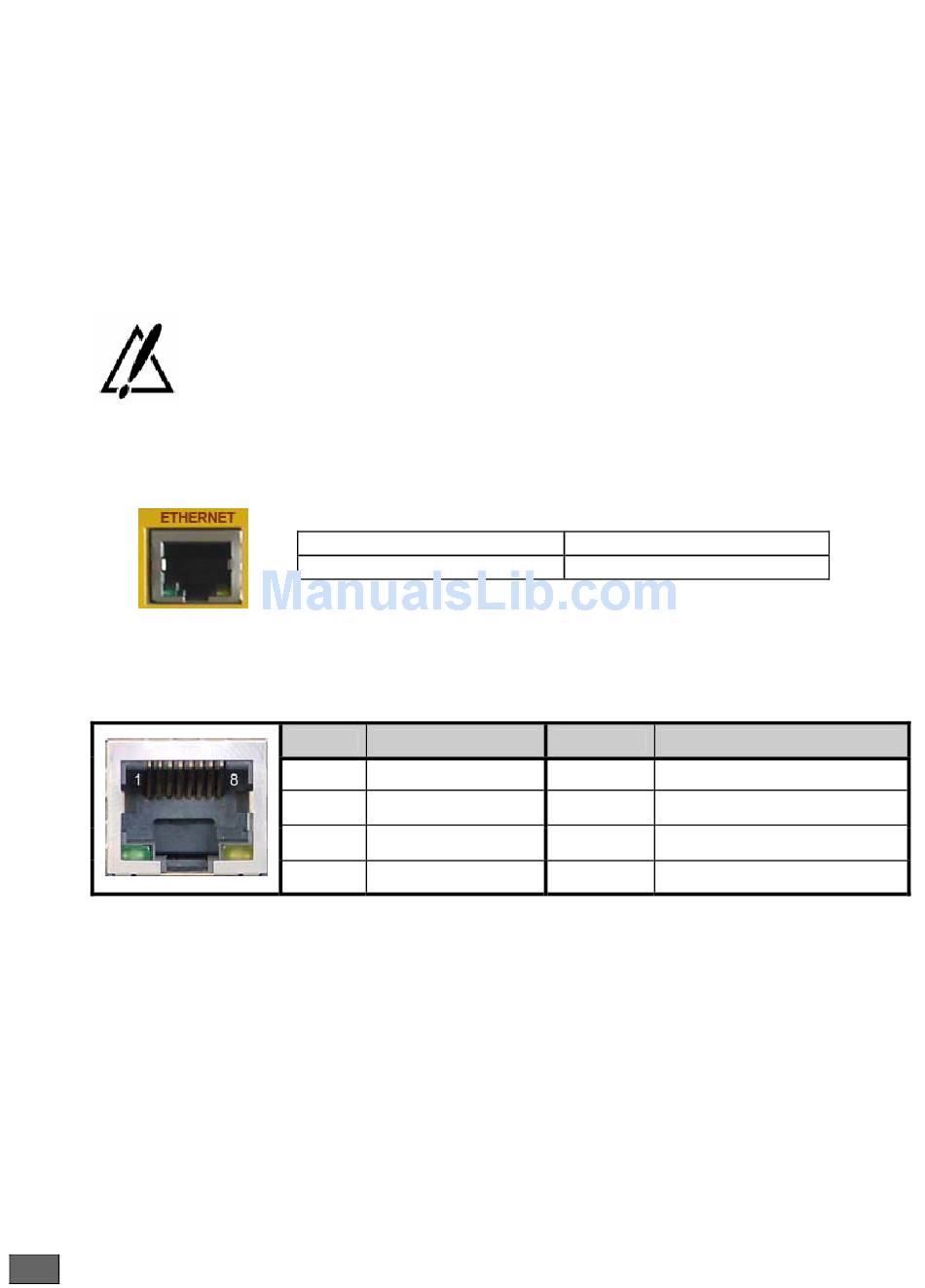

4.1.2 Meaning of LED Colors
4.1.3 Connector Pinout
RJ45 Connector:
4.1.4 Cables
A standard Ethernet cable is needed (shielded UTP Cat. 5).
23
Lit green Led
Blinking yellow Led
Pin Signal
1 TD (+)
2 TD (-)
3 RD (+)
4 NC
ONE100 - Installation Manual
Link active
Traffic in progress
Pin Signal
5 NC
6 RD (-)
7 NC
8 NC
