3.3.3 Configuration with 8 FXS/1 FXO
The interface marking is indicated in bold and between bracket.
All the connectors are located on the rear panel:
•
1 ADSL 2/2 + access (RJ11) (ADSL),
•
1 console port (RJ45) (CONSOLE),
•
Optional, 1 LAN 100 Mbps access (RJ45) (ETHERNET),
•
4 communication ports (RJ45) marked (SWITCH – E0-0/0 - E3-0/3),
•
8 analog telephone accesses to connect telephone (FXS interface) (RJ45),
marked (FXS – L0-5/0 – L7-5/7),
•
1 analog telephone access to connect telephone line (FXO interface) (RJ45),
marked (FXO – L8-5/8),
•
2 connectors for WLAN antenna,
•
Input for the external power supply connector (DC input jack, 12V-1, 7A).
Depending of the ordered configuration of the system, the rear panel may
change.
17

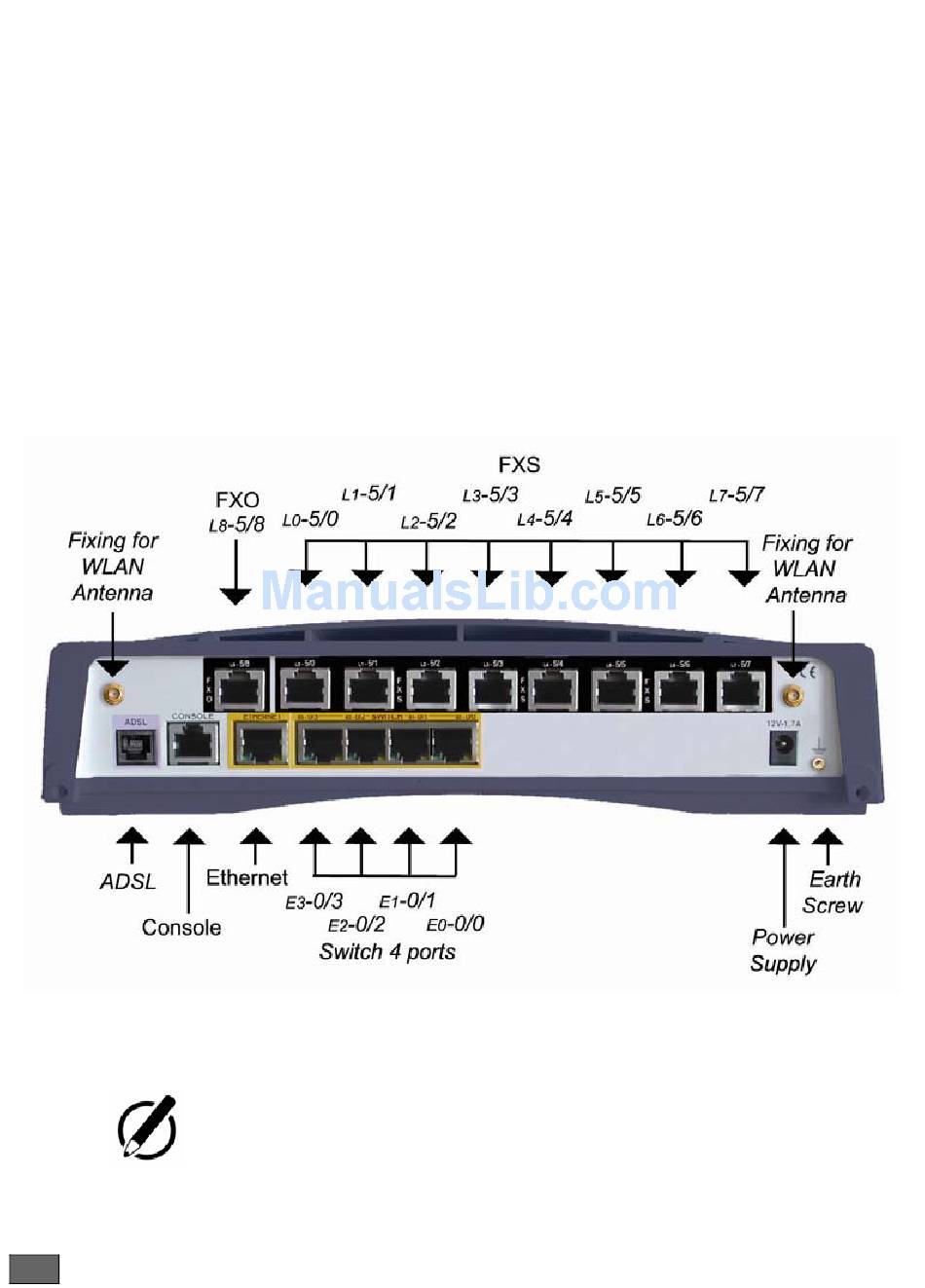

Figure 4. Rear panel with 8 FXS, 1 FXO configuration
