PSTN Modem Interface (PSTN)
4.5.1
Characteristics
The router can be equipped with a daughter board delivering an access to the PSTN
via an integrated analog modem.
•
Compatible with V.32, V.32bis, V.34, V.90 and V.92,
•
Compliant with TBR21.
4.5.2

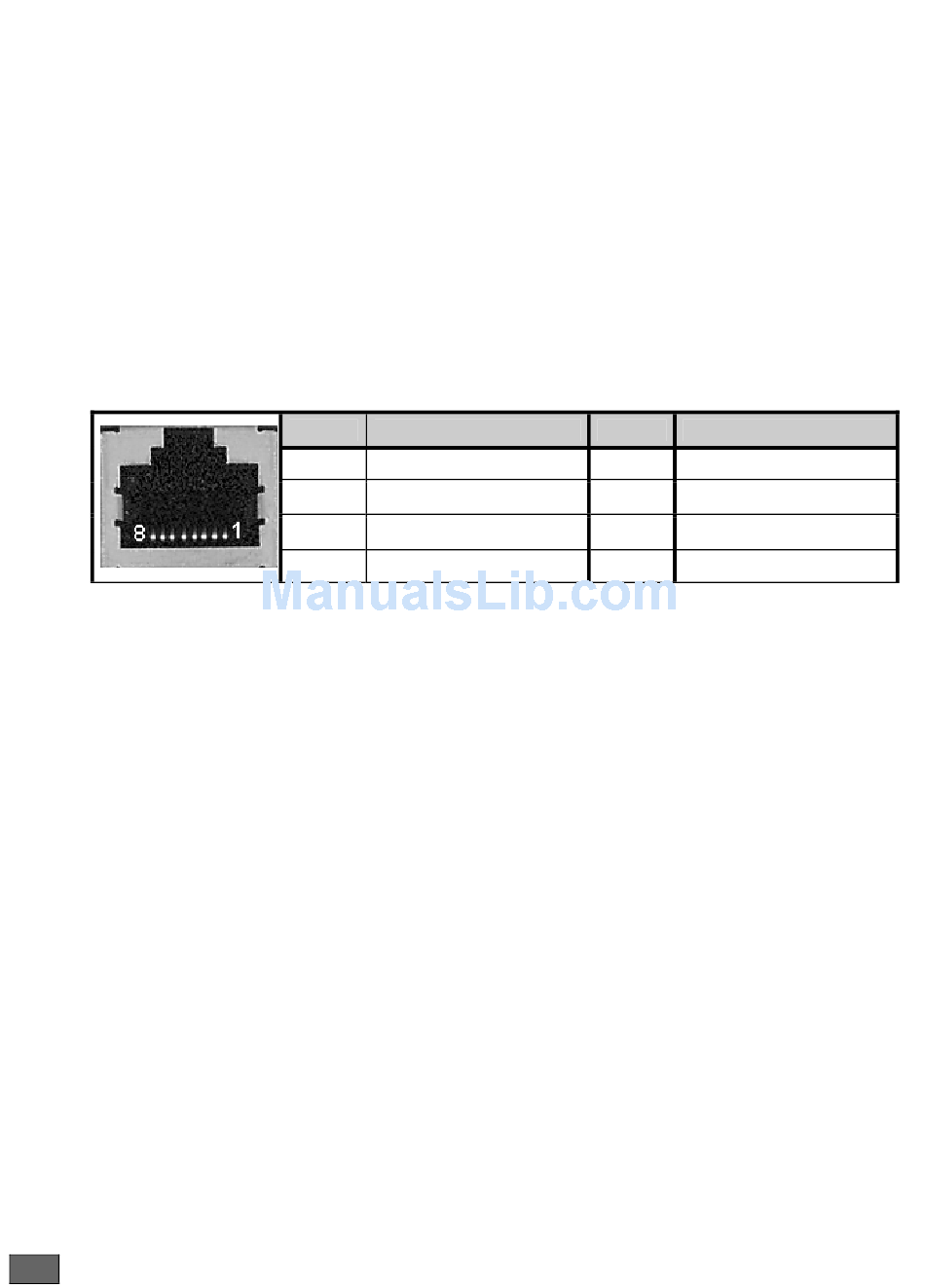

Connector Pinout
RJ45 Connector:
4.5.3
Cables
The cable is a standard telephone cord with one twisted pair.
27
Pin
Signal
1
NC
2
NC
3
NC
4
RING
ONE100 - Installation Manual
Pin
Signal
5
TIP
6
NC
7
NC
8
NC
