3.3.6 Configuration with 4 + 4 BRI
The interface marking is indicated in bold and between bracket.
All the connectors are located on the rear panel:
•
1 ADSL 2/2+ access (RJ11) (ADSL),
•
1 console port (RJ45) (CONSOLE),
•
4 Ethernet ports (RJ45) (SWITCH – E0-0/0 - E3-0/3),
•
4 ISDN S0/T0 (RJ45) (ISDN BRI – L0-5/0 - L3-5/3),
4 ISDN S0/T0 (RJ45) (ISDN BRI – L4-5/4 – L7-5/7),
•
2 connectors for WLAN antenna,
•
Input for the external power supply connector (DC input jack, 12V-1, 7A).
Depending of the ordered configuration of the system, the rear panel may
change.
20

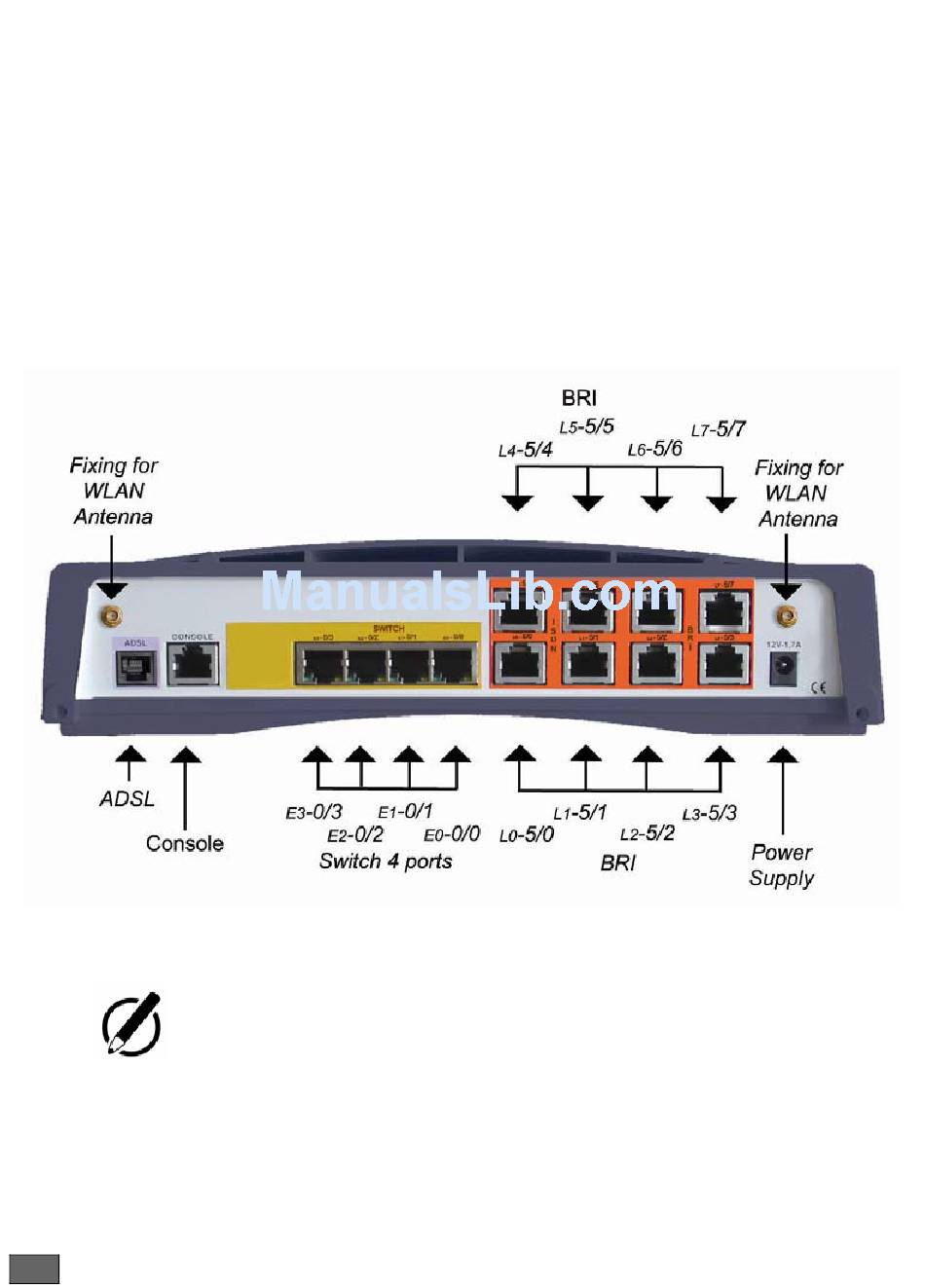

Figure 7. Rear panel with 4 + 4 BRI
