3.4
Motherboard
The motherboard provides:
•
Router resources (CPU, DSP, memory RAM and Flash),
•
Standard router interfaces (console interface, Fast Ethernet, and LEDs),
•
Optional connector for WLAN interface,
•
The connector intended to receive motherboards,
•
Jumpers enabling features configuration of interfaces BRI and motherboard.
Depending on the ordered configuration of the system, the composition of
the device may change.
21

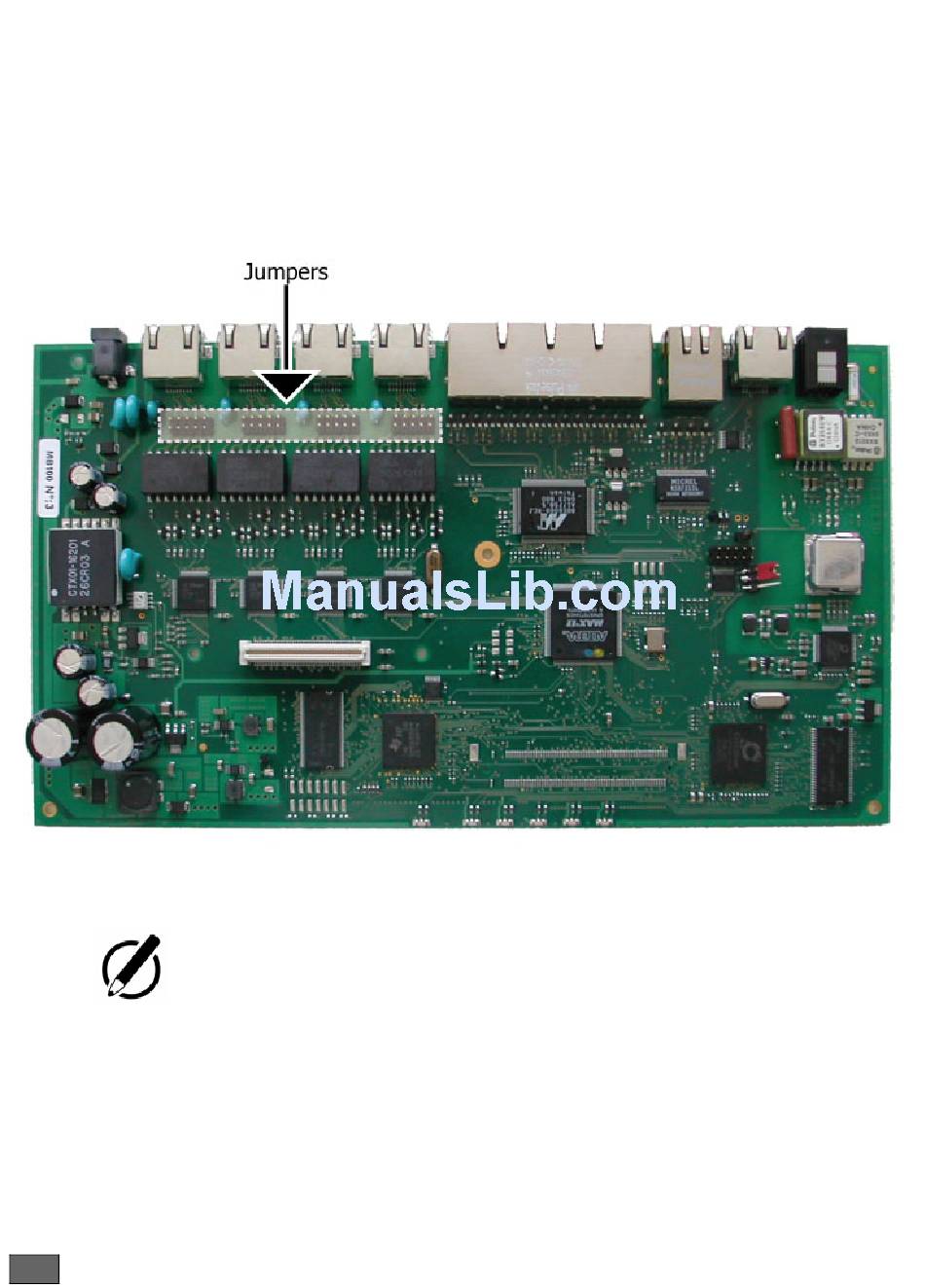

Figure 8.
ONE100 - Installation Manual
Motherboard
