4.4

Ethernet Switch Interface (SWITCH)

4.4.1 Characteristics
The switch Ethernet function offers 4 ports Ethernet. Every port can be switched
and/or routed.
•
10/100 Mbits/s,
•
Half or full duplex,
•
Auto-negotiation,
•
Auto MDI/MDIX.
4.4.2
Meaning of LED Colors

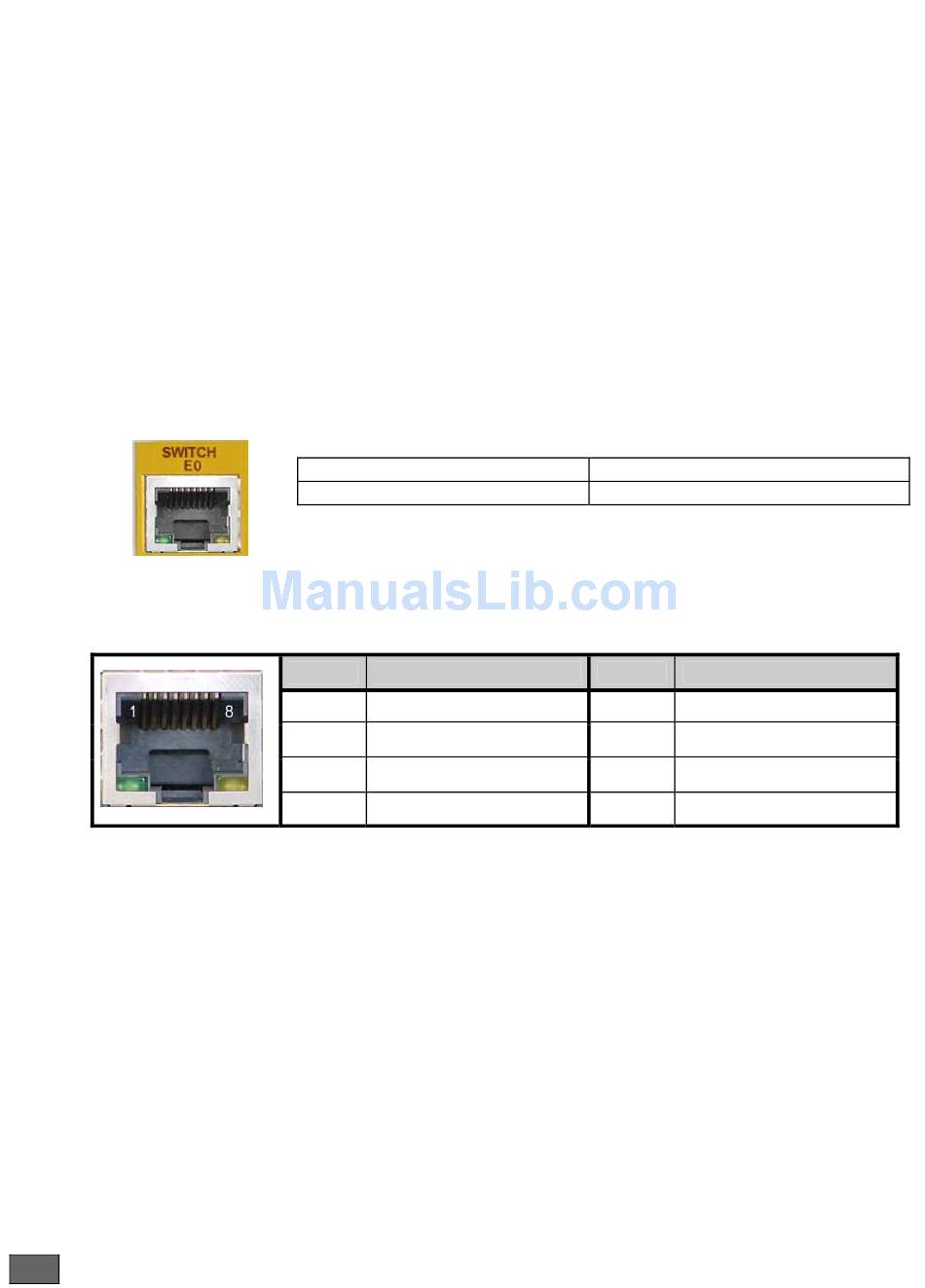

4.4.3 Connector Pinout
RJ45 Connector:
4.4.4 Cables
The cables are shielded, crossover/straight cables with 4 twisted pairs. The switch
supports autodetection of crossover/straight cable ('auto-MDI/MDI-X detection'); the
transmission pairs are (1-2) and receive pairs are (3-6).
26
Green LED Lit
Blinking yellow LED
Pin Signal
1 TD (+)
2 TD (-)
3 RD (+)
4 NC
ONE100 - Installation Manual
Link active
Traffic in progress
Pin Signal
5 NC
6 RD (-)
7 NC
8 NC
