3.3.5 Configuration with 1 FXS + 1 FXO + 1 ISDN
The interface marking is indicated in bold and between bracket.
All the connectors are located on the rear panel:
•
1 ADSL 2/2+ access (RJ11) (ADSL),
•
1 console port (RJ45) (CONSOLE),
•
1 optional LAN 100 Mbps (RJ45) (ETHERNET),
•
4 Ethernet ports (RJ45) (SWITCH – E0-0/0 - E3-0/3),
•
1 backup ISDN access (ISDN – L0-5/0),
•
4 analog telephone interfaces to connect telephones (FXS interface) (RJ45),
(FXS – L1-5/1 – L4-5/4),
1 analog telephone access to connect telephone line (FXO interface) (RJ45),
marked (FXO – L5-5/5),
•
1 modem access PSTN (RJ45) (PSTN),
•
2 connectors for WLAN antenna,
•
Input for the external power supply connector (DC input jack, 12V-1, 7A).
Depending of the ordered configuration of the system, the rear panel may
change.
19

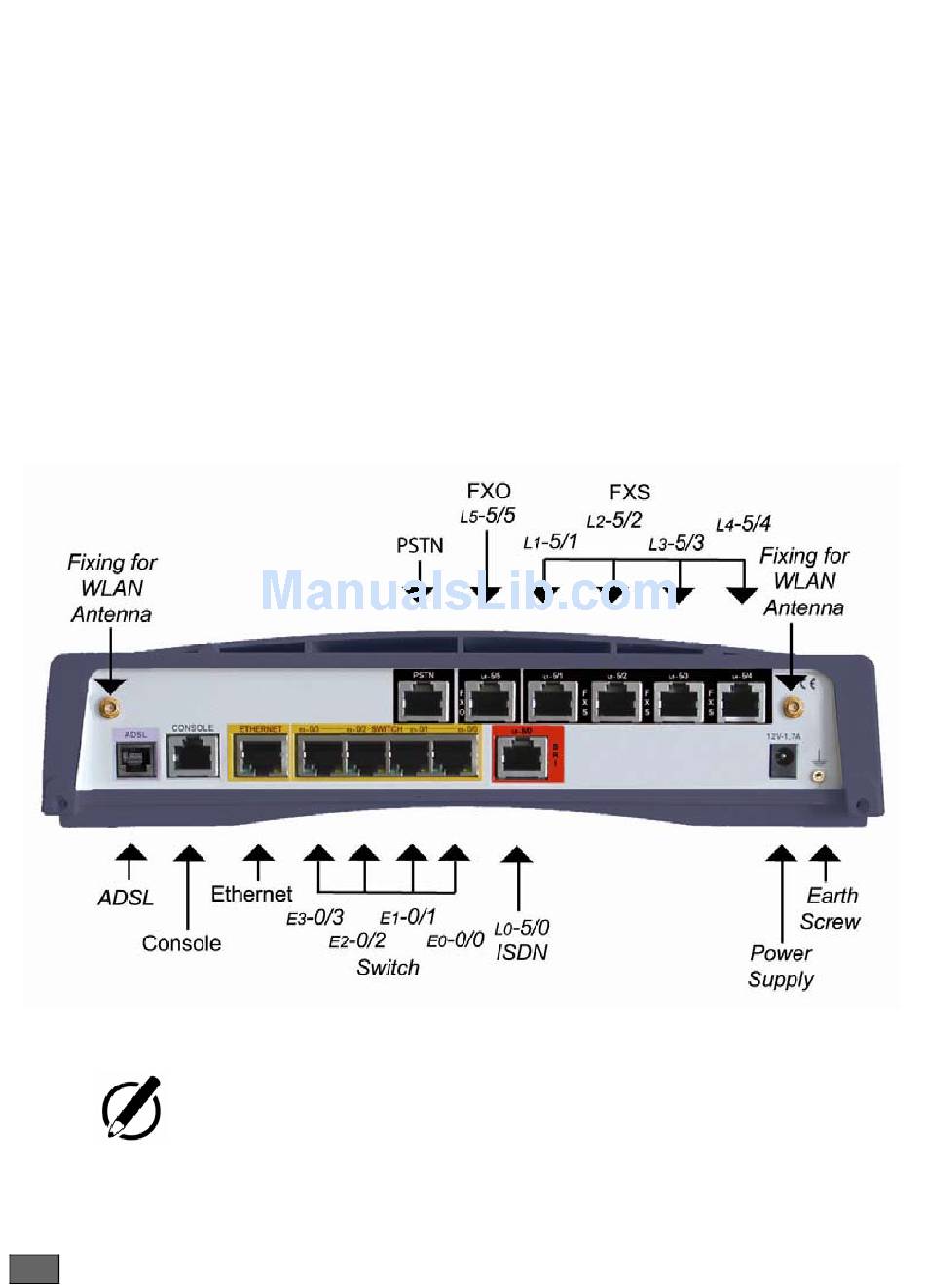

Figure 6. Rear panel with FXS/FXO/ISDN
