4.9.2 Connector Pinout
4.9.2.1 Mother board connectors

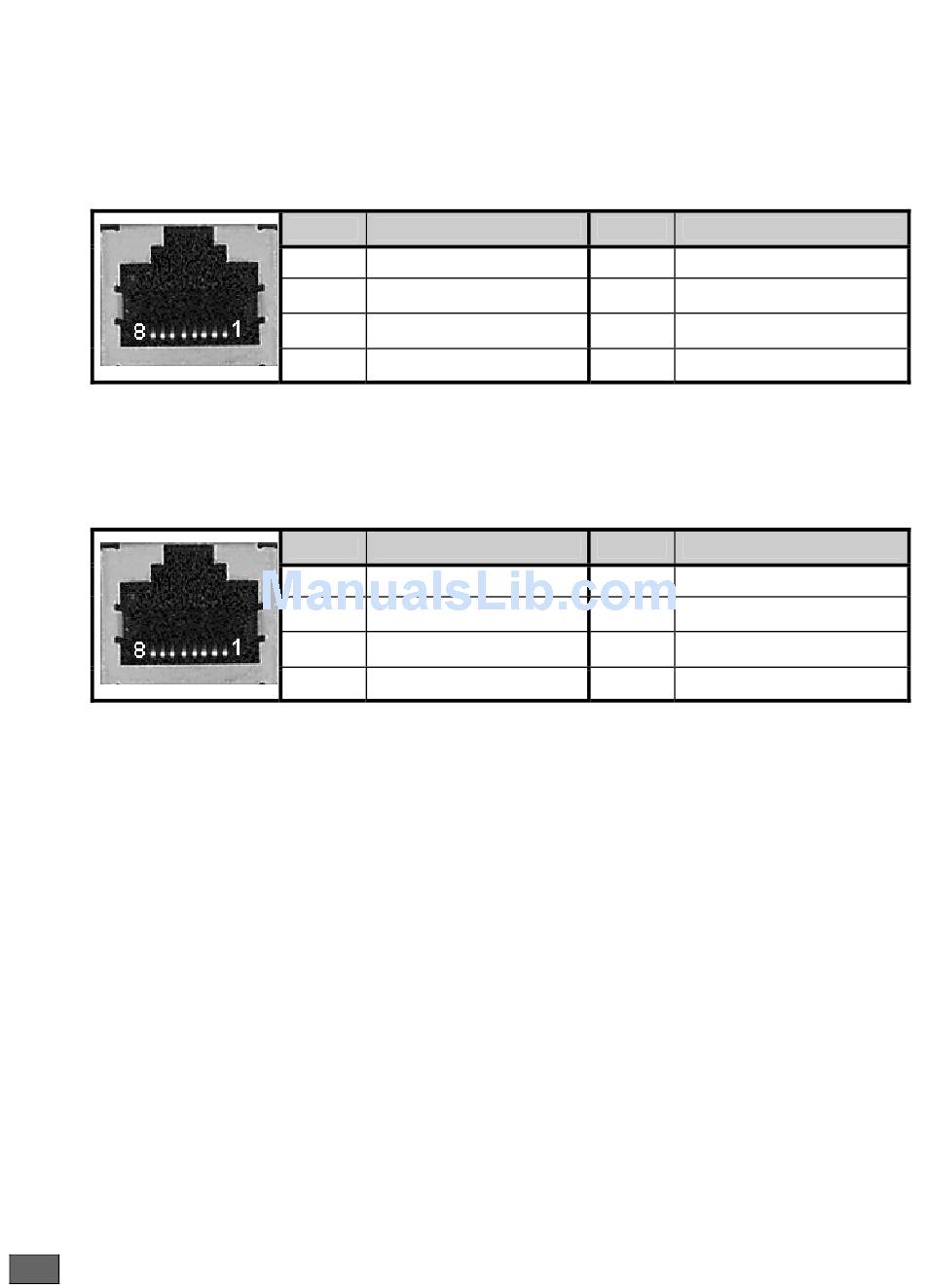

The connection to the BRI accesses is made on the rear panel via RJ-45
connectors. The RJ45 connector pinout is:
4.9.2.2 Daughter board connectors
The connection to the BRI accesses is made on the rear panel via RJ-45
connectors. The RJ45 connector pinout is:
35
Pin Signal
1 NC
2 NC
3 RX (+)
4 TX (+)
Pin Signal
1 NC
2 NC
3 TX (+)
4 RX (+)
ONE100 - Installation Manual
Pin Signal
5 TX (-)
6 RX (-)
7 NC
8 NC
Pin Signal
5 RX (-)
6 TX (-)
7 NC
8 NC
