Appendix B - RS 232 Interface Cable

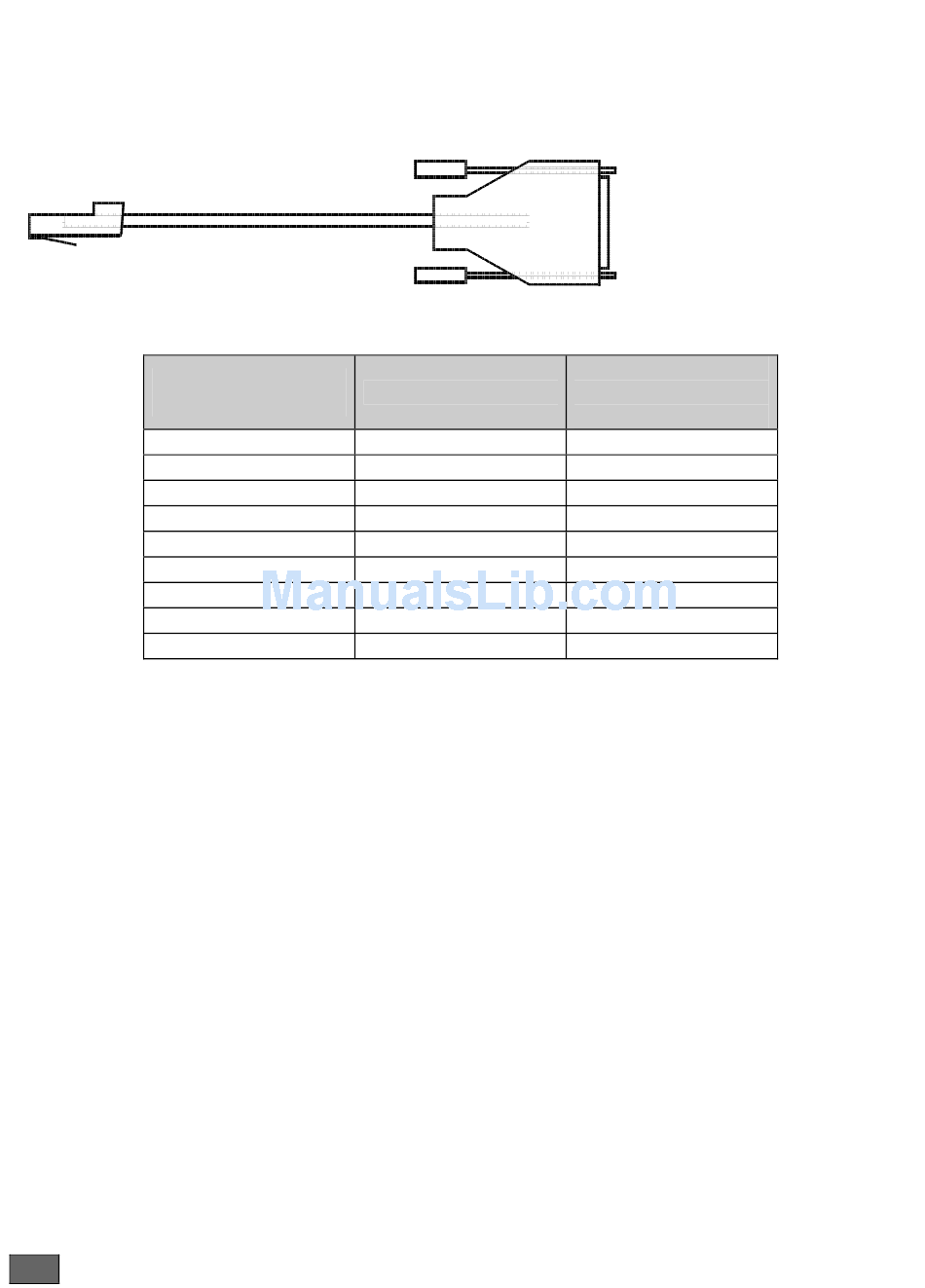

B.1 V.28 / RS 232 DTE
Catalog reference: 4022 815 B 00
P1
42
- P1 -
RJ45
1
2
3
4
5
6
7
8
Screening
ONE100 - Installation Manual
P2
SIGNAL
115 (RXC)
106 (CTS)
103 (SD)
108 (DTR)
104 (RD)
109 (CD)
102
105 (RTS)
P2 -
SUB-D 25 Pts
Male
17
5
2
20
3
8
7
4
Shield
