3.3.4 Configuration with 4 BRI/ 2 FXS
The interface marking is indicated in bold and between bracket.
All the connectors are located on the rear panel:
•
1 ADSL 2/2+ access (RJ11) (ADSL),
•
1 console port (RJ45) (CONSOLE),
•
1 optional LAN 100 Mbps (RJ45) (ETHERNET),
•
4 Ethernet ports (RJ45) (SWITCH – E0-0/0 to E3-0/3),
•
4 ISDN S0/T0 (RJ45) (ISDN BRI – L0-5/0 to L3-5/3),
•
2 analog telephone interfaces to connect telephones (FXS interface) (RJ45),
(FXS – L4-5/4 to L5-5/5),
•
2 connectors for WLAN antenna,
•
Input for the external power supply connector (DC input jack, 12V-1, 7A).
Depending of the ordered configuration of the system, the rear panel may
change.
18

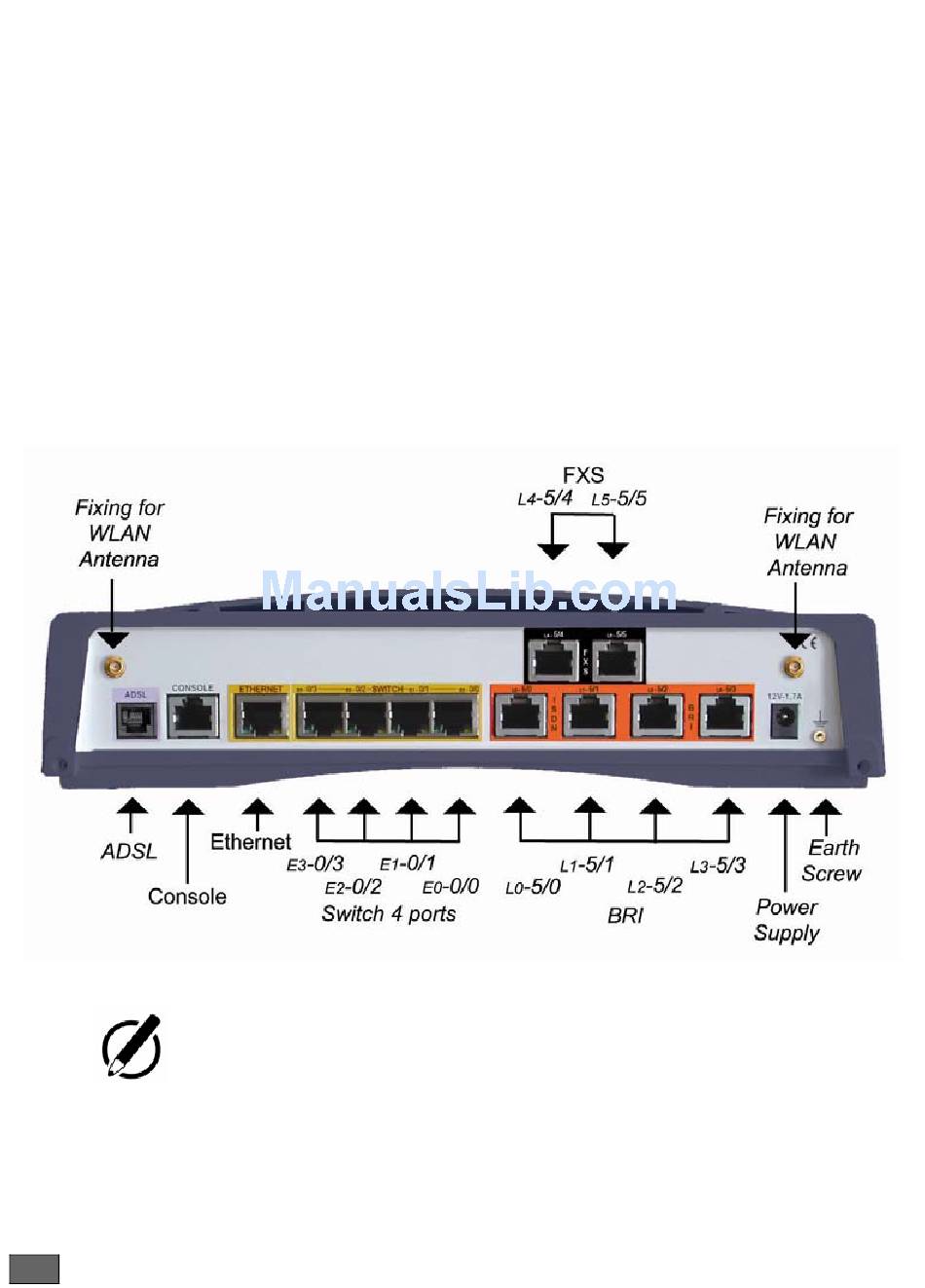

Figure 5. Rear panel with 4 BRI, 2 FXS configuration
