2.

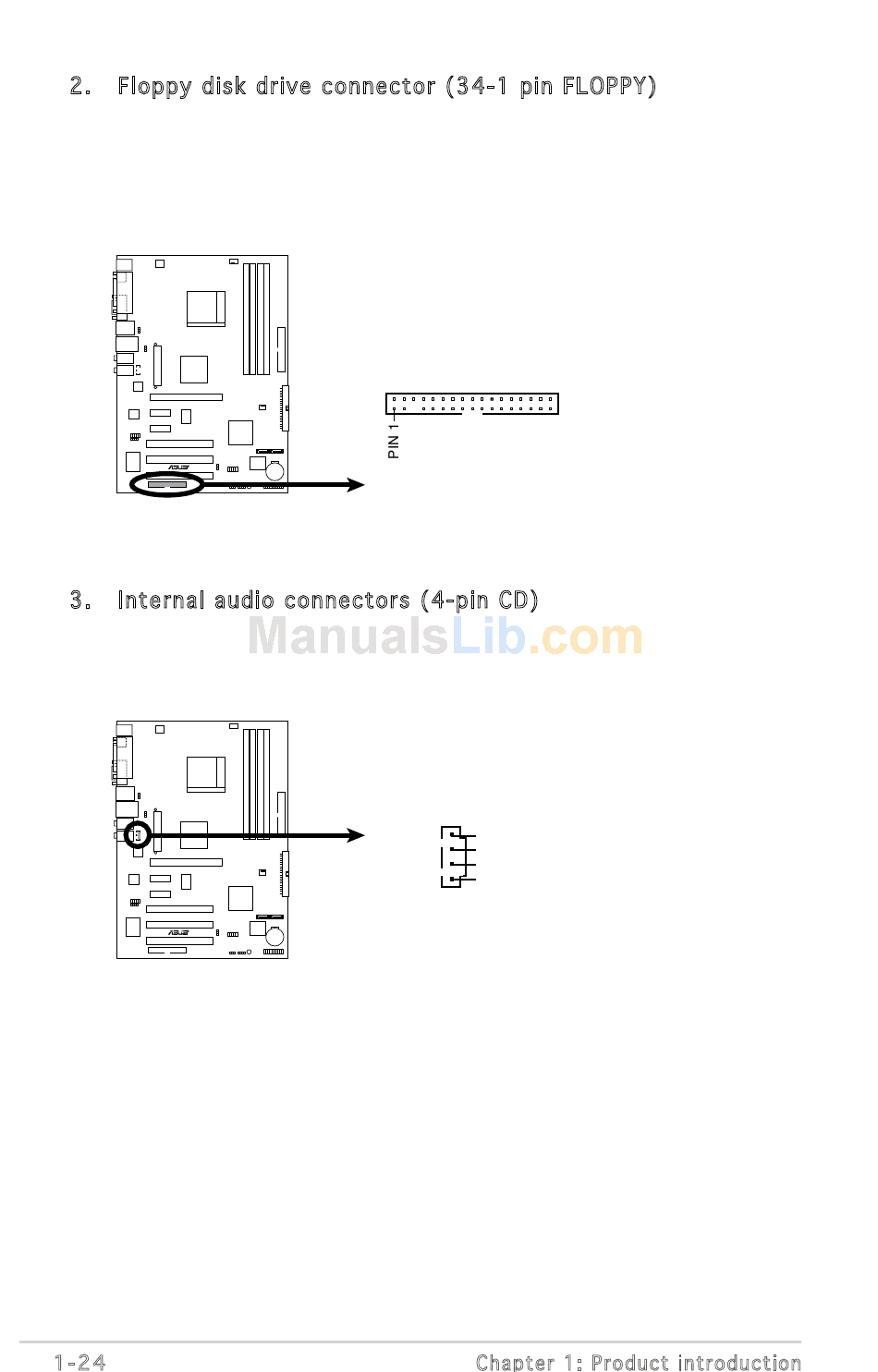

Floppy disk drive connector (34-1 pin FLOPPY)

This connector supports the provided floppy drive ribbon cable. After
connecting one end to the motherboard, connect the other end to
the floppy drive. (Pin 5 is removed to prevent incorrect insertion when
using ribbon cables with pin 5 plug).
M2S-X
R
M2S-X Floppy Disk Drive Connector
3. Internal audio connectors (4-pin CD)
These connectors allow you to receive stereo audio input from sound
sources such as a CD-ROM, TV tuner, or MPEG card.
M2S-X
R
I
M2S-X nternal Audio Connector
1-24
FLOPPY
NOTE: Orient the red markings on
the floppy ribbon cable to PIN 1.
CD
Right Audio Channel
Ground
(black)
Ground
Left Audio Channel
Chapter 1: Product introduction
