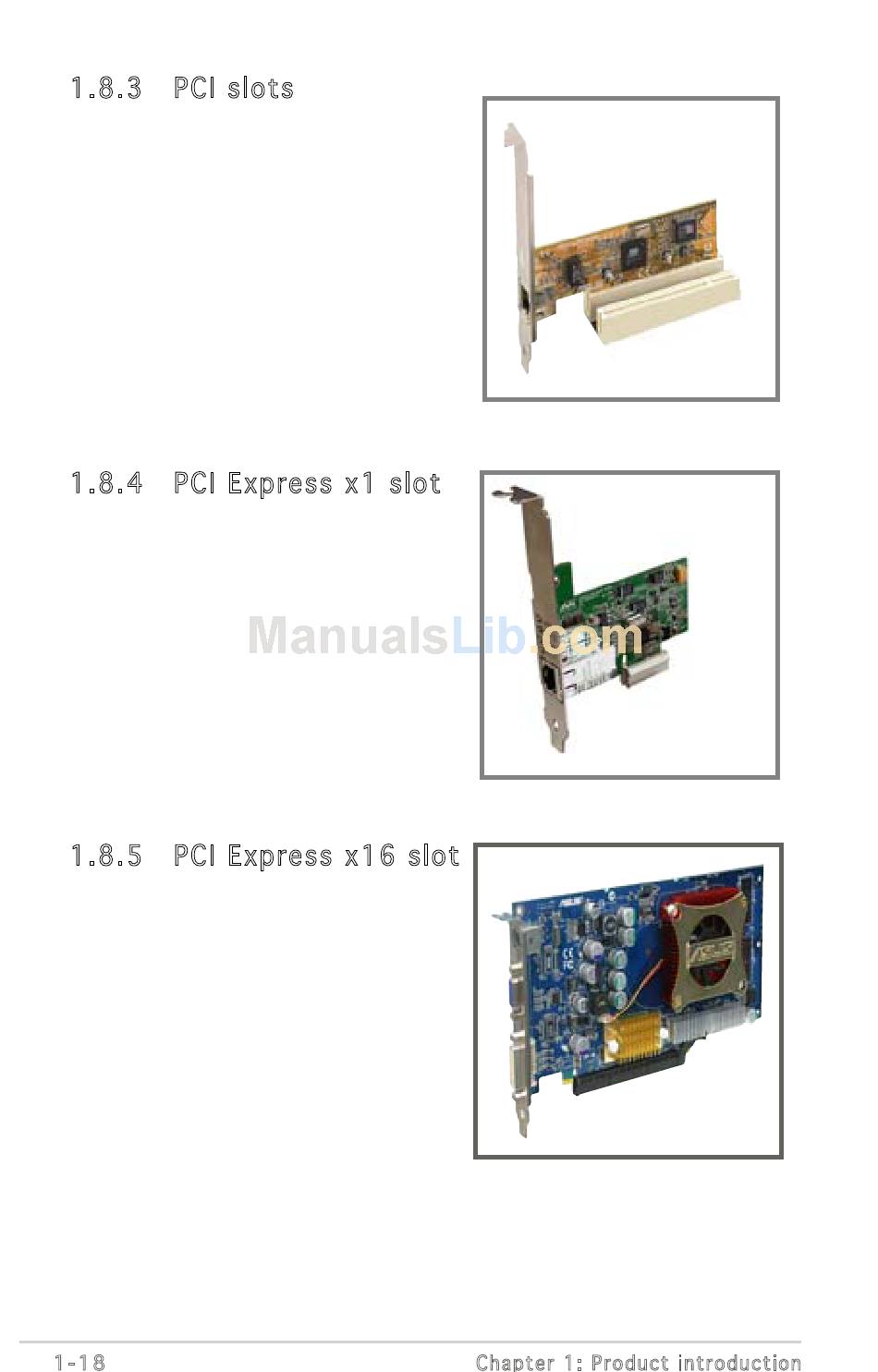

1.8.3

PCI slots

The PCI slots support PCI cards such
as a LAN card, SCSI card, USB card,
and other cards that comply with PCI
specifications.
1.8.4

PCI Express x1 slot

This motherboard supports PCI Express
x1 network cards, SCSI cards and other
cards that comply with the PCI Express
specifications. The figure shows a
network card installed on the PCI Express
x1 slot.
1.8.5

PCI Express x16 slot

This motherboard supports PCI Express
x16 graphic cards that comply with the
PCI Express specifications. The following
figure shows a graphics card installed on
the PCI Express x16 slot.
1-18 Chapter 1: Product introduction
