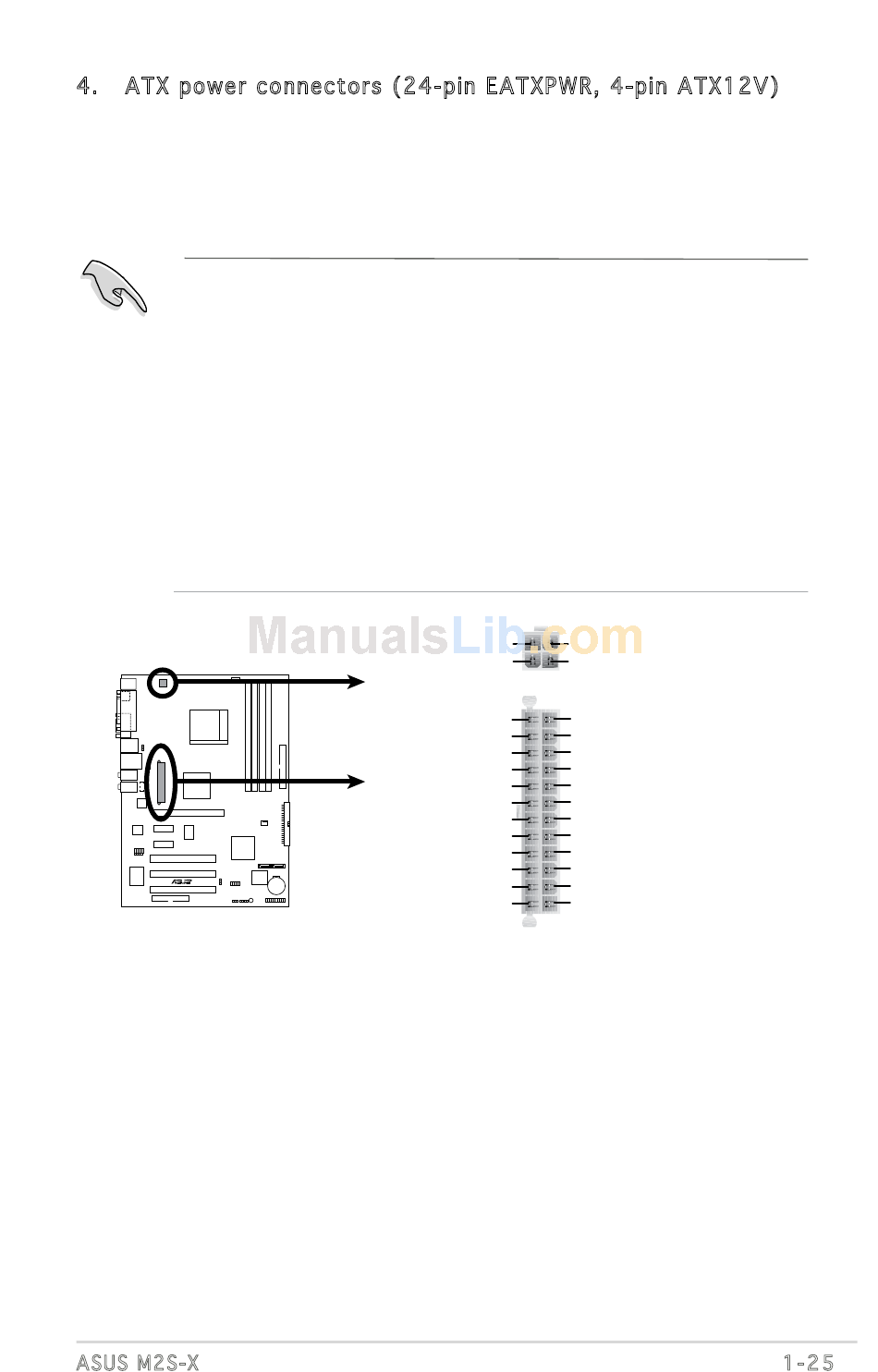

ATX power connectors (24-pin EATXPWR, 4-pin ATX12V)

These connectors are for an ATX power supply plugs. The power

supply plugs are designed to fit these connectors in only one

orientation. Find the proper orientation and push down firmly until the

connectors completely fit.

•

Use of an ATX 12 V Specification 2.0-compliant power supply unit

(PSU) that provides a minimum power of 350 W is recommended for

a fully-configured system.

•

Do not forget to connect the 4-pin ATX +12 V power plug;

otherwise, the system will not boot up.

•

Use of a power supply unit (PSU) with a higher power output

is recommended when configuring a system with more power-

consuming devices. The system may become unstable or may not

boot up if the power is inadequate.

•

Make sure that your PSU can provide at least the minimum power

required by your system.

M2S-X
