User's Manual of WGSW-48000
User's Manual
WGSW-48000

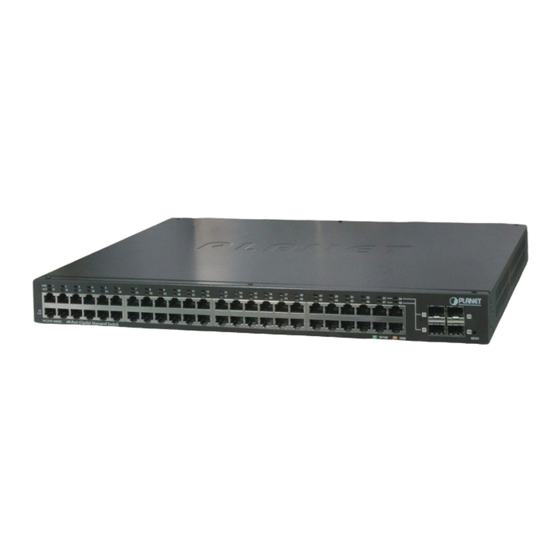

48-Port 10/100/1000Mbps with
4 Shared SFP
Layer 2 Managed Ethernet Switch
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WGSW-48000 and is the answer not in the manual?

Questions and answers

Summary of Contents for Planet Networking & Communication WGSW-48000

  • Page 1 User’s Manual of WGSW-48000 User’s Manual WGSW-48000 48-Port 10/100/1000Mbps with 4 Shared SFP Layer 2 Managed Ethernet Switch...
  • Page 2: Fcc Warning

    User’s Manual of WGSW-48000 Trademarks Copyright © PLANET Technology Corp. 2009. Contents subject to which revision without prior notice. PLANET is a registered trademark of PLANET Technology Corp. All other trademarks belong to their respective owners. Disclaimer PLANET Technology does not warrant that the hardware will work properly in all environments and applications, and makes no warranty and representation, either implied or expressed, with respect to the quality, performance, merchantability, or fitness for a particular purpose.
  • Page 3: Table Of Contents

    User’s Manual of WGSW-48000 TABLE OF CONETNTS 1. INTRODUTION ........................20 1.1 Packet Contents ............................20 1.2 Product Description ...........................20 1.3 How to Use This Manual ..........................21 1.4 Product Features............................23 1.5 Product Specification ..........................25 2. INSTALLATION ........................27 2.1 Hardware Description ..........................27 2.1.1 Switch Front Panel ..............................27...
  • Page 4 User’s Manual of WGSW-48000 4.2.1 System Information..............................46 4.2.2 Network Management ............................47 4.2.3 Time Setting.................................48 4.2.4 Green Ethernet ..............................49 4.3 Port Management ............................50 4.3.1 Port Configuration..............................50 4.3.2 LACP Property..............................52 4.3.3 LAG Group ................................55 4.4 VLAN................................56 4.4.1 VLAN Overview ..............................56 4.4.2 IEEE 802.1Q VLAN .............................56 4.4.3 Create VLAN ...............................61...
  • Page 5 User’s Manual of WGSW-48000 4.7.7 Management IP List............................105 4.7.8 Auto DoS ................................106 4.7.9 SSH ...................................107 4.7.10 DHCP Snooping ..............................108 4.7.11 Dynamic ARP Inspection ..........................109 4.7.12 IP Source Guard .............................. 110 4.7.13 HTTPS................................112 4.8 Quality of Service .............................113 4.8.1 Understand QOS ............................... 113 4.8.2 Queue Settings..............................
  • Page 6 User’s Manual of WGSW-48000 4.11.12 Flash Logs ..............................149 4.11.13 Ping Function ..............................150 4.11.14 Cable Diagnostic............................150 4.11.15 DHCP Relay..............................152 4.11.16 DHCP Option 82 ............................152 4.11.17 Self Loop Detection............................153 4.11.18 BOOTP Configure Download .........................154 4.12 Statistics..............................155 4.12.1 802.1X Statistic..............................155 4.12.2 RMON Statistic ..............................156 4.12.3 RMON Event ..............................158...
  • Page 7 User’s Manual of WGSW-48000 clear counters..............................172 clear igmpsnooping .............................173 clear static-mcast ..............................173 clear pass ................................173 clear lacp ................................173 clear logs ................................173 clear vlan ................................174 configuration................................174 6.2.2 Copy Command..............................174 copy nvram_config tftp ............................174 copy system_image tftp............................174 copy tftp................................175 exit..................................175 help ..................................175 logout ..................................176...
  • Page 8 User’s Manual of WGSW-48000 show lldp statistic..............................181 show lldp local ..............................181 show lldp msap..............................181 show lldp msap-entry............................181 show logging ...............................182 show logging memory-log............................182 show logging flash-log ............................182 show monitor ...............................182 show network ..............................182 show port................................183 show port port-index ............................183 show port all ................................183 show port-security ...............................183...
  • Page 9 User’s Manual of WGSW-48000 show switch mac-table vlan..........................189 show switch mac-table port ..........................189 show switch mcast-table............................189 show switch mac ..............................190 show trapflags ..............................190 show vlan ................................190 show vlan member ..............................190 show vlan number ...............................190 show rmon................................191 show rmon event Index ............................191 show rmon event ..............................191...
  • Page 10 User’s Manual of WGSW-48000 vlan add................................198 vlan add number..............................198 vlan add range..............................198 vlan delete ................................199 vlan port................................199 vlan port all ................................199 vlan port all port-configure ...........................199 vlan port all protected ............................199 vlan port all pvid ..............................200 vlan port ports..............................200 vlan port ports port-configure..........................200 vlan port ports protected............................200...
  • Page 11 User’s Manual of WGSW-48000 log logging-target flash ............................207 log logging-target console ...........................207 log logging-target server name <WORD>......................207 radius-server ip..............................208 static-address add ...............................208 static-address delete ............................208 6.3.5 Mgmt Command ..............................209 mgmt-accesslist ipaddr............................209 mgmt-accesslist enable ............................209 mgmt-accesslist disable ............................209 6.3.6 Monitor Command .............................209 monitor enable..............................209...
  • Page 12 User’s Manual of WGSW-48000 port-all flow-control ..............................216 port-all portsec-lockmode ............................216 port-all portsec-lockmode none ...........................216 port-all portsec-lockmode dynamic max-entries ....................217 port-all rate-limit..............................217 port-all rate-limit egress ............................217 port-all rate-limit ingress ............................217 port-all rmon-counter ............................217 port-all speed...............................218 port-all storm-control ............................218 port-all storm-control disable ..........................218 port-all storm-control broadcast...........................218...
  • Page 13 User’s Manual of WGSW-48000 set static-mcast ..............................225 set static-mcast name <WORD> add vid......................225 set static-mcast name <WORD>delete .......................226 6.3.12 SNMP Command .............................226 snmp notify ................................226 snmp group add ..............................226 snmp group delete...............................227 snmp user add..............................227 snmp user delete..............................227 snmp community add ............................228 snmp community delete............................228...
  • Page 14 User’s Manual of WGSW-48000 spanning-tree port force-p2plink ..........................235 spanning-tree port migration-check ........................235 spanning-tree port root-guard..........................236 spanning-tree priority............................236 spanning-tree mst..............................236 spanning-tree mst instance ..........................236 spanning-tree mst instance add vlan ........................236 spanning-tree mst instance delete........................237 spanning-tree mst vlan ............................237 spanning-tree mst vlan <MST ID> <vlan list> add ....................237 Spanning-Tree mst vlan <MST ID>...
  • Page 15 User’s Manual of WGSW-48000 access-list name <WORD> set ...........................244 access-list name <WORD> set priority........................244 access-list name <WORD> set IP-mode ......................244 access-list name <WORD> set IP-mode SRC IP....................244 access-list name <WORD> set IP-mode DST IP ....................244 access-list name <WORD> set L4port ........................245 access-list name <WORD>...
  • Page 16 User’s Manual of WGSW-48000 dhcpsnooping vlan add............................253 dhcpsnooping vlan remove..........................254 dhcpsnooping static.............................254 dhcpsnooping static add ip ..........................254 dhcpsnooping static delete ip ..........................254 dhcpsnooping dyamic............................255 dhcpsnooping dynamic add ip ..........................255 dhcpsnooping dynamic delete ip .........................255 6.3.20 Loop_detect Command ...........................256 Loop_detect enable.............................256 loop_detect disable .............................256...
  • Page 17 User’s Manual of WGSW-48000 lacp priority ................................262 addport ................................262 delport .................................262 6.4.2 LLDP Command ..............................263 lldp state ................................263 lldp notifications ..............................263 lldp tlvs-tx ................................263 8021 set................................264 8023 set................................264 admin-mode ................................264 auto-negotiate ..............................265 speed ..................................265 flow-control ................................265 6.4.3 Port-security Command .............................265 port-security.................................265...
  • Page 18 User’s Manual of WGSW-48000 vlan participation..............................272 vlan protected..............................273 vlan dropnq................................273 vlan pvid ................................273 Interface commands ............................273 7. SWITCH OPERATION ....................... 275 7.1 Address Table ............................275 7.2 Learning ..............................275 7.3 Forwarding & Filtering ..........................275 7.4 Store-and-Forward ...........................275 7.5 Auto-Negotiation ............................275 8. TROUBLE SHOOTING...................... 277 APPENDEX A ........................
  • Page 19 User’s Manual of WGSW-48000...
  • Page 20: Introdution

    Networking The PLANET WGSW-48000 is a Layer 2 / Layer 4 full managed Gigabit Switch that provides high density performance and is rack mountable. With 96Gbps switching fabric, the WGSW-48000 can handle extremely large amounts of data in a secure topology linking to an enterprise backbone or high capacity servers.
  • Page 21: How To Use This Manual

    VLAN, Spanning Tree protocol, QoS, bandwidth control and IGMP Snooping. The WGSW-48000 provides 802.1Q Tagged VLAN and GVRP protocol. The VLAN groups allowed on the WGSW-48000 will be maximally up to 255. By supporting port aggregation, the WGSW-48000 allows the operation of a high-speed trunk combining multiple ports. It enables up to 14 groups of maximum 8-ports for trunking, and supports fail-over as well.
  • Page 22 User’s Manual of WGSW-48000 The section contains the information about the software function of the Managed Switch. Section WEB CONFIGURATION The section explains how to manage the Managed Switch by Web interface. Section 5, COMMAND LINE INTERFACE The section describes how to use the Command Line interface (CLI).
  • Page 23: Product Features

    User’s Manual of WGSW-48000 1.4 Product Features Physical Port 48-Port 10/100/1000Base-T Gigabit Ethernet RJ-45 4 mini-GBIC/SFP slots, shared with Port-23, Port-24, Port-47 and Port-48 RS-232 DB9 console interface for Switch basic management and setup Layer 2 Features Complies with the IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z Gigabit Ethernet standard Supports Auto-negotiation and Half-Duplex / Full-Duplex modes for all 10Base-T/100Base-TX and 1000Base-T ports.
  • Page 24 User’s Manual of WGSW-48000 Multicast Support IGMP Snooping v1 and v2 IGMP Querier / IGMP Proxy / IGMP Immediately Leave support Security IEEE 802.1x Port-Based Authentication Build-in RADIUS client to co-operate with the RADIUS servers TACACS+ login users access authentication...
  • Page 25: Product Specification

    User’s Manual of WGSW-48000 1.5 Product Specification W GSW-48000 Product 48-Port 10/100/1000Mbps with 4 Shared SFP Managed Gigabit Switch Hardware Specification Copper Ports 48 10/ 100/1000Base-T RJ-45 Auto-MDI/MDI-X ports SFP / mini-GBIC slots 4 1000Base-SX/LX SFP interfaces, shared with Port-23, Port-24, Port-47 and Port-48...
  • Page 26 User’s Manual of WGSW-48000 IGMP Snooping IGMP (v1/v2) Snooping, IGMP Querier mode IP-Based ACL / MAC-Based ACL Access Control List Up to 254 entries RFC-1213 MIB-II RFC-2863 Interface MIB RFC-2665 EtherLike MIB RFC-1493 Bridge MIB SNMP MIBs RFC-2674 Extended Bridge MIB...
  • Page 27: Installation

    Figure 2-1 shows the front panel of the Managed Switches. WGSW-48000 Front Panel Figure 2-1 WGSW-48000 front panel. ■ Gigabit TP interface 10/100/1000Base-T Copper, RJ-45 Twist-Pair: Up to 100 meters. ■ Gigabit SFP slots 1000Base-SX/LX mini-GBIC slot, SFP (Small Factor Pluggable) transceiver module: From 550 meters (Multi-mode fiber), up to 10/30/50/70/120 kilometers (Single-mode fiber).
  • Page 28: Led Indications

    2.1.2 LED Indications The front panel LEDs indicates instant status of port links, data activity, system operation and system power, helps monitor and troubleshoot when needed. WGSW-48000 LED indication Figure 2-3 WGSW-48000 LED panel ■ System Color Function Lights to indicate that the Switch is powered on.
  • Page 29: Switch Rear Panel

    Managed Switch. WGSW-48000 Rear Panel Figure 2-5 Rear panel of WGSW-48000 ■ Console Port The console port is a DB9, RS-232 male seria port connector. It is an interface for connecting a terminal directly. Through the console port, it provides rich diagnostic information includes IP Address setting, factory reset, port management, link status and system setting.
  • Page 30: Install The Switch

    User’s Manual of WGSW-48000 2.2 Install the Switch This section describes how to install your Managed Switch and make connections to the Managed Switch. Please read the following topics and perform the procedures in the order being presented. To install your Managed Switch on a desktop or shelf, simply complete the following steps.
  • Page 31: Rack Mounting

    User’s Manual of WGSW-48000 Step5: Supply power to the Managed Switch. Connect one end of the power cable to the Managed Switch. Connect the power plug of the power cable to a standard wall outlet. When the Managed Switch receives power, the Power LED should remain solid Green.
  • Page 32: Installing The Sfp Transceiver

    User’s Manual of WGSW-48000 Figure 2-12 Mounting WGSW-48000 in a Rack Step6: Proceeds with the steps 4 and steps 5 of session 2.2.1 Desktop Installation to connect the network cabling and supply power to the Managed Switch. 2.2.3 Installing the SFP transceiver The sections describe how to insert an SFP transceiver into an SFP slot.
  • Page 33 User’s Manual of WGSW-48000 Approved PLANET SFP Transceivers PLANET Managed Switch supports both Single mode and Multi-mode SFP transceiver. The following list of approved PLANET SFP transceivers is correct at the time of publication: ■ MGB-SX SFP (1000BASE-SX SFP transceiver / Multi-mode / 850nm / 220m~550m) ■...
  • Page 34 User’s Manual of WGSW-48000 Figure 2-14 Pull out the SFP transceiver Never pull out the module without pull the handle or the push bolts on the module. Direct pull out the module with violent could damage the module and SFP module slot of the Managed...
  • Page 35: Switch Management

    User’s Manual of WGSW-48000 3. SWITCH MANAGEMENT This chapter explains the methods that you can use to configure management access to the Managed Switch. It describes the types of management applications and the communication and management protocols that deliver data between your management device (work-station or personal computer) and the system.
  • Page 36: Management Access Overview

    User’s Manual of WGSW-48000 3.2 Management Access Overview The Managed Switch gives you the flexibility to access and manage it using any or all of the following methods: An administration console Web browser interface An external SNMP-based network management application The administration console and Web browser interface support are embedded in the Managed Switch software and are available for immediate use.
  • Page 37 User’s Manual of WGSW-48000 Figure 3-1 Console management Direct Access Direct access to the administration console is achieved by directly connecting a terminal or a PC equipped with a terminal-emulation program (such as HyperTerminal) to the Managed Switch console (serial) port.
  • Page 38: Web Management

    User’s Manual of WGSW-48000 You can change these settings, if desired, after you log on. This management method is often preferred because you can remain connected and monitor the system during system reboots. Also, certain error messages are sent to the serial port, regardless of the interface through which the associated action was initiated.
  • Page 39: Snmp-Based Network Management

    User’s Manual of WGSW-48000 Figure 3-4 Web main screen of Managed Switch 3.5 SNMP-Based Network Management You can use an external SNMP-based application to configure and manage the Managed Switch, such as SNMPc Network Manager, HP Openview Network Node Management (NNM) or What’s Up Gold. This management method requires the SNMP agent on the switch and the SNMP Network Management Station to use the same community string.
  • Page 40: Protocols

    User’s Manual of WGSW-48000 3.6 Protocols The Managed Switch supports the following protocols: Virtual terminal protocols, such as Telnet Simple Network Management Protocol (SNMP) 3.6.1 Virtual Terminal Protocols A virtual terminal protocol is a software program, such as Telnet, that allows you to establish a management session from a Macintosh, a PC, or a UNIX workstation.
  • Page 41: Web Configuration

    User’s Manual of WGSW-48000 4. WEB CONFIGURATION This section introduces the configuration and functions of the Web-Based management. About Web-based Management The Managed Switch offers management features that allow users to manage the Managed Switch from anywhere on the network through a standard browser such as Microsoft Internet Explorer.
  • Page 42 User’s Manual of WGSW-48000 Logging on the switch Use Internet Explorer 6.0 or above Web browser. Enter the factory-default IP address to access the Web interface. The factory-default IP Address as following: http://192.168.0.100 When the following login screen appears, please enter the default username "admin" with password “admin” (or the username/password you have changed via console) to login the main screen of Managed Switch.
  • Page 43 User’s Manual of WGSW-48000 Figure 4-1-3 Default main page Now, you can use the Web management interface to continue the switch management or manage the Managed Switch by Web interface. The Switch Menu on the left of the web page let you access all the commands and statistics the Managed Switch provides.
  • Page 44: Main Web

    User’s Manual of WGSW-48000 4.1 Main WEB PAGE The WGSW Managed Switch provides a Web-based browser interface for configuring and managing it. This interface allows you to access the Managed Switch using the Web browser of your choice. This chapter describes how to use the Managed Switch’s Web browser interface to configure and manage it.
  • Page 45 User’s Manual of WGSW-48000 Figure 4-1-5 WGSW Managed Switch Main Funcrions Menu...
  • Page 46: System

    User’s Manual of WGSW-48000 4.2 System Use the System menu items to display and configure basic administrative details of the Managed Switch. Under System the following topics are provided to configure and view the system information: This section has the following items: 4.2.1 System Information...
  • Page 47: Network Management

    User’s Manual of WGSW-48000 4.2.2 Network Management The Network Managment includes the IP Address, Subnet Mask and Gateway. The Configured column is used to view or change the IP configuration.Fill up the IP Address, Subnet Mask and Gateway for the device. The screen in Figure 4-2-2 appears.
  • Page 48: Time Setting

    User’s Manual of WGSW-48000 4.2.3 Time Setting In the System sub-function menu, you can see the Time Setting, by which you can configure the time settings for the Managed Switch. You can specify SNTP Servers and set GMT Timezone. The SNTP Configuration screen in Figure 4-2-3 appears.
  • Page 49: Green Ethernet

    User’s Manual of WGSW-48000 • Use SNTP Server The device supports the Simple Network Time Protocol (SNTP). SNTP assures accurate network device clock time synchronization up to the millisecond. Time synchronization is performed by a network SNTP server. The device operates only as an SNTP client, and cannot provide time services to other systems.
  • Page 50: Port Management

    User’s Manual of WGSW-48000 4.3 Port Management Use the Port Menu to display or configure the Managed Switch's ports. This section has the following items: Port Configuration LACP Property LAG Group 4.3.1 Port Configuration This page displays current port configurations. Ports can also be configured here.
  • Page 51 User’s Manual of WGSW-48000 • Speed Duplex Indicates the speed and duplex mode if the port is linkup. • Flow Control Indicates the state of flow control if the port is linkup. • LAG Group Indicates the LAG group if the port is a LAG port.
  • Page 52: Lacp Property

    User’s Manual of WGSW-48000 4.3.2 LACP Property Link Aggregation Control Protocol (LACP) is part of an IEEE specification (802.3ad) that allows several physical ports to be bundled together to form a single logical channel. Link Aggregation allows one or more links to be aggregated together to form a Link Aggregation Group, such that a MAC Client can treat the Link Aggregation Group as if it were a single link.
  • Page 53 User’s Manual of WGSW-48000 • The ports used in a link aggregation must all be of the same media type (RJ-45, 100 Mbps fiber). • The ports that can be assigned to the same link aggregation have certain other restrictions (see below).
  • Page 54 User’s Manual of WGSW-48000 Figure 4-3-4 LACP Property The page includes the following fields: Object Description • LACP System Priority Specifies the actor device's link aggregation priority relative to the devices at the other ends of the links on which link aggregation is enabled. A higher value indicates a lower priority.
  • Page 55: Lag Group

    User’s Manual of WGSW-48000 All information listed here is for reference only. Please refer to IEEE 802.3ad for details. 4.3.3 LAG Group Link Aggregated Groups optimize port usage by linking a group of ports together to form a single aggregated group. Link aggregated groups multiply the bandwidth between the devices, increase port flexibility, and provide link redundancy.
  • Page 56: Vlan

    User’s Manual of WGSW-48000 4.4 VLAN 4.4.1 VLAN Overview A Virtual Local Area Network (VLAN) is a network topology configured according to a logical scheme rather than the physical layout. VLAN can be used to combine any collection of LAN segments into an autonomous user group that appears as a single LAN.
  • Page 57 User’s Manual of WGSW-48000 physical connections. VLANs can be easily organized to reflect departmental groups (such as Marketing or R&D), usage groups (such as e-mail), or multicast groups (used for multimedia applications such as videoconferencing). VLANs provide greater network efficiency by reducing broadcast traffic, and allow you to make network changes without having to update IP addresses or IP subnets.
  • Page 58: Q Vlan Tags

    User’s Manual of WGSW-48000 ■ 802.1Q VLAN Tags The figure below shows the 802.1Q VLAN tag. There are four additional octets inserted after the source MAC address. Their presence is indicated by a value of 0x8100 in the Ether Type field. When a packet's Ether Type field is equal to 0x8100, the packet carries the IEEE 802.1Q/802.1p tag.
  • Page 59: Default Vlans

    User’s Manual of WGSW-48000 ■ Port VLAN ID Packets that are tagged (are carrying the 802.1Q VID information) can be transmitted from one 802.1Q compliant network device to another with the VLAN information intact. This allows 802.1Q VLAN to span network devices (and indeed, the entire network –...
  • Page 60: Vlan Classification

    User’s Manual of WGSW-48000 ■ VLAN Classification When the switch receives a frame, it classifies the frame in one of two ways. If the frame is untagged, the switch assigns the frame to an associated VLAN (based on the default VLAN ID of the receiving port). But if the frame is tagged, the switch uses the tagged VLAN ID to identify the port broadcast domain of the frame.
  • Page 61: Create Vlan

    User’s Manual of WGSW-48000 4.4.3 Create VLAN The Create VLAN screen provides information and global parameters for configuring and working with VLANs. Figure 4-4-1 Create VLAN screenshot The page includes the following fields: Object Description • Single VLAN Indicates the ID number of the VLAN being configured. Up to 256 VLANs can be created.
  • Page 62: Vlan Setting

    User’s Manual of WGSW-48000 4.4.4 VLAN Setting The VLAN Setting screen contains fields for configuring ports to a VLAN. The port default VLAN ID (PVID) is configured on the Create VLAN screen. All untagged packets arriving to the device are tagged by the ports PVID. The VLAN Settings screen contains a Port Table for VLAN parameters for each port.
  • Page 63 User’s Manual of WGSW-48000 Frame Income Income Frame is tagged Income Frame is untagged Frame Leave Leave port is tagged Frame remains tagged Tag is inserted Leave port is untagged Tag is removed Frame remain untagged The page includes the following fields:...
  • Page 64: Vlan Port

    User’s Manual of WGSW-48000 4.4.5 VLAN Port This page is used for configuring the Managed Switch port VLAN. The VLAN per Port Configuration page contains fields for managing ports that are part of a VLAN. The port default VLAN ID (PVID) is configured on the VLAN Port Configuration page.
  • Page 65: Gvrp

    User’s Manual of WGSW-48000 4.4.6 GVRP When Switch GVRP is enabled, you can modify the GVRP settings of multiple ports. But if it's disabled, GVRP will be disabled on all ports. Click the Modify hyperlink to modify the GVRP settings of multiple ports when Switch GVRP is enabled.
  • Page 66 User’s Manual of WGSW-48000 has been issued, the applicants can rejoin before the port actually leaves the group. Range: 60-3000 centiseconds Default: 60 centiseconds • AllLeave Period The interval between sending out a LeaveAll query message for VLAN group participants and the port leaving the group. This interval should be considerably larger than the Leave Time to minimize the amount of traffic generated by nodes rejoining the group.
  • Page 67: Spanning Tree

    User’s Manual of WGSW-48000 4.5 Spanning Tree The Spanning Tree protocol can be used to detect and disable network loops, and to provide backup links between switches, bridges or routers. This allows the switch to interact with other bridging devices in your network to ensure that only one route exists between any two stations on the network, and provide backup links which automatically take over when a primary link goes down.
  • Page 68: Creating A Stable Stp Topology

    User’s Manual of WGSW-48000 The switch sends BPDUs to communicate and construct the spanning-tree topology. All switches connected to the LAN on which the packet is transmitted will receive the BPDU. BPDUs are not directly forwarded by the switch, but the receiving switch uses the information in the frame to calculate a BPDU, and, if the topology changes, initiates a BPDU transmission.
  • Page 69: Stp Parameters

    User’s Manual of WGSW-48000 From disabled to blocking Switch Blocking Listening Disable Learning Forwarding Figure 4-5-1 STP Port State Transitions You can modify each port state by using management software. When you enable STP, every port on every switch in the network goes through the blocking state and then transitions through the states of listening and learning at power up.
  • Page 70 User’s Manual of WGSW-48000 address 32768 + MAC Priority A relative priority for each switch – lower 32768 numbers give a higher priority and a greater chance of a given switch being elected as the root bridge The length of time between broadcasts of...
  • Page 71: Illustration Of Stp

    User’s Manual of WGSW-48000 Hello Time – The Hello Time can be from 1 to 10 seconds. This is the interval between two transmissions of BPDU packets sent by the Root Bridge to tell all other Switches that it is indeed the Root Bridge. If you set a Hello Time for your Switch, and it is not the Root Bridge, the set Hello Time will be used if and when your Switch becomes the Root Bridge.
  • Page 72 User’s Manual of WGSW-48000 LAN 1 Portcast = 19 Port 3 Bridge ID = 15 Port 1 Port 2 Portcast = 4 Portcast = 4 Portcast = 4 Portcast = 4 Port 1 Port 1 Bridge ID = 30 Bridge ID = 20...
  • Page 73: Rstp (Rapid Spanning Tree Protocol)

    User’s Manual of WGSW-48000 4.5.1 RSTP (Rapid Spanning Tree Protocol) The Rapid Spanning Tree Protocol (RSTP) provides rapid convergence of the spanning tree by assigning port roles and by determining the active topology. The RSTP builds upon the IEEE802.1D STP protocol to select the switch with the highest switch priority as the root switch.
  • Page 74: Rstp Port

    User’s Manual of WGSW-48000 4.5.2 RSTP Port RSTP port settings control and monitor per port spanning tree status. Figure 4-5-5 RSTP Port The page includes the following fields: Object Description • Port Indicates the port numbers of the system. • Participate Indicates if the port is runung RSTP protocol or not.
  • Page 75: Mstp

    User’s Manual of WGSW-48000 negotiates a rapid transition with the other port to ensure a loop-free topology. • Status Displays the RSTP port status. • Role Displays the role of this RSTP port. • Edit RSTP Port Click on this button to allow you to configure RSTP port properties.
  • Page 76: Mstp Port

    User’s Manual of WGSW-48000 is discarded. • Forward Delay Forward delay is a time value which controls how fast a port changes its state. The value determines how long the port stays in each of the listening and learning states which precede the forward state. This value is also used to age all dynamic entries in the forwarding databases when a topology change has been detected and is underway.
  • Page 77: Mstp Instance

    User’s Manual of WGSW-48000 • P2P Indicates if this port is a point-to-point link. If you connect a port to another port though a point-to-point link and the local port becomes a designated port, it negotiates a rapid transition with the other port to ensure a loop-free topology.
  • Page 78: Mstp Interface

    User’s Manual of WGSW-48000 series, use a comma; for example, 10,20,30 means VLANs 10, 20, and 30. • "Add" Creates a MST instance, map VLANs to a MST instance. • "Remove" Remove VLANs from the specified MST instance. • Removes the last created MST instance.
  • Page 79 User’s Manual of WGSW-48000 • Priority Displays the priority of this port for the specified MST instance. • Edge Indicates if this port is the edge port. Once configured as an edge port, the port state immediately transitions from disable/block to forwarding state.
  • Page 80: Multicast

    User’s Manual of WGSW-48000 4.6 Multicast 4.6.1 IGMP Snooping The Internet Group Management Protocol (IGMP) lets host and routers share information about multicast groups memberships. IGMP snooping is a switch feature that monitors the exchange of IGMP messages and copies them to the CPU for feature processing.
  • Page 81 User’s Manual of WGSW-48000 Figure 4-6-2 Multicast flooding Figure 4-6-3 IGMP Snooping multicast stream control IGMP Versions 1 and 2...
  • Page 82 User’s Manual of WGSW-48000 Multicast groups allow members to join or leave at any time. IGMP provides the method for members and multicast routers to communicate when joining or leaving a multicast group. IGMP version 1 is defined in RFC 1112. It has a fixed packet size and no optional data.
  • Page 83 User’s Manual of WGSW-48000 Non-Member Leave Group Leave Group (Stop Timer) Join Group (Send Report, Start Timer) Query Received (Start Timer) Delaying Member Idle Member Report Received (Stop Timer) Timer Expried (Send report) Figure 4-6-4 IGMP State Transitions IGMP Querier –...
  • Page 84: Static Multicast

    User’s Manual of WGSW-48000 4.6.2 Static Multicast Static multicast groups provides a way to add and delete multicast addresses in the L2 address table. Figure 4-6-5 Static Multicast The page includes the following fields: Object Description • Group Name Inserts a symbolic name for easy maintenance for this multicast group.
  • Page 85 User’s Manual of WGSW-48000 Figure 4-6-6 Static Multicast Table Figure 4-6-7 Static Multicast Table The page includes the following fields: Object Description • Group ID The index for this static multicast group. • Group Name The name for this static multicast group.
  • Page 86: Igmp

    User’s Manual of WGSW-48000 4.6.4 IGMP IGMP is a standard defined in RFC1112 for IGMPv1, and in RFC2236 for IGMPv2. IGMP specifies how a host can register a router in order to receive specific multicast traffic. Configure the switch to use IGMP snooping in subnets that receive IGMP queries from either IGMP or the IGMP snooping querier.
  • Page 87: Security

    User’s Manual of WGSW-48000 4.7 Security This section is to control the security access of the switch, includes the user access and management control. The Security function contains links to the following topics: • Port Security • ACL • RADIUS •...
  • Page 88 User’s Manual of WGSW-48000 Figure 4-7-2 Port Security – current security table 4.7.2 ACL An ACL consists of a set of rules which are matched sequentially against a packet. When a packet meets the match criteria of a rule, the specified rule action (Permit / Deny) is taken and the additional rules are not checked for a match. On this menu the interfaces to which an ACL applies must be specified, as well as whether it applies to inbound or outbound traffic.
  • Page 89 User’s Manual of WGSW-48000 contains many detailed, different parameter options that are available for individual application. Figure 4-7-3 Access Control List main page The page includes the following fields: Object Description • Sort By Defines the type of sort. It includes priority, deny and permit.
  • Page 90 User’s Manual of WGSW-48000 • New Entry Inserts a new ACL entry. • Import Selects an XML file to import. • Export Writes all ACL entries to an XML file. • Save Settings Modifies the changes of ACL entries which are shown on this page.
  • Page 91 User’s Manual of WGSW-48000 Defines the source IP address mask. • MASK • DIP Matches the destination port IP address to which packets are addressed to the ACE. And (Destination IP Address) it's format is w.x.y.z . Defines the destination IP address mask •...
  • Page 92 User’s Manual of WGSW-48000 ACL Port select Figure 4-7-5 ACL Port List If the rule/filter of ACL entry is empty, the check box of this entry will not be checked by default. If the check box is not checked, the corresponding ACL entry will not be programmed to hardware.
  • Page 93: Understanding Ieee 802.1X Port-Based Authentication

    User’s Manual of WGSW-48000 supplicant. 4.7.3.1 Understanding IEEE 802.1X Port-Based Authentication The IEEE 802.1X standard defines a client-server-based access control and authentication protocol that restricts unauthorized clients from connecting to a LAN through publicly accessible ports. The authentication server authenticates each client connected to a switch port before making available any services offered by the switch or the LAN.
  • Page 94 User’s Manual of WGSW-48000 RADIUS server and one or more RADIUS clients. Switch (802.1X device)—controls the physical access to the network based on the authentication status of the client. The switch acts as an intermediary (proxy) between the client and the authentication server, requesting identity information from the client, verifying that information with the authentication server, and relaying a response to the client.
  • Page 95 User’s Manual of WGSW-48000 Figure 4-7-7 EAP message exchange Ports in Authorized and Unauthorized States The switch port state determines whether or not the client is granted access to the network. The port starts in the unauthorized state. While in this state, the port disallows all ingress and egress traffic except for 802.1X protocol packets. When a client is successfully authenticated, the port transitions to the authorized state, allowing all traffic for the client to flow normally.
  • Page 96: X Port Configuration

    User’s Manual of WGSW-48000 4.7.3.2 802.1x Port Configuration The Port Authentication function establishes security between ports. Figure 4-7-8 802.1X port configuration The page includes the following fields: Object Description • Enable 802.1X Enables or disables 802.1X function. • Status Enables or disables port authentication.
  • Page 97: Windows Platform Radius Server Configuration

    User’s Manual of WGSW-48000 4.7.3.3 Windows Platform RADIUS Server Configuration Setup the RADIUS server and assign the client IP address to the Managed switch. In this case, field in the default IP Address of the Managed Switch with 192.168.0.100. And also make sure the shared secret key is as same as the one you had set at the switch RADIUS server –...
  • Page 98 User’s Manual of WGSW-48000 Figure 4-7-11Windows Server RADIUS Server setting path Enter ” Active Directory Users and Computers”, create legal user data, the next, right-click a user what you created to enter properties, and what to be noticed: Figure 4-7-12 TsInternetUser Properties screen...
  • Page 99: X Client Configuration

    User’s Manual of WGSW-48000 Set the Ports Authenticate Status to “Disable” if the port is connected to the RADIUS server or the port is a uplink port that is connected to another switch. Or once the 802.1X stat to work, the switch might not be able to access the RADIUS server.
  • Page 100 User’s Manual of WGSW-48000 Figure 4-7-14 802.1x client configuration Click “OK”. When client has associated with the Managed Switch, a user authentication notice appears in system tray. Click on the notice to continue. Figure 4-7-15 802.1x client port-based authentication...
  • Page 101: Radius

    User’s Manual of WGSW-48000 Enter the user name, password and the logon domain that your account belongs. 10. Click “OK” to complete the validation process. Figure 4-7-16 802.1x authentication dialogue window 4.7.4 RADIUS The RADIUS server is Remote Authentication Dial-In User Service (RADIUS) defined in RFC2865. It is primarily used by ISPs who authenticate a username and password before authorizing use of the network.
  • Page 102: Tacacs

    User’s Manual of WGSW-48000 Object Description • RADIUS Server IP Specifies the IP address of the RADIUS server. Address • Authorization Port Specifies the UDP port number of the EAPOL control frame. • Secret Key String It is a string used by the RADIUS server as a password to identify EAPOL control frames.
  • Page 103 User’s Manual of WGSW-48000 Object Description • Authentication Local : Local authentication only. Type TACACS+ : TACACS+ authentication only. TACACS+ And Local : Both enabled. TACACS+ authentication first, if failed, then Local authentication used. • Server IP Address TACACS+ Server IP address.
  • Page 104: Storm Control

    User’s Manual of WGSW-48000 4.7.6 Storm Control Forwarding broadcast traffic consumes switch resuources, which can negatively impact the forwarding of other traffic. This configuration page is used to protect regular traffic from an overabundance of broadcast or multicast traffic. The system measures the incoming Broadcast and Multicast frame rate separately on each port, and discard frames when the rate exceeds a user-defined rate.
  • Page 105: Management Ip List

    User’s Manual of WGSW-48000 4.7.7 Management IP List Management IP List specifies the IP addresses which can access the system. Figure 4-7-20 Management IP List The page includes the following fields: Object Description • Management Enables or disables Management IP List.
  • Page 106: Auto Dos

    User’s Manual of WGSW-48000 4.7.8 Auto DoS Getting started with Global Auto DoS Attack Prevention. Settings apply to all ports. Denial of Sevice Prevention Global Auto DoS Attack Prevention Figure 4-7-21 Global Auto DoS Attack Prevention screenshot The page includes the following fields:...
  • Page 107 User’s Manual of WGSW-48000 Advanced Auto DoS Attack Prevention Figure 4-7-22 Advanced Auto DoS Attack Prevention screenshot 4.7.9 SSH SSH ( secure shell) is a network protocol that allows data to be exchanged using a secure channel between two networked devices.
  • Page 108: Dhcp Snooping

    User’s Manual of WGSW-48000 The page includes the following fields: Object Description • Enable SSH Whether or not to activate the SSH daemon inside the switch. Login will be denied if that deamon is inactive. • Save Settings Save current settings for SSH.
  • Page 109: Dynamic Arp Inspection

    User’s Manual of WGSW-48000 The page includes the following fields: Object Description • Option82 Enables or Disables Pass Option82 Packets(DHCP Relay Packets). • Verify MAC Enables or Disables Verify Source MAC & Client MAC function. In order to pass or deny the packet comes from a DHCP Relay Device, not the real client.
  • Page 110: Ip Source Guard

    User’s Manual of WGSW-48000 • Trust Port Selects Trust Ports Of Dynamic ARP function. • Darp VLAN Selects Enabled Dynamic VLAN function. 4.7.12 IP Source Guard I. What is IP Source Guard? IP Source Guard is a security feature that restricts the client IP traffic to those source IP addresses configured in the DHCP Snooping Binding Database and in manually configured IP source bindings.
  • Page 111 User’s Manual of WGSW-48000 be created. DHCP Snooping must be enabled before you enable IP Source Guard. Figure 4-7-26 IP Source Guard screenshot The page includes the following fields: Object Description • Enable IP Source Guard Enables or Disables IP Source Guard function.
  • Page 112: Https

    User’s Manual of WGSW-48000 ACL, Qos, ARP Inspection, DHCP Snooping etc also consume TCAM resources. So the number of entries you can create varies. 4.7.13 HTTPS Getting started with HTTPS setting Hypertext Transfer Protocol over Secure Socket Layer or HTTPS is a URI scheme used to indicate a secure HTTP connection.
  • Page 113: Quality Of Service

    User’s Manual of WGSW-48000 4.8 Quality of Service 4.8.1 Understand QOS Quality of Service (QoS) is an advanced traffic prioritization feature that allows you to establish control over network traffic. QoS enables you to assign various grades of network service to different types of traffic, such as multi-media, video, protocol-specific, time critical, and file-backup traffic.
  • Page 114: Queue Settings

    User’s Manual of WGSW-48000 4.8.2 Queue Settings The Queue Setting page contains fields for defining the QoS queue forwarding types. The screen in Figure 4-8-2 appears. Figure 4-8-2 Queue Settings screenshot The page includes the following fields: Object Description • Scheduling Mode There are two available schedule mode: •...
  • Page 115 User’s Manual of WGSW-48000 Precedence IPv4 Packet Header Type of Service Octet The four TOS bits provide 15 different priority values, however only five values have a defined meaning. DiffServ Code Point (DSCP) - is the traffic prioritization bits within an IP header that are encoded by certain applications and/or devices to indicate the level of service required by the packet across a network.
  • Page 116 User’s Manual of WGSW-48000 • DSCP Specifies trust mode to DSCP on the device. • IP Precedence Specifies trust mode to IP Precedence on the device. • Update Changes the priority map. (Note, before you click "Save Settings", theses change will not be saved.
  • Page 117 User’s Manual of WGSW-48000 4.8.3 802.1P QoS settings allow customization of packet priority in order to facilitate delivery of data traffic that might be affected by latency problems. When CoS / 802.1p Tag Priority is applied, the Managed Switch recognizes 802.1Q VLAN tag packets and extracts the VLAN tagged packets with User Priority value.
  • Page 118 User’s Manual of WGSW-48000 Figure 4-8-8 802.1P configuration screenshot The page includes the following fields: Object Description • 802.1P Priority This value is retrieved from the priority tag field, with values from 0 to 7. 0 indicates the lowest priority, 7 indicates the highest priority.
  • Page 119: Port-Based Qos

    User’s Manual of WGSW-48000 4.8.4 Port-Based QoS When Port-Based priority is applied, any packets received from a high priority port will be treated as a high priority packet. Select the QoS mode to Port-Based Priority, the Port ID to queue mapping configuration page appears, as the Figure 4-8-9 shows.
  • Page 120: Rate Control

    User’s Manual of WGSW-48000 4.8.5 Rate Control Configure the switch port rate limit for Policers and Shapers on this page. The settings relate to the Managed Switch, as reflected by the page header. The screen Rate Control in Figure 4-8-10 appears.
  • Page 121: Dscp Remark

    User’s Manual of WGSW-48000 4.8.6 DSCP Remark This Managed Switch supports the Packet Remarking. Remarks can be made on the DSCP filed if the outgoing packet is an IP packet. Select an ACL Entry Name as the criterion and then enter New DSCP Value as the action. Once the criterion is hit, the DSCP value will be changed.
  • Page 122: Snmp

    User’s Manual of WGSW-48000 4.9 SNMP SNMP Overview The Simple Network Management Protocol (SNMP) is an application layer protocol that facilitates the exchange of management information between network devices. It is part of the Transmission Control Protocol/Internet Protocol (TCP/IP) protocol suite.
  • Page 123: Snmp

    User’s Manual of WGSW-48000 4.9.1 SNMP Configure SNMP on this page. The SNMP System Configuration screen in Figure 4-9-1 appears. Figure 4-9-1 SNMP configuration screenshot The page includes the following fields: Object Description • Enable SNMP Functionalities Enables or Disables SNMP function on this device.
  • Page 124: Group Profile

    User’s Manual of WGSW-48000 4.9.2 Group Profile The Group Profile screen provides information for creating SNMP groups and assigning SNMP access control privileges to SNMP groups. Groups allow network managers to assign access rights to specific device features, or features aspects. The...
  • Page 125: User Profile

    User’s Manual of WGSW-48000 4.9.3 User Profile Configure SNMPv3 users table on this page. The entry index key are Engine ID and User Name. The SNMPv3 Users Configuration screen in Figure 4-9-3 appears. Figure 4-9-3 User Profile The page includes the following fields:...
  • Page 126 User’s Manual of WGSW-48000 Figure 4-9-4 Add new user screenshot The page includes the following fields: Object Description • Delete Check to delete the entry. It will be deleted during the next save. • User Name A string identifying the user name that this entry should belong to. The allowed string length is 1 to 32, and the allowed content is the ASCII characters from 33 to 126.
  • Page 127: Community Profile

    User’s Manual of WGSW-48000 4.9.4 Community Profile Configure SNMP communities table on this page. The entry index key is Community. The SNMP Communities Configuration screen in Figure 4-9-5 Figure 4-9-6 appears. Figure 4-9-5 SNMP Community Profile Figure 4-9-6 SNMP Community Profile...
  • Page 128: Snmp Trap Station

    User’s Manual of WGSW-48000 4.9.5 SNMP Trap Station Configure SNMP trap on this page. The SNMP Trap Configuration screen in Figure 4-9-7 Figure 4-9-8 appears. Figure 4-9-7 SNMP Trap Station Figure 4-9-8 Add new SNMP Trap Station The page includes the following fields:...
  • Page 129: Lldp

    User’s Manual of WGSW-48000 4.10 LLDP Link Layer Discovery Protocol (LLDP) is used to discover basic information about neighboring devices on the local broadcast domain. LLDP is a Layer 2 protocol that uses periodic broadcasts to advertise information about the sending device. Advertised information is represented in Type Length Value (TLV) format according to the IEEE 802.1ab standard, and can include details...
  • Page 130: Lldp Statistics

    User’s Manual of WGSW-48000 • Re-initialization delay The minimum delay period before from the time a ports becomes disabled until re-initialization. • Notification Interval The interval at which notification are generated when remote MSAP information changes. • Indicates the ports on which the management address will be transmitted.
  • Page 131: Local Information

    User’s Manual of WGSW-48000 Global Counters Object Description • Number of Inserts: Shows the number of new entries added since switch reboot. • Number of Deletes: Shows the number of new entries deleted since switch reboot. • Number of Drops: Shows the number of LLDP frames dropped due to that the entry table was full.
  • Page 132 User’s Manual of WGSW-48000 Figure 4-10-3 Local Information The LLDP port settings relate to the currently selected stack unit, as reflected by the page header. Object Description • Chassis ID SubType Identifies the chassis containing the IEEE 802 LAN entity associated with the transmitting LLDP agent.
  • Page 133 User’s Manual of WGSW-48000 • Management Optional TLV: When checked the "management address" is included in LLDP Addresses information transmitted. The management address protocol packet includes the IPv4 address of the switch. If no management address is available, the address should be the MAC address for the CPU or for the port sending this advertisement.
  • Page 134: Remote Information

    User’s Manual of WGSW-48000 4.10.4 Remote Information This page provides a status overview for all LLDP neighbors. The displayed table contains a row for each port on which an LLDP neighbor is detected. The LLDP Neighbor screen in Figure 4-10-4 appears.
  • Page 135: Admin

    User’s Manual of WGSW-48000 4.11 ADMIN The Admin section provides information for devining system parameters including User account and file management, device software. Under Admin the folling topics are provided to devine and view the system informatin: Admin Password L2 Table...
  • Page 136: L2 Table

    User’s Manual of WGSW-48000 The page includes the following fields: Object Description • Old Password Enter original password. • New Password Enter a desired password to replace the original one. • Confirm New Password Enter new password again for confirmation.
  • Page 137: Static Address

    User’s Manual of WGSW-48000 The page includes the following fields: Object Description • L2 Table Aging Enable Enable or Disable switch L2 Table aging capability. • Aging Time Specifies the amount of time the MAC address remains in the L2 table before it is timed out, if no traffic from the source is detected.
  • Page 138: Port Mirroring

    User’s Manual of WGSW-48000 • Static MAC Address Specifies the MAC address to add. • Port Specifies the port number. • VLAN ID Specifies the VLAN ID of the MAC address. • Delete Removes the specified MAC address. 4.11.4 Port Mirroring Configure port Mirroring on this page.
  • Page 139: Admin Timeout

    User’s Manual of WGSW-48000 Figure 4-11-4 Port Mirroring The page includes the following fields: Object Description • Function Enables or disables port mirroring. • Ingress Mirror Specifies an Ingress Mirror port to which ingress traffic will be mirrored. • Egress Mirror Specifies an Egress Mirror port to which egress traffic will be mirrored.
  • Page 140: Firmware Upgrade

    User’s Manual of WGSW-48000 Object Description • Enable Web/Console Enable or Disable Admin Timeout function. The web/console connection session will not be terminated if function is disabled. Admin Timeout • Timeout Value Specifies Admin Timeout value. The web/console session will be terminated if no (Seconds) action on current web/console session during this time out value.
  • Page 141: Reboot

    User’s Manual of WGSW-48000 HTTP Firmware Upgrade The HTTP Firmware Upgrade page contains fields for downloading system image files from the Local File browser to the device. The Web Firmware Upgrade screen in Figure 4-11-7 appears. Figure 4-11-7 HTTP Firmware Upgrade 4.11.7 Reboot...
  • Page 142 User’s Manual of WGSW-48000 • Restore Configuration This option will restore the switch configuration to factory defaults. All to Factory Defaults configuration will be removed. Figure 4-11-9 Reboot dialogue Figure 4-11-10 Reboot message You can also check the PWR LED at the front panel to identify the System is load completely or not.
  • Page 143: Save Configurations

    User’s Manual of WGSW-48000 4.11.8 Save Configurations The page provides the ways to upgrade/backup switch configuration via TFTP/HTTP protocol. The screen in Figure 4-11-11 appears. Figure 4-11-11 Save Configurations HTTP Configuration Upgrade Click the “Browse” button of the main page, the system would pop up the file selection menu to choose saved configuration.
  • Page 144 User’s Manual of WGSW-48000 Select on the configuration file then click “Proceed”, the bottom of the browser shows the upload status. HTTP Configuration Backup Figure 4-11-13 HTTP configuration backup screenshot Select “Backup” and press the “Proceed” button to save the current configuration in manager workstation. The following...
  • Page 145 User’s Manual of WGSW-48000 Figure 4-11-15 File save screen...
  • Page 146: Logs Settings

    User’s Manual of WGSW-48000 4.11.9 Logs Settings This page allows you to log the messages happened in this system for later reference. There are 4 types of logging targets are provided for the logs, Memory Logs: The logs will be cleared after system reboot.
  • Page 147 User’s Manual of WGSW-48000 severity of each message determines the set of event logging devices to which are sent for each event logging device. The following table contains the Log Severity Levels: Severity Type Severity Description Example Level Emergency The system is not functioning.
  • Page 148: Memory Logs

    User’s Manual of WGSW-48000 • Server IP Address Specifies IP address of the server inn dotted decimal notation. Specifies UDP port of the server. The possible range is 1 to 65535. • Service UDP Port The default value is 514.
  • Page 149: Flash Logs

    User’s Manual of WGSW-48000 The page includes the following fields: Object Description • Index Indicates the global sequence number for the log. • Level ndicates the severity of the log. • Category Indicates the facility/category that the log belongs to.
  • Page 150: Ping Function

    User’s Manual of WGSW-48000 • Level Indicates the severity of the log. • Category Indicates the facility/category that the log belongs to. • Time Indicates the time when the log is recorded. • Message Shows the detailed description of the log.
  • Page 151 User’s Manual of WGSW-48000 2. A cable coupler is placed within 7 meters from the link partner. Figure 4-11-14 Cable Diagnostic Figure 4-11-15 Cable Diagnostic The page contains the following fields: This is the port to which the cable is connected.
  • Page 152: Dhcp Relay

    User’s Manual of WGSW-48000 4.11.15 DHCP Relay A DHCP Relay agent is configured to listen for DHCP or BOOTP broadcast from DHCP clients and then relay those messages to DHCP servers on different subnets. Figure 4-11-15 DHCP Relay The page includes the following fields:...
  • Page 153: Self Loop Detection

    User’s Manual of WGSW-48000 Figure 4-11-16 DHCP Option 82 The page includes the following fields: Object Description • Select VLAN Interface Selects desired VLAN groups to perform relay function. 4.11.17 Self Loop Detection Self Loop Detection means when one port produces a self loop and Switch can detect this situation. When it happens, the port will be disabled.
  • Page 154: Bootp Configure Download

    User’s Manual of WGSW-48000 The page includes the following fields: Object Description • Enable Port Self Enable or Disable port self loop detection function on the Managed Switch. Loop Detection • Recover Time Specifies port recover time value, 0 indicate the port will not auto recover.
  • Page 155: Statistics

    User’s Manual of WGSW-48000 4.12 Statistics This chapter shows Statistic of the Managed Switch. 4.12.1 802.1X Statistic This page provides detailed IEEE 802.1X statistics of each port running port-based authentication. The 802.1X Statistics screen Figure 4-12-1 appears. Figure 4-12-1 802.1X Statistic screenshot...
  • Page 156: Rmon Statistic

    User’s Manual of WGSW-48000 3) Supplicant Restart (3) 4) Reauthentication Failure (4) 5) AuthControlledPortControl set to ForceUnauthorized (5) 6) Port re-initialization (6) 7) Port Administratively Disabled (7) 8) Not Terminated Yet (999) 4.12.2 RMON Statistic In this table overview, each entry which created for each port was listed by showing owner and status fileds. Use the port select link to select which port details to be displayed.
  • Page 157 User’s Manual of WGSW-48000 Figure 4-12-3 Port detail RMON Statistic screenshot The port detail RMON statistic page includes the following fields: Object Description • Enable To enable/disable this interface statistics counters. • Clear Counter Clear all counters on this interface and restart by zero.
  • Page 158: Rmon Event

    User’s Manual of WGSW-48000 • Collisions indicates the collisions counted value. • Frames of 64 Bytes indicates the 64 bytes(and under) packets counted value. • Frames of 65 to 127 Bytes indicates the counted value which packets length are 65 to 127 bytes.
  • Page 159: Rmon Event Log

    User’s Manual of WGSW-48000 • Last Time Sent Indicates the value of sysUpTime at the time this event entry last generated an event by "xxD: xxH: xxM: xxS" format. • Owner Indicates the entry creator.('Monitor' means created by device itself).
  • Page 160: Rmon Alarm

    User’s Manual of WGSW-48000 [RFC 2819]: -- Each eventEntry may optionally specify that a log entry -- be created on its behalf whenever the event occurs. 4.12.5 RMON Alarm In this table overview, every valid entry will be listed in the same page to help user to get the overview image on each control entry setting.
  • Page 161 User’s Manual of WGSW-48000 • Value Indicates The value of the statistic during the last sampling period. And this value is for comparing the risingThreshold and fallingThreshold. • StartUp Alarm Indicates the alarm that may be sent when this entry is first set to valid.
  • Page 162: Rmon History

    User’s Manual of WGSW-48000 4.12.6 RMON History In this table overview, every enabled History Control entry will be listed in the same page to help user to enter the page on checking all the sampled entries by the selected specific History Control entry index.
  • Page 163 User’s Manual of WGSW-48000 • Source Interface Indicates the ethernet interface of this system. • Sampling Requested Indicates the total numbers of sampling • Current Number of Indicates how many smaple were created per this control entry. Samples • Sampling Interval Indicates the time period on sampling etherHistory data.
  • Page 164: Command Line Interface

    User’s Manual of WGSW-48000 5. COMMAND LINE INTERFACE 5.1 Accessing the CLI When accessing the management interface for the switch over a direct connection to the server’s console port, or via a Telnet connection, the switch can be managed by entering command keywords and parameters at the prompt. Using the switch's command-line interface (CLI) is very similar to entering commands on a UNIX system.
  • Page 165: Configure Ip Address

    User’s Manual of WGSW-48000 Global Configuration mode. Command> enable Username: admin Password: admin For security reason, please change and memorize the new password after this first setup. Only accept command in lowercase letter under console interface. Configure IP address The WGSW Managed Switch is shipped with default IP address as following.
  • Page 166 User’s Manual of WGSW-48000 Configure IP address On “Switch# ” prompt, type “configuration” to enter into global configuration mode. On “Switch(Config)# ” prompt, enter the following command and press <Enter>. As show in Figure 5-2. Switch(Config)# network parms 192.168.1.100 255.255.255.0 192.168.1.1 The previous command would apply the follow settings for the Managed Switch.
  • Page 167: Telnet Login

    User’s Manual of WGSW-48000 You can change these settings, if desired, after you log on. This management method is often preferred because you can remain connected and monitor the system during system reboots. Also, certain error messages are sent to the serial port, regardless of the interface through which the associated action was initiated.
  • Page 168: Command Line Mode

    User’s Manual of WGSW-48000 6. COMMAND LINE MODE The CLI groups all the commands in appropriate modes according to the nature of the command. A sample of the CLI command modes are described below. Each of the command modes supports specific software commands.
  • Page 169: User Mode Commands

    User’s Manual of WGSW-48000 mode. The command prompt shown at this level is: Command Prompt: Switch# Global Config Mode This mode permits the operator to make modifications to the running configuration. General setup commands are grouped in this mode. From the Global Configuration mode, the operator can enter the Interface Configuration mode. The command...
  • Page 170: Show Port

    User’s Manual of WGSW-48000 Syntax: ping <A.B.C.D> Parameters: <A.B.C.D> Mode User Mode show port Description: This command displays port status. Syntax: show port {<port#> | all} Parameters: {<port#> | all} Mode User Mode show network Description: This command displays switch IP configuration.
  • Page 171: Enable

    User’s Manual of WGSW-48000 Parameters: {<port#> | all} Mode User Mode enable Description: Enter into the Privileged Mode Syntax: enable Mode User Mode Save Description: This command is used to save configurations 6.2 Privileged Mode commands cable-diag port Description: This command is used to proceed cable diagnostic Syntax: cable-diag port <port ID>...
  • Page 172: Clear Command

    User’s Manual of WGSW-48000 6.2.1 Clear Command clear arl dynamic Description: This command is used to Clear dynamic arl table entries. Syntax: clear arl dynamic Mode Privileged Mode clear arl static mac Description: This command is used to clear static arl table entries Syntax: clear arl static mac <mac-addr>...
  • Page 173: Clear Igmpsnooping

    User’s Manual of WGSW-48000 clear igmpsnooping Description: This command is used to restore igmpsnooping configuration to factory default Syntax: clear igmpsnooping Mode Privileged Mode clear static-mcast Description: This command is used to clear static multicast groups Syntax: clear static-mcast Mode...
  • Page 174: Clear Vlan

    User’s Manual of WGSW-48000 Privileged Mode clear vlan Description: This command is used to delete all VLAN groups Syntax: clear vlan Mode Privileged Mode configuration Description: Enter into Global Configuration mode Syntax: configuration Mode Privileged Mode 6.2.2 Copy Command This command is used to upload file from switch to host, or download file to switch from host...
  • Page 175: Copy Tftp

    User’s Manual of WGSW-48000 This command is used to backup switch runtime image Syntax: copy system_image tftp <A.B.C.D> <filename> Parameters: <A.B.C.D> <filename> Mode Privileged Mode Example Switch#copy system_image tftp 192.168.1.100 image_file copy tftp Description: This command is used to download configuration or runtime image from host to switch.
  • Page 176: Logout

    User’s Manual of WGSW-48000 Privileged Mode logout Description: This command is used to exit current shell Syntax: logout Mode Privileged Mode ping Description: This command is used to proceed ping destination host Syntax: ping <A.B.C.D> Parameters: <A.B.C.D> Mode Privileged Mode...
  • Page 177: Show Command

    User’s Manual of WGSW-48000 6.2.3 Show Command This command is used to show configured data show qos Description: This command displays class of service information show qos cos Description: This command displays the cos mapping Syntax: show qos cos Mode...
  • Page 178: Show Qos Advanced Ip-Precedence

    User’s Manual of WGSW-48000 This command displays qos dscp mapping Syntax: show qos advanced dscp Mode Privileged Mode show qos advanced ip-precedence Description: This command displays qos ip precedence mapping Syntax: show qos advanced ip-precedence Mode Privileged Mode show qos port-based...
  • Page 179: Show Dot1X Config

    User’s Manual of WGSW-48000 show dot1x config Description: This command displays dot1x and port configuration Syntax: show dot1x config Mode Privileged Mode show dot1x radius Description: This command displays radius configuration Syntax: show dot1x radius Mode Privileged Mode show dot1x statistics...
  • Page 180: Show Igmpsnooping Groups

    User’s Manual of WGSW-48000 show igmpsnooping groups Description: This command is used to displays igmp groups information Syntax: show igmpsnooping groups Mode Privileged Mode show igmpsnooping info Description: This command displays IGMP Snooping configuration information Syntax: show igmpsnooping info Mode...
  • Page 181: Show Lldp

    User’s Manual of WGSW-48000 Privileged Mode show lldp Description: This command is use to displays lldp statistics show lldp statistic Description: This command is used to displays lldp statistic Syntax: show lldp statistic Mode Privileged Mode show lldp local Description:...
  • Page 182: Show Logging

    User’s Manual of WGSW-48000 Privileged Mode show logging Description: This command is used to displays trap records show logging memory-log Description: This command displays memory log Syntax: show logging memory-log Mode Privileged Mode show logging flash-log Description: This command displays flash logs...
  • Page 183: Show Port

    User’s Manual of WGSW-48000 show port Description: This command is used to displays port mode and settings, displays port status show port port-index Description: This command is used to specify an switch interface. Syntax: show port port-index <port-ID> Parameters: <port-ID>...
  • Page 184: Show Rate-Limit

    User’s Manual of WGSW-48000 This command is used to displays all interfaces’ status Syntax: show port-security all Mode Privileged Mode show rate-limit Description: This command is used to displays ingress and egress rate limit information show rate-limit port Description: This command is used to specify an switch interface Syntax: show rate-limit port <port-ID>...
  • Page 185: Show Snmp

    User’s Manual of WGSW-48000 Mode Privileged Mode show snmp Description: This command is used to displays all snmp config show snmp groups Description: This command displays all snmp groups Syntax: show snmp groups Mode Privileged Mode show snmp users Description:...
  • Page 186: Show Sntp

    User’s Manual of WGSW-48000 show sntp Description: This command is used to displays switch sntp information Syntax: show sntp Mode Privileged Mode show spanning-tree Description: This command displayss Spanning Tree information show spanning-tree interface Description: This command displays RSTP ports information...
  • Page 187: Show Spanning-Tree Mst Detailed

    User’s Manual of WGSW-48000 This command displays MST information show spanning-tree mst detailed Description: This command displays a MST instance information Syntax: show spanning-tree mst detailed <0..4094> Parameters: <0..4094> Mode Privileged Mode show spanning-tree mst instance Description: This command displays ports information on a MST instance Syntax: show spanning-tree mst instance <0..4094>...
  • Page 188: Show Storm-Control

    User’s Manual of WGSW-48000 show storm-control Description: This command is used to displays storm-control information Syntax: show storm-control Mode Privileged Mode show sysinfo Description: This command is used to displays system information including system up time. Syntax: show sysinfo Mode...
  • Page 189: Show Switch Mac-Table

    User’s Manual of WGSW-48000 show switch mac-table Description: This command is used to displays address resolution protocol cache show switch mac-table all Description: This command displays all element of the mac table. Syntax: show switch mac-table all Mode Privileged Mode...
  • Page 190: Show Switch Mac

    User’s Manual of WGSW-48000 Privileged Mode show switch mac Description: This command displays vlan and port info by the specific mac address Syntax: show switch mac Mode Privileged Mode show trapflags Description: This command is used to displays the value of trap flags that apply to the switch...
  • Page 191: Show Rmon

    User’s Manual of WGSW-48000 show rmon Description: This command displays rmon information. show rmon event Index Description: This command displays rmon event table. Syntax: show rmon event index <1..65535> Parameters: <1..65535> Mode Privileged Mode show rmon event Description: Syntax: Show rmon event<CR>...
  • Page 192: Show Rmon Alarm

    User’s Manual of WGSW-48000 show rmon alarm index <1..65535> Parameters: <1..65535> Mode Privileged Mode show rmon alarm Description: Syntax: show rmon alarm<CR> Parameters: <CR> Mode Privileged Mode show rmon history show rmon history index Description: This command displays enabled rmon history.
  • Page 193: Show Rmon Statistics

    User’s Manual of WGSW-48000 show rmon statistics Description: This command displayss port summary statistics. Syntax: Show rmon statistics <port-index> Parameters: <port-index> Mode Privileged Mode show poe port-index Description: This command is used to specify an switch poe interface Syntax: show poe port-index <port-ID>...
  • Page 194: Show Tacplus

    User’s Manual of WGSW-48000 show tacplus Description: This command is used to displays TACACS+ information, includes authentication type and server parameters. Syntax: show tacplus Mode Privileged Mode show arp Description: This command is used to displays table of static ARP.
  • Page 195: Show Dhcpsnooping Vlan

    User’s Manual of WGSW-48000 Privileged Mode show dhcpsnooping vlan Description: This command is used to displays dhcp snooping vlan. Syntax: show dhcpsnooping vlan Mode Privileged Mode show dhcpsnooping database Description: This command is used to displays dhcp snooping database entries.
  • Page 196: Show Ipsrcgd Config

    User’s Manual of WGSW-48000 show ipsrcgd config Description: This command is used to displays the configuration of IP Source Guard. Syntax: show ipsrcgd config Mode Privileged Mode show ipsrcgd ports Description: This command is used to displays ports which enabled IP Source Guard...
  • Page 197: Telnet

    User’s Manual of WGSW-48000 telnet Description: This command is used to telnet the other host. Syntax: telnet <A.B.C.D> Parameters: <A.B.C.D> Mode Privileged Mode...
  • Page 198: Exit

    User’s Manual of WGSW-48000 6.3 Global Config mode commands exit Description: This command is used to exit current shell Syntax: exit Mode Global Config 6.3.1 VLAN Command This command is used to configure vlan vlan add Description: This command is used to create a new vlan or some vlans...
  • Page 199: Vlan Delete

    User’s Manual of WGSW-48000 vlan delete Description: This command remove a existed vlan. Syntax: vlan delete <vlan-ID> Parameters: <vlan-ID> Mode Global Config vlan port Description: This command is used to configure 802.1Q port parameters for vlans vlan port all Description:...
  • Page 200: Vlan Port All Pvid

    User’s Manual of WGSW-48000 vlan port all pvid Description: This command is used to configure port pvid Syntax: vlan port all pvid <vlan-ID> Parameters: <vlan-ID> Mode Global Config vlan port ports Description: This command is used to configure multiple ports...
  • Page 201: Vlan Lag

    User’s Manual of WGSW-48000 vlan port ports pvid < vlan-ID> Parameters: < vlan-ID> Mode Global Config vlan lag This command is used to configure lag to a special vlan vlan lag vlan < vlan-id> exclude Description: This command is used to remove lag from a vlan Syntax: vlan lag vlan <...
  • Page 202: Bridge Aging-Time

    User’s Manual of WGSW-48000 Bridge aging-time Description: This command is used to configure switch aging time. Syntax: bridge aging-time <0-1048575> Parameters: <0-1048575> Mode Global Config 6.3.2 Link Aggregation Command lacp-syspri system-priority Description: This command is used to configure lacp system priority Syntax: lacp-syspri system-priority <0-65535>...
  • Page 203: Link Aggregation Delport

    User’s Manual of WGSW-48000 link aggregation delport Description: This command remove ports from LAG Link Aggregation delport all Description: This command remove all ports from a LAG Syntax: link-aggregation-delport all lag <LAG-ID> Parameters: <LAG-ID> Mode Global Config link aggregation delport lag Description: This command remove specify LAG group.
  • Page 204: Lldp Adv-Interval

    User’s Manual of WGSW-48000 Syntax: lldp disable Mode Global Config lldp adv-interval Description: This command is used to specify advertised interval in seconds. Syntax: lldp adv-interval <5-32768> Parameters: <5-32768> Mode Global Config lldp fast-startcnt Description: This command is used to specify fast-start count.
  • Page 205: Lldp Reinit-Delay

    User’s Manual of WGSW-48000 Syntax: lldp notify-interval <5-3600> Parameters: <5-3600> Mode Global Config lldp reinit-delay Description: This command is used to specify re-initialization delay in seconds Syntax: lldp reinit-delay <1-10> Parameters: <1-10> Mode Global Config lldp tx-delay Description: Transmit Delay in seconds Syntax: lldp tx-delay <1-8192>...
  • Page 206: Log Command

    User’s Manual of WGSW-48000 6.3.4 Log Command Description: This command is used to configure log server log log-server Description: This command is used to configure log server log log-server name <WORD>add Description: This command is used to specify log server name, enter a name, up to 12 characters, add a log server IP address Syntax: log log-server name <WORD>...
  • Page 207: Log Logging-Target Memory

    User’s Manual of WGSW-48000 log logging-target memory Description: This command is used to specify memory log notify-level Syntax: log logging-target memory {enable|disable} Parameters: {enable|disable} Mode Global Config log logging-target flash Description: This command is used to specify flash log notify-level...
  • Page 208: Radius-Server Ip

    User’s Manual of WGSW-48000 radius-server ip Description: This command is used to configure radius server Syntax: radius-server ip <IP addr> Parameters: <IP addr> Mode Global Config static-address This command is used to specify static address static-address add Description: This command is used to add static mac address Syntax: static-address add <mac addr>...
  • Page 209: Mgmt Command

    User’s Manual of WGSW-48000 6.3.5 Mgmt Command mgmt-accesslist ipaddr Description: This command specifies a management access IP for the DUT, up to 8 IP address can be set. Syntax: mgmt-accesslist ipaddr <IP addr> Parameters: <IP addr> Mode Global Config mgmt-accesslist enable Description: This command enables management access list.
  • Page 210: Monitor Disable

    User’s Manual of WGSW-48000 Mode Global Config monitor disable Description: This command disables port mirroring. Syntax: monitor disable Mode Global Config monitor des Description: Configure destination port. monitor des <port-ID> probetype bidirection Description: This command configures port monitor probetype as bi-direction traffic.
  • Page 211: Monitor Des Probetype Egress

    User’s Manual of WGSW-48000 Switch(config)# monitor des 1 probetype ingress src 2-8 monitor des <port-ID> probetype egress Description: This command configures port monitor probetype as egress traffic. Syntax: monitor des <port-ID> probetype egress src <port list> Parameters: <port list> Mode...
  • Page 212: Dot1X Port-Control Enable Port

    User’s Manual of WGSW-48000 dot1x port-control enable port Description: This command set auto-authorized on a list of ports. Syntax: dot1x port-control enable port <port list> Parameters: <port list> Mode Global Config dot1x port-control disable port Description: This command set force authorized on a list of ports.
  • Page 213: Network Parms

    User’s Manual of WGSW-48000 network parms Description: This command configures static IP address of the switch. Syntax: network parms <IP addr> <subnet mask> <gateway> Parameters: <IP addr> <subnet mask> <gateway> Mode Global Config network protocol Description: This command configure switch dhcp client.
  • Page 214: Network Dhcp-Relay Vlan

    User’s Manual of WGSW-48000 network dhcp-relay server <A.B.C.D> Parameters: <A.B.C.D> Mode Global Config network dhcp-relay vlan Description: Configure dhcp-relay option-82 vlan information. network dhcp-relay vlan <vlan-ID> add Description: This command enters a vlan which will be enable DHCP-relay option82. Syntax: network dhcp-relay vlan <vlan-ID>...
  • Page 215: Network Sysinfo Syslocate

    User’s Manual of WGSW-48000 Global Config network sysinfo syslocate Description: This command configures system location. Syntax: network sysinfo syslocate <WORD> Parameters: <WORD> Mode Global Config network sysinfo syscontact Description: This command configures system contact information. Syntax: network sysinfo syscontact <WORD>...
  • Page 216: Port-All Auto-Negotiate

    User’s Manual of WGSW-48000 This command configures ports admin mode. Syntax: port-all admin-mode {enable | disable} Parameters: {enable | disable} Mode Global Config port-all auto-negotiate Description: This command configures ports auto-negotiation mode. Syntax: port-all auto-negotiate {enable|disable} Parameters: {enable|disable} Mode Global Config...
  • Page 217: Port-All Portsec-Lockmode Dynamic Max-Entries

    User’s Manual of WGSW-48000 port-all portsec-lockmode dynamic max-entries Description: This command enable limited dynamic lock mode. Syntax: port-all portsec-lockmode dynamic max-entries <0-24> Parameters: <0-24> Mode Global Config port-all rate-limit Description: Configure rate limit value on all ports. port-all rate-limit egress Description: This command specifies egress rate limit.
  • Page 218: Port-All Speed

    User’s Manual of WGSW-48000 Syntax: port-all rmon-counter {enable|disable} Parameters: {enable|disable} Mode Global Config port-all speed Description: This command configures ports speed. Syntax: port-all speed {10hd|10fd|100hd|100fd} Parameters: {10hd|10fd|100hd|100fd} Mode Global Config port-all storm-control Description: Configure all ports’ storm control settings. port-all storm-control disable Description: This command disables storm control.
  • Page 219: Port-All Storm-Control Broadcast-Multicast

    User’s Manual of WGSW-48000 Global Config port-all storm-control broadcast-multicast Description: This command configures storm control for broadcast and multicast. Syntax: port-all Storm-Control broadcast-multicast <value> Parameters: <value> Mode Global Config port-all storm-control broadcast-unknown Description: This command configures storm control for broadcast and unknown unicast.
  • Page 220: Qos Qos-Advanced Dscp

    User’s Manual of WGSW-48000 qos qos-advanced DSCP Description: This command enables DSCP mode. Syntax: qos qos-advanced DSCP Mode Global Config qos qos-advanced ip_precedence Description: This command enables IP Precedence mode. Syntax: qos qos-advanced ip_precedence Mode Global Config qos qos-advanced none Description: This command disables qos advanced mode.
  • Page 221: Qos Port-Based Port Status

    User’s Manual of WGSW-48000 Syntax: qos dscp <0-63> queue <1-4> Parameters: <0-63> <1-4> Mode Global Config qos port-based port <WORD>status Description: This command configures port-based priority mapping. Syntax: qos port-based port <WORD>status {enable | disable} Parameters: {enable | disable} Mode...
  • Page 222: Qos Ip-Precedence

    User’s Manual of WGSW-48000 qos ip-precedence Description: This command configures IP precedence queue mapping. Syntax: qos ip-precedence <0-7> queue <1-4> Parameters: <0-7> <1-4> Mode Global Config qos wrr weight Description: This command configures queue weight for weight round robin. Syntax: qos wrr weight <1-15>...
  • Page 223: Set Commang

    User’s Manual of WGSW-48000 6.3.11 Set Commang set IGMP Description: Configure IGMP snooping. set igmp enable Description: This command enables igmp snooping. Syntax: set igmp enable Mode Global Config set igmp disable Description: This command disables IGMP snooping. Syntax: set igmp disable...
  • Page 224: Set Igmp Query-Interval

    User’s Manual of WGSW-48000 Parameters: <1-20> Mode Global Config set igmp query-interval Description: This command specifies igmp query interval<secs>. Syntax: set igmp query-interval <10-600> Parameters: <10-600> Mode Global Config set igmp query-resinterval Description: This command specifies igmp query response interval<secs>.
  • Page 225: Set Igmp-Querier

    User’s Manual of WGSW-48000 Syntax: set igmp router-port ports <port list> Parameters: <port list> Mode Global Config Example Switch(config)# set igmp router-port ports 1-10 set igmp-querier Description: This command configures igmp querier. Syntax: set igmp-querier {enable | disable} Parameters: {enable | disable}...
  • Page 226: Set Static-Mcast Name Delete

    User’s Manual of WGSW-48000 set static-mcast name <WORD> add vid <vlan-ID> mac <mac-addr>member port <port list> Parameters: <vlan-ID> <mac-addr> <port list> Mode Global Config set static-mcast name <WORD>delete Description: This command delete a static multicast group. Syntax: set static-mcast name <WORD>delete...
  • Page 227: Snmp Group Delete

    User’s Manual of WGSW-48000 Global Config snmp group delete Description: This command delete a snmp group. Syntax: snmp group delete <WORD> Parameters: <WORD> Mode Global Config snmp user snmp user add Description: This command creates a snmp user. Syntax: snmp user add <user name> group <group name> version <1-3>...
  • Page 228: Snmp Community Add

    User’s Manual of WGSW-48000 snmp community add Description: This command creates a community. Syntax: snmp community add <community name> group <group name> mgmt-ip <ip-addr> Parameters: <community name> <group name> <ip-addr> Mode Global Config snmp community delete Description: This command deletes a community.
  • Page 229: Snmp Trapstation Add Community Type Linkchange Trap-Version

    User’s Manual of WGSW-48000 snmp trapstation add <ip-addr> community <community name> type linkchange trap-version Description: Send trap when port link change. Syntax: snmp trapstation add <ip-addr> community <community name> type linkchange trap-version {1|2} Parameters: {1|2} Mode Global Config snmp trapstation add <ip-addr> community <community name> type both trap-version Description: Send trap when system reboot or port link change.
  • Page 230: Sntp Command

    User’s Manual of WGSW-48000 Global Config 6.3.13 SNTP Command sntp daylight Description: This command enables or disables the daylight saving configuration. Syntax: sntp daylight {enable|disable} Parameters: {enable|disable} Mode Global Config sntp localtime Description: Configure the local time. sntp localtime enable Description: This command enables local time.
  • Page 231: Sntp Server Enable

    User’s Manual of WGSW-48000 <second> Mode Global Config sntp server sntp server enable Description: This command enables sntp server. Syntax: sntp server enable Mode Global Config sntp server ipaddr Description: This command sets sntp server IP address. Syntax: sntp server ipaddr <IP-addr>...
  • Page 232: Spanning-Tree Command

    User’s Manual of WGSW-48000 Syntax: sntp timezone <1-75> Parameters: <1-75> Mode Global Config 6.3.14 Spanning-tree Command spanning-tree forceversion Description: This command configures Spanning Tree protocol version. spanning-tree forceversion 8021s Description: This command selects spanning tree type as 8021.s(multiple Spanning Tree).
  • Page 233: Spanning-Tree Configuration

    User’s Manual of WGSW-48000 spanning-tree configuration Description: This command configures MSTP region name and revision. spanning-tree configuration name Description: This command configures MSTP region name (Max.32 chars). Syntax: spanning-tree configuration name <WORD> Parameters: <WORD> Mode Global Config spanning-tree configuration revision Description: This command configures revision level.
  • Page 234: Spanning-Tree Max-Hops

    User’s Manual of WGSW-48000 Parameters: <6-40> Mode Global Config spanning-tree max-hops Description: This command configure the number of hops in a region. Syntax: spanning-tree max-hops <1-40> Parameters: <1-40> Mode Global Config spanning-tree port spanning-tree port all Description: This command specifies RSTP capability for all ports.
  • Page 235: Spanning-Tree Port Priority

    User’s Manual of WGSW-48000 spanning-tree port priority Description: This command configures RSTP port priority. Syntax: spanning-tree port priority <0-24> Parameters: <0-24> Mode Global Config spanning-tree port edge Description: This command configures STP edge. Syntax: spanning-tree port edge {enable|disable} ports <port-list>...
  • Page 236: Spanning-Tree Port Root-Guard

    User’s Manual of WGSW-48000 Mode Global Config spanning-tree port root-guard Description: This command is used to configure stp root guard. Syntax: spanning-tree port root-guard {enable|disable} ports <port-list> Parameters: {enable|disable} <port-list> Mode Global Config spanning-tree priority Description: This command configures RSTP bridge priority value.
  • Page 237: Spanning-Tree Mst Instance Delete

    User’s Manual of WGSW-48000 <vlan list> <MST ID> Mode Global Config Example Switch(Config)# Spanning-Tree mst instance add vlan 2-5 mstpid 2 Switch(Config)# Spanning-Tree mst instance add vlan 6 mstpid 3 spanning-tree mst instance delete Description: This command removes the last MST instance.
  • Page 238: Spanning-Tree Mst Bridgepri

    User’s Manual of WGSW-48000 spanning-tree mst bridgepri Description: This command configures bridge priority for a MST instance. Syntax: spanning-tree mst bridgepri <MST ID> <priority> Parameters: <MST ID> <priority> Mode Global Config spanning-tree mst cost Description: This command configures port path cost in a MST instance.
  • Page 239: Interface

    User’s Manual of WGSW-48000 user password Mode Global Config Interface Description: This command enters into configure interface mode. Syntax: Interface <port-ID> Parameters: <port-ID> Mode Global Config 6.3.15 RMON Command rmon Description: This command is used to configure RMON. rmon event index Description: This command creates rmon event entry.
  • Page 240: Rmon Del

    User’s Manual of WGSW-48000 rmon alarm index < 1..65535 >interval<0..3600>interface<port number>counter<1..17>sample{absolute|delta}start{rasing|falling|all}rthreshold<0..65535>fthreshold<0..65535> reindex <0..65535> feindex<0..65535> owner< WORD> Parameters: Mode Global Config Example Switch(Config)# RMON alarm index 1 interval 10 interface counter 1 sample delta start all rthreshold 100 fthreshold 10 reindex 1 feindex 0 owner test...
  • Page 241: Access-List Name Action

    User’s Manual of WGSW-48000 Syntax: access-list name <WORD> add priority <1-65535> Parameters: <1-65535> Mode Global Config access-list name <WORD> action access-list name <WORD> action deny Description: This command denies an ACL entry. Syntax: access-list name <WORD> action deny Mode Global Config access-list name <WORD>...
  • Page 242: Access-List Name Clears Dst Ip

    User’s Manual of WGSW-48000 access-list name <WORD> clears DST IP Description: This command clears the destination IP/subnet mask filter. Syntax: access-list name <WORD> clear DST IP Mode Global Config access-list name <WORD> clear L4port access-list name <WORD> clear L4port SRC port Description: This command clears TCP/UDP source port filter.
  • Page 243: Access-List Name Clear Mac Da

    User’s Manual of WGSW-48000 Syntax: Access-list name <WORD> clear mac SA Mode Global Config access-list name <WORD> clear MAC DA Description: This command clears a destination mac address. Syntax: Access-list name <WORD> clear mac DA. Mode Global Config access-list name <WORD> clear VID Description: This command clears the 802.1Q VLAN tag of packet.
  • Page 244: Access-List Name {Enable|Disable}

    User’s Manual of WGSW-48000 access-list name <WORD> {enable|disable} Description: This command enables/disables the ACL entry. Syntax: access-list name <WORD> {enable|disable} Mode Global Config access-list name <WORD> set access-list name <WORD> set priority Description: This command specifies ACL entry priority. Syntax: access-list name <WORD>...
  • Page 245: Access-List Name Set L4Port

    User’s Manual of WGSW-48000 Parameters: <IP-addr> <mask-addr> Mode Global Config access-list name <WORD> set L4port Description: This command specifies the TCP/UDP port range. access-list name <WORD> set l4port SRC-port SRE-port Description: This command specifies the source TCP/UDP port range. Syntax: Access-list name <WORD>...
  • Page 246: Access-List Name Set Mac-Mode

    User’s Manual of WGSW-48000 Mode Global Config access-list name <WORD> set mac-mode Description: Specify ACL entry priority. access-list name <WORD> set mac-mode mac SA Description: This command specifies a source mac address. Syntax: access-list name <WORD> set mac-mode mac SA <mac-addr> <mask-addr>...
  • Page 247: Access-List Name Set Portlist

    User’s Manual of WGSW-48000 access-list name <name> set portlist Description: This command is used to specify an acl entry to be work on a list of ports. Syntax: access-list name <name> set portlist <LINE | port_id> Parameters: <LINE | port_id>...
  • Page 248: Arp Dynamic Vlan

    User’s Manual of WGSW-48000 arp dynamic ports {trust|untrust} <port-list> Parameters: {trust|untrust} <port-list> Mode Global Config Example Swtich<Config># arp dynamic ports trust 1-4 Swtich<Config># arp dynamic ports untrust 4 arp dynamic vlan Description: This command set add/remove dynamic arp on specified vlan.
  • Page 249: Dos Command

    User’s Manual of WGSW-48000 6.3.17 Dos Command dos land Description: This command enables and disables land-type attacks prevention. Syntax: dos land {enable|disable} Parameters: {enable|disable} Mode Global Config dos blat Description: This command enables and disables blat-type attack prevention. Syntax: dos blat {enable|disable}...
  • Page 250: Dos Ports Ping-Flooding

    User’s Manual of WGSW-48000 Syntax: dos ports smurf {enable|disable} Parameters: {enable|disable} Mode Global Config dos ports ping-flooding Description: This command enables and disables ping-flooding-type attack prevention. Syntax: dos ports ping-flooding {enable|disable} Parameters: {enable|disable} Mode Global Config dos ports synack-flooding Description: This command enables and disables SYNACK -flooding -type attack prevention.
  • Page 251: Tacplus Add Server

    User’s Manual of WGSW-48000 tacplus authen_type {local | tacplus | localandtacplus} Parameters: {local | tacplus | localandtacplus} Mode Global Config tacplus add server Description: This command is used to add a new TACACS+ server and set server IP address, priority, key string, authentication port and timeout for reply.
  • Page 252: Dhcp Snooping Command

    User’s Manual of WGSW-48000 { enable | disable } Mode Global Config 6.3.19 DHCP Snooping Command dhcpsnooping enable Description: This command is used to enable dhcp snooping functions. Syntax: dhcpsnooping enable Mode Global Confi dhcpsnooping disable Description: This command is used to disable dhcp snooping functions.
  • Page 253: Dhcpsnooping Ports

    User’s Manual of WGSW-48000 Parameters: {enable|disable} Mode Global Config dhcpsnooping ports Description: This command is used to set ports to trust or untrust. dhcpsnooping ports trust Description: This command is used to set ports to trust Syntax: dhcpsnooping ports trust <port-list>...
  • Page 254: Dhcpsnooping Vlan Remove

    User’s Manual of WGSW-48000 Parameters: <vlan-id> Mode Global Config dhcpsnooping vlan remove Description: This command is used to disable dhcp snooping in a specified vlan. Syntax: dhcpsnooping vlan remove from <vlan-id> to <vlan-id> Parameters: <vlan-id> Mode Global Config dhcpsnooping static Description: This command is used to configure dhcp static entry.
  • Page 255: Dhcpsnooping Dyamic

    User’s Manual of WGSW-48000 <A.B.C.D> <mac-address> <port-id> <vlan-id> Mode Global Config dhcpsnooping dyamic Description: This command is used to configure dhcp dynamic entry. dhcpsnooping dynamic add ip Description: This command is used to add a dynamic dhcp entry. Syntax: dhcpsnooping dynamic add ip <A.B.C.D> mac <mac-address> port <port-id> vid <vlan-id> lease-time <1..9999999>...
  • Page 256: Loop_Detect Command

    User’s Manual of WGSW-48000 6.3.19 Loop_detect Command Loop_detect enable Description: This command is used to enable port self-loop detection. Syntax: loop_detect enable Mode Global Config loop_detect disable Description: This command is used to disable port self-loop detection. Syntax: loop_detect disable...
  • Page 257: Gvrp Command

    User’s Manual of WGSW-48000 6.3.21 GVRP Command gvrp enable Description: This command is used to enable gvrp function globally. Syntax: gvrp enable Mode Global Config gvrp disable Description: This command is used to disable gvrp function globally. Syntax: gvrp disable...
  • Page 258: Gvrp Port_Status

    User’s Manual of WGSW-48000 gvrp port_status Description: This command is used to displays the gvrp port information. Syntax: gvrp port_status <port-list> Parameters: <port-list> Mode Global Config https Description: This command is used to set https enable or disable. Syntax: https { enable | disable }...
  • Page 259: Ssh Command

    User’s Manual of WGSW-48000 This command is used to renew bootp. Syntax: bootp renew Mode Global Config 6.3.23 SSH Command ssh enable Description: This command is used to enable ssh function. Syntax: ssh enable Mode Global Config ssh disable Description: This command is used to disable ssh function.
  • Page 260: Ip Source Guard Command

    User’s Manual of WGSW-48000 6.3.24 IP Source Guard Command ipsrcgd enable Description: This command is used to enable ip source guard function. Syntax: ipsrcgd enable Mode Global Config ipsrcgd disable Description: This command is used to disable ip source guard function.
  • Page 261: Ipsrcgd Retry Interval

    User’s Manual of WGSW-48000 Mode Global Config ipsrcgd retry interval Description: This command is used to retry inactive entries after a interval. Syntax: ipsrcgd retry interval <0-1440> Parameters: <0-1440> Mode Global Config 6.4 Interface Config mode commands exit Description: Exit current shell...
  • Page 262: Lacp Admin

    User’s Manual of WGSW-48000 lacp admin Description: Configure admin key of port Syntax: lacp admin <0 ..65535> Parameters: <0 ..65535> Mode Interface Config Example switch(interface g1)#lacp admin 36768 lacp priority Description: Configure lacp port priority Syntax: lacp priority <0..65535> Parameters: <0..65535>...
  • Page 263: Lldp Command

    User’s Manual of WGSW-48000 Mode Interface Config 6.4.2 LLDP Command An lldp agent can transmit information about the capabilities and current status of the system associated with its MSAP identifier. The lldp agent can also receive information about the capabilities and current status of the system associated with a remote MSAP identifier.
  • Page 264: Admin-Mode

    User’s Manual of WGSW-48000 Interface Config 8021 set Description: Status of local-802.1 settings Syntax: lldp tlvs-tx {enable | disable} option 8021 {pvid | vlanname | protocol-id} Parameters: {enable | disable} {pvid | vlanname | protocol-id} Mode Interface Config Example switch(interdface 1)lldp tlvs enable option 8021 pvid 1...
  • Page 265: Auto-Negotiate

    User’s Manual of WGSW-48000 auto-negotiate Description: Configure auto-negotiate mode on a port Syntax: auto-negotiate {enable | disable} Parameters: {enable | disable} Mode Interface Config speed Description: Set port speed to 10Mbps half duplex/ 10Mbps full/ 100Mbps half/ 100Mbps full/ 1000Mbps 100FX mode/1000base-x full .
  • Page 266: Port-Security Lock-Mode

    User’s Manual of WGSW-48000 {add|delete} <sourcemac > Mode Interface Config port-security lock-mode Description: This command disable port security or specify static lock mode. Syntax: port-security lock-mode {none | static} Parameters: {none | static} Mode Interface Config port-security lock-mode dynamic max-entries 24 Description: This command enable limited dynamic lock mode,and specify maximin learning entries for limited dynamic lock mode.the...
  • Page 267: Qos Port-Based Status

    User’s Manual of WGSW-48000 Qos port-based status Description: This command is used to set port-based status. Syntax: qos port-based status {enable|disable} Parameters: {enable|disable} Mode Interface Config 6.4.4 Rate-limit Command Description: rate-limit egress rate-limit egress enable token bsize Description: This command limits egress rate, which the unit is Kbps.
  • Page 268: Storm-Control

    User’s Manual of WGSW-48000 storm-control Description: Enable/disable storm control. Syntax: storm-control {enable | disable} Parameters: {enable | disable} Mode Interface Config storm-control broadcast Description: This command storm control for broadcast only, and limited value :0,64,256,1024,10240,65536.102400,1024000,which the unit is Kbps and 0 means no limit.
  • Page 269: Storm-Control All-Cast

    User’s Manual of WGSW-48000 <rate> Mode Interface Config Example Switch(Interface 1)# storm-control broadcast-unknown 64 storm-control all-cast Description: This command storm control limited value :0,64,256,1024,10240,65536.102400,1024000,which the unit is Kbps and 0 means no limit. Syntax: storm-control all-cast <rate> Parameters: <rate> Mode...
  • Page 270: Spanning Tree Command

    User’s Manual of WGSW-48000 6.4.5 Spanning tree Command spanning-tree cost Description: This command configure RSTP port path cost, path cost value:0~200000000. Syntax: spanning-tree cost <pathcost> Parameters: <pathcost> Mode Interface Config spanning-tree edge Description: This command configure edge property Syntax: spanning-tree edge {enable|disable}...
  • Page 271: Spanning-Tree Mst Cost

    User’s Manual of WGSW-48000 Syntax: spanning-tree migration-check {enable|disable} Parameters: {enable|disable} Mode Interface Config spanning-tree mst This command configures multiple spanning tree instance. spanning-tree mst cost Description: This command configure the path cost on a MST instance :1~200000000. Syntax: spanning-tree mst cost <MST ID> <pathcost>...
  • Page 272: Spanning-Tree Priority

    User’s Manual of WGSW-48000 Mode Interface Config spanning-tree priority Description: This command configure RSTP port priority:0~240 Syntax: spanning-tree priority <0..240> Parameters: <0..240> Mode Interface Config 6.4.6 VLAN Command vlan participation This command join or leave a port to a vlan.
  • Page 273: Vlan Protected

    User’s Manual of WGSW-48000 vlan protected Description: This command configures port protected property. Syntax: vlan protected {enable|disable} Parameters: {enable|disable} Mode Interface Config vlan dropnq Description: This command configure port drop none 802.1Q frame. Syntax: vlan dropnq {enable|disable} Parameters: {enable|disable} Mode...
  • Page 274 User’s Manual of WGSW-48000 <port number> Mode Interface Config Example Switch(Interface 1)# interface g1...
  • Page 275: Switch Operation

    User’s Manual of WGSW-48000 7. SWITCH OPERATION 7.1 Address Table The Switch is implemented with an address table. This address table composed of many entries. Each entry is used to store the address information of some node in network, including MAC address, port no, etc. This in-formation comes from the learning process of Ethernet Switch.
  • Page 276 User’s Manual of WGSW-48000 when a connection is established with another network device (usually at Power On or Reset). This is done by detect the modes and speeds at the second of both device is connected and capable of, both 10Base-T and 100Base-TX devices can connect with the port in either Half- or Full-Duplex mode.
  • Page 277: Trouble Shooting

    User’s Manual of WGSW-48000 8. TROUBLE SHOOTING This chapter contains information to help you solve problems. If the Ethernet Switch is not functioning properly, make sure the Ethernet Switch was set up according to instructions in this manual. ■ The Link LED is not lit...
  • Page 278 User’s Manual of WGSW-48000 While IP Address be changed or forgotten admin password – To reset the IP address to the default IP Address “192.168.0.100” or reset the password to default value. Press the hardware reset button at the front panel about 10 seconds. After the device is rebooted, you can login the management WEB interface within the same subnet of 192.168.0.xx.
  • Page 279: Appendex A

    User’s Manual of WGSW-48000 APPENDEX A A.1 Switch's RJ-45 Pin Assignments 1000Mbps, 1000Base T Contact MDI-X BI_DA+ BI_DB+ BI_DA- BI_DB- BI_DB+ BI_DA+ BI_DC+ BI_DD+ BI_DC- BI_DD- BI_DB- BI_DA- BI_DD+ BI_DC+ BI_DD- BI_DC- Implicit implementation of the crossover function within a twisted-pair cable, or at a wiring panel, while not expressly forbidden, is beyond the scope of this standard.
  • Page 280 User’s Manual of WGSW-48000 The standard cable, RJ-45 pin assignment The standard RJ-45 receptacle/connector There are 8 wires on a standard UTP/STP cable and each wire is color-coded. The following shows the pin allocation and color of straight cable and crossover cable connection:...
  • Page 281: A.3 Available Modules

    User’s Manual of WGSW-48000 A.3 Available Modules The following list the available Modules for WGSW-48000 MGB-GT SFP-port 1000Base-T Module MGB-SX SFP-port 1000Base-SX mini-GBIC module MGB-LX SFP-port 1000Base-LX mini-GBIC module MGB-L50 SFP-port 1000Base-LX mini-GBIC module-50KM MGB-L70 SFP-port 1000Base-LX mini-GBIC module-70KM MGB-L120...
  • Page 282: Appendex B : Glossary

    User’s Manual of WGSW-48000 APPENDEX B : GLOSSARY ACE is an acronym for Access Control Entry. It describes access permission associated with a particular ACE ID. There are three ACE frame types (Ethernet Type, ARP, and IPv4) and two ACE actions (permit and deny). The ACE also contains many detailed, different parameter options that are available for individual application.
  • Page 283 User’s Manual of WGSW-48000 DES is an acronym for Data Encryption Standard. It provides a complete description of a mathematical algorithm for encrypting (enciphering) and decrypting (deciphering) binary coded information. Encrypting data converts it to an unintelligible form called cipher. Decrypting cipher converts the data back to its original form called plaintext.
  • Page 284 User’s Manual of WGSW-48000 DSCP is an acronym for Differentiated Services Code Point. It is a field in the header of IP packets for packet classification purposes. Ethernet Type Ethernet Type, or EtherType, is a field in the Ethernet MAC header, defined by the Ethernet networking standard. It is used to indicate which protocol is being transported in an Ethernet frame.
  • Page 285 User’s Manual of WGSW-48000 HTTPS provide authentication and encrypted communication and is widely used on the World Wide Web for security-sensitive communication such as payment transactions and corporate logons. HTTPS is really just the use of Netscape's Secure Socket Layer (SSL) as a sublayer under its regular HTTP application layering.
  • Page 286 User’s Manual of WGSW-48000 the server, you must use your mail client to generate local folders, copy messages to your local hard drive, and then delete and expunge the messages from the server. IP is an acronym for Internet Protocol. It is a protocol used for communicating data across a internet network.
  • Page 287 User’s Manual of WGSW-48000 addresses. Dynamic entries are removed from the MAC table if no frame with the corresponding SMAC address have been seen after a configurable age time. MD5 is an acronym for Message-Digest algorithm 5. MD5 is a message digest algorithm, used cryptographic hash function with a 128-bit hash value.
  • Page 288 User’s Manual of WGSW-48000 PING ping is a program that sends a series of packets over a network or the Internet to a specific computer in order to generate a response from that computer. The other computer responds with an acknowledgment that it received the packets.
  • Page 289 User’s Manual of WGSW-48000 specific QoS class on specific traffic objects. Each accessible traffic object contains an identifier to its QCL. The privileges determine specific traffic object to specific QoS class. QoS is an acronym for Quality of Service. It is a method to guarantee a bandwidth relationship between individual applications or protocols.
  • Page 290 User’s Manual of WGSW-48000 Samba can also register itself with the master browser on the network so that it would appear in the listing of hosts in Microsoft Windows "Neighborhood Network". SHA is an acronym for Secure Hash Algorithm. It designed by the National Security Agency (NSA) and published by the NIST as a U.S.
  • Page 291 User’s Manual of WGSW-48000 TCP is an acronym for Transmission Control Protocol. It is a communications protocol that uses the Internet Protocol (IP) to exchange the messages between computers. The TCP protocol guarantees reliable and in-order delivery of data from sender to receiver and distinguishes data for multiple connections by concurrent applications (for example, Web server and e-mail server) running on the same host.
  • Page 292 User’s Manual of WGSW-48000 UDP is an acronym for User Datagram Protocol. It is a communications protocol that uses the Internet Protocol (IP) to exchange the messages between computers. UDP is an alternative to the Transmission Control Protocol (TCP) that uses the Internet Protocol (IP). Unlike TCP, UDP does not provide the service of dividing a message into packet datagrams, and UDP doesn't provide reassembling and sequencing of the packets.
  • Page 293: Ec Declaration Of Conformity

    EC Declaration of Conformity For the following equipment: *Type of Product: 48-Port 10/100/1000Mbps with 4 Shared SFP Managed Gigabit Switch *Model Number: WGSW-48000 * Produced by: Manufacturer‘s Name : Planet Technology Corp. Manufacturer‘s Address: 11F, No 96, Min Chuan Road, Hsin Tien, Taipei, Taiwan, R.O.C.
