Summary of Contents for Planet Networking & Communication FNSW-1601

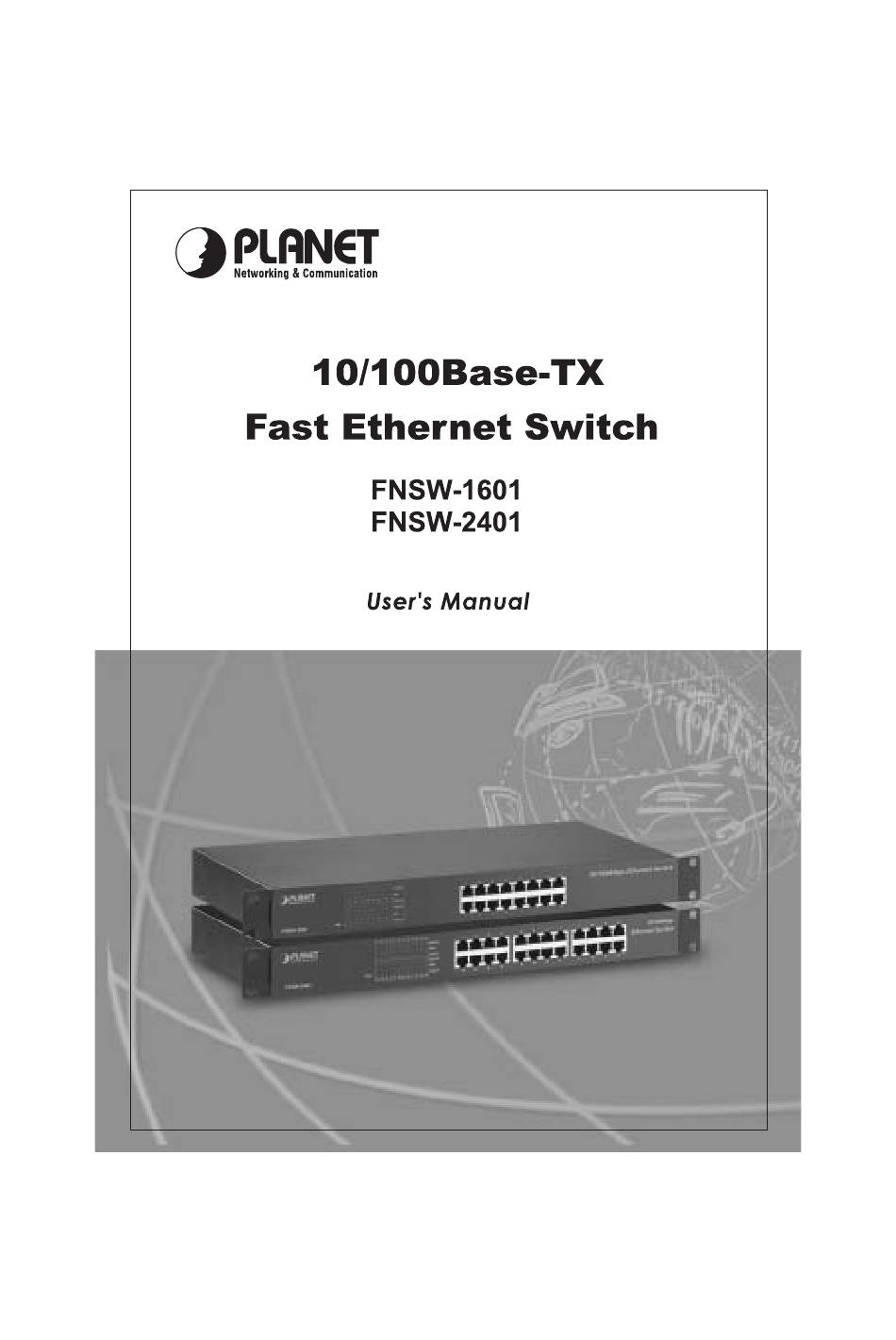

- Page 2 In this User's Manual "Fast Ethernet Switch" is used for any/all of the PLANET Switch models of Ethernet Switches listed on the title page. Important differences between models will be specified. Reversion PLANET Fast Ethernet Switch User's Manual FOR MODELS: FNSW-1601, FNSW-2401 Part No.: 2010- 000007- 002...
-
Page 3: Table Of Contents
Table of Contents CHAPTER 1 UNPACKING INFORMATION......1 CHAPTER 2 PRODUCT INTRODUCTION......3 .............3 EATURES ..............4 RONT ANEL 2.2.1 Ports Speed ............4 2.2.2 Cabling ..............4 2.2.3 Status LEDs ............5 ............6 ANEL 2.3.1 Power Connector ..........6 CHAPTER 3 INSTALLATION..........7 .........7 OUNT NSTALLATION ..........7 ESKTOP NSTALLATION CHAPTER 4 OPTIMIZING CONFIGURATION.......9... - Page 4 This page intentionally left blank!
-
Page 5: Chapter 1 Unpacking Information
CHAPTER 1 UNPACKING INFORMATION Thank you for purchasing a PLANET Fast Ethernet Switches. Before continuing, please check the contents of the product package. This product package should contain the following items: One Fast Ethernet Switch One Power Cord Two Rack-Mounting Brackets with Attachment Screws This User’s Manual Please inform your local dealer/supplier immediately if any item is found to be defective, damaged or missing. - Page 6 This page intentionally left blank! - 2 -...
-
Page 7: Chapter 2 Product Introduction
CHAPTER 2 PRODUCT INTRODUCTION Fast Ethernet Switches are multi-speed, versatile network de- vices combining both standard and "Big-Pipe" ports under the same hood. 2.1 Key Features Compliant with IEEE802.3 and 802.3u standards for 100Base-TX 16/24-port Fast Ethernet Switch, pure 10/100Base-TX Wire-speed "Store-and-Forward"... -
Page 8: Front Panel

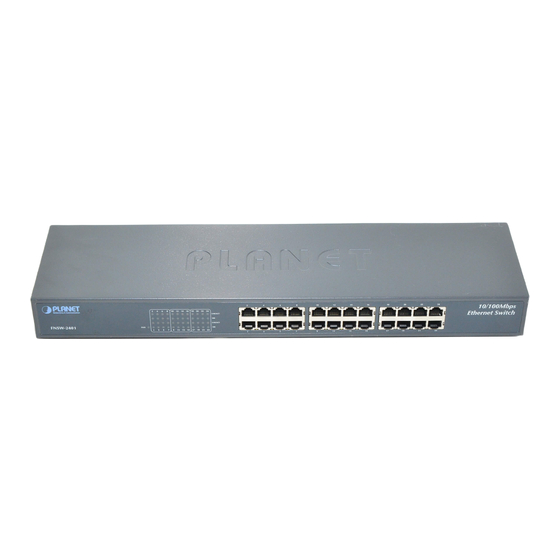

2.2 Front Panel Figure 1: Front View of the FNSW-1601 Figure 2: Front View of the FNSW-2401 2.2.1 Ports Speed 100Base-TX All 100Base-TX ports come with auto-negotiation capability. They automatically support 100Base-TX and 10Base-T networks. Users only need to plug a working network device into one of the 100Base-TX ports, then turn on the hub. -
Page 9: Status Leds
2.2.3 Status LEDs One green LED to show power On/Off is on the front panel. Also, each port has three status LED indicators, as shown below. Label Status / Meaning Description Color Steady Link Lit to indicate a valid physical OWER Green UTP/STP connection exists... -
Page 10: The Rear Panel
2.3 The Rear Panel AC inlet Figure 3: Rear View for the Switch 2.3.1 Power Connector The Power Connector is designed to be used with the power cord included in the product package. Attach the female end of the cord to the power connector and the male end of the cord to a grounded power outlet. -
Page 11: Chapter 3 Installation
CHAPTER 3 INSTALLATION The Fast Ethernet Switch do NOT require software configura- tion. Users can immediately use any of the features of this product simply by attaching the cables and turning on the power. To get the best use of these Fast Ethernet Switch models, many things need to be considered first. - Page 12 This page is intentionally left blank - 8 -...
-
Page 13: Chapter 4 Optimizing Configuration
CHAPTER 4 OPTIMIZING CONFIGURATION 4.1 Prior to Installation Before installing the Fast Ethernet Switch models and con- necting network devices, it is important to plan the new network layout. Consider: Dedicated Bandwidth: File servers and other high-traffic hardware can improve if they have their own direct connection with dedicated 10 or 100Mbps band- width. -
Page 14: Fast Ethernet
4.3 Fast Ethernet 100Base-TX and 100Base-FX are called "Fast Ethernet." This is because they use the Ethernet CSMA/CD access rules and data packet structure, but data travels ten times faster (100Mbps) than traditional 10Mbps Ethernet. Below is a list of the cable types and connectors that supported by Fast Ethernet models for , 100Base-TX, and... -
Page 15: Mac Address Table
4.5 MAC Address Table This 6-byte ID is called the MAC (Media Access Control) Ad- dress. Every Ethernet data packet includes both source and destination addresses. These Fast Ethernet Switch models can automatically learn and store up to 8K MAC addresses. The MAC address table is volatile: it disappears when the switch is powered off or reset. -
Page 16: Sample Application
"big pipe" backbone interconnecting file servers with bandwidth-hungry workgroups, departments, and offices. In the figure, the first FNSW-1601(or FNSW-2401) links to an- other hub‘s Uplink (MDI-II) port, some ports connect to 100Mbps Workstations, and attached to file servers at 200Mbps. -
Page 17: Chapter 5 Troubleshooting
CHAPTER 5 TROUBLESHOOTING Symptom Link LED does not lit after cable is connected to the port. Checkpoint Verify that the other end of the cable is connected to a device that is powered on and on-line. For UTP cable connection to another hub, verify that only one end of the cable is connected to a “MDI-II”... - Page 18 This page is intentionally left blank - 14 -...
-
Page 19: Chapter 6 Product Specifications
CHAPTER 6 PRODUCT SPECIFICATIONS FNSW-1601 FNSW-2401 RODUCT ORTS 10/10/Base-TX RJ-45 10/100Base-TX RJ-45 8K-entry 8K-entry MAC A DDRESSES 100Base-TX, 200/100/20/10Mbps, Auto-Negotiation ANDWIDTH ILTER ORWARD 148,800 packets/second per port @ 100Mbps, max. 1 for Power On/Off LEDs 3 per port for 100Mbps, Full-Duplex/Collision, Act/Link 100Base-TX Cat. - Page 20 This page is intentionally left blank - 16 -...
-
Page 21: Chapter 7 Rj-45 Pin Assignment
CHAPTER 7 RJ-45 PIN ASSIGNMENT Numbered Ports Uplink Port (MDI-II port) (MDI-X port) Input Receive Data + Output Transmit Data+ Input Receive Data - Output Transmit Data- Output Transmit Data+ Input Receive Data + Output Transmit Data- Input Receive Data - 4,5,7,8 Not used Not used Schematics for both straight and crossover twisted-pair cable... - Page 22 2010-000007-002...
