802.11n Wireless 3G Router
WNRT-617G

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WNRT-617G and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Planet Networking & Communication WNRT-617G

Summary of Contents for Planet Networking & Communication WNRT-617G

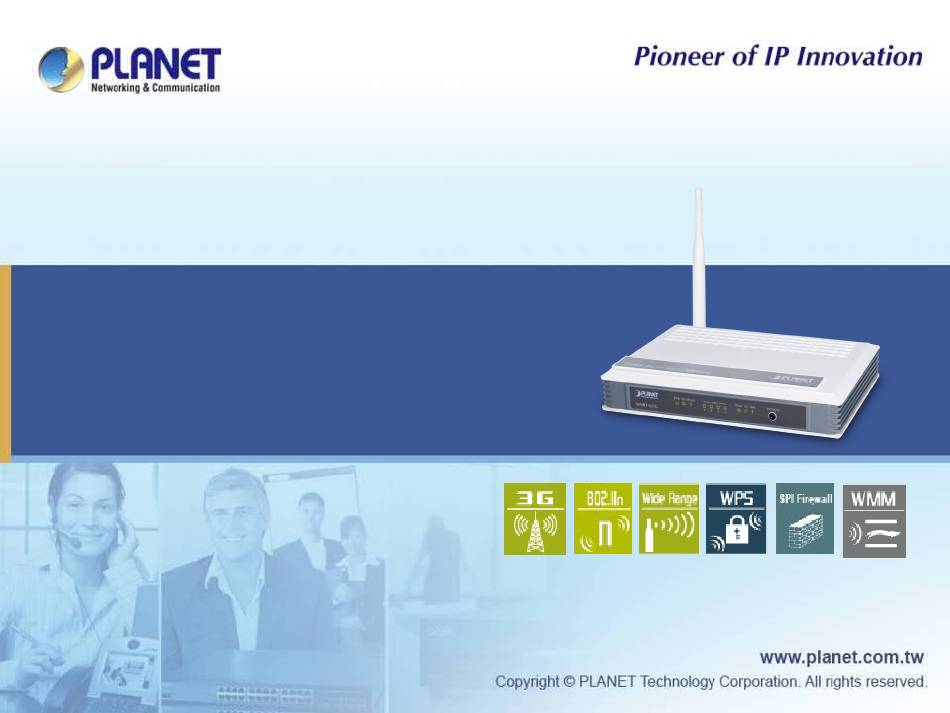

  • Page 1 802.11n Wireless 3G Router WNRT-617G...
  • Page 2 Outline Product Overview  Product Features  Product Applications  Operation Mode  Web UI  WNRT-617G Comparison - Internal  Comparison - External  Appendix ...

  • Page 3: Product Overview

    Product Overview -Front Panel Dimensions  174 x 110 x 23 mm Weight  200g Power  12V DC, 1A WNRT-617G...
  • Page 4 Product Overview -Rear Panel WNRT-617G (Detachable...

  • Page 5: Product Features

    Product Features Industrial Compliant Wireless LAN & LAN   Compliant with IEEE 802.11n Wireless Technology  Data rate up to 150Mbps  Backward Compatible with 802.11b/g Standard  LAN/WAN: 10/100Mbps, Auto MDI/MDI-X Supported 802.11n/1T1R WNRT-617G 802.11g 802.11b...
  • Page 6 Product Features 3G / 3.75G Mobile Internet Connection   Dual Network Interfaces: WAN Port for Cable / Wired DSL Service and 3G Mobile Connection  Compatible with UMTS / HSPA / EVDO Mobile Network Fixed-network Broadband Router   WAN types •...
  • Page 7 Product Features Secure Network Connection   Support Wi-Fi Protected Setup (WPS)  Advanced security: • 64/128/152-bit WEP • WPA/WPA2 • WPA-PSK/WPA2-PSK (TKIP/AES encryption) • 802.1x  Support NAT firewall features, with SPI function to protect against DoS attacks  Support IP / Protocol-based access control and MAC Filtering...
  • Page 8 Product Features – WPS Easy Setup WPS (Wi-Fi Protected Setup)  – Quick and Easy Wireless Connection STEP.1  In the Wireless Client, click the WPS Software Button from the Web UI STEP.2  In the AP, push the WPS Hardware Button from the front panel within 2 minutes STEP.3 ...
  • Page 9 Product Features Multiple Wireless Network Technologies for  Greater Access  Multiple Operation Modes:  Client  WDS (Bridge)  WDS+AP  WISP   5dBi high gain antenna provides better RF coverage and reduce the dead-spot indoor...
  • Page 10 Product Features 5dBi High Gain Antenna  – Wide Wireless Coverage Range – Reduce Dead-spot 5dBi Antenna Common Wireless N Router WNRT-617G...
  • Page 11 Product Features Secure Network Connection   Supports Static Routing, WDS, UPnP, Dynamic DNS  Supports Wi-Fi Protected Setup (WPS)  Advanced Security: 64/128/152-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK with TKIP/AES Encryption, and 802.1x Authentication.  Supports NAT Firewall Features, with SPI Function to Protect against DoS Attacks...

  • Page 12: Easy Installation And Management

    Product Features Advanced Networking function for Specific Application   Supports multiple sessions IPSec, L2TP and PPTP VPN pass- through  Supports Virtual Server, ALG, DMZ and UPnP for various networking applications Easy Installation & Management   Remote Management allows configuration from a remote site ...

  • Page 13: Product Applications

    Product Applications 3G Mobile Connection   Easily share the connection with your laptop, iPhone, iPad, and any other Wi-Fi supported devices.

  • Page 14: Typical Application

    Product Applications Typical Application  Cable / DSL Modem 11n Wireless Router WNRT-617G...
  • Page 15 Product Applications Access The Internet Anywhere And Anytime   Share the Internet with your friends even in transportation or any public area.

  • Page 16: Operation Mode

    Operation Mode Wireless Access Point   Acts as a central hub for wired / wireless LAN and connect to Internet AP Mode 11n Wireless Router WNRT-617G...
  • Page 17 Operation Mode AP Client   Acts as a wireless client connecting with the remote IP Camera RJ-45 AP Client Mode 11n Wireless Router AP Mode...
  • Page 18 Operation Mode WDS Bridge – Point to Point Mode   Two APs in two remote locations connect to each other wirelessly Bridge PtP Mode Bridge PtP Mode WNRT-617G WNRT-617G...
  • Page 19 Operation Mode WDS Bridge – Point to Multiple Point Mode   Wirelessly connects multiple locations together allowing them to share the same network resources. WNRT-617G Bridge PtMP Mode Bridge PtMP Mode Bridge PtMP Mode Bridge PtMP Mode 19 / 25...
  • Page 20 Operation Mode WDS Repeater (WDS + AP) Mode   Bridge two APs and provides access for wireless clients at the same time WNRT-617G WDS+AP mode WDS+AP mode 20 / 25...

  • Page 21: Universal Repeater Mode

    Operation Mode Universal Repeater Mode   Extends the coverage of AP, even if your AP/Router doesn't have WDS function Universal Repeater AP Mode Mode WNRT-617G Wireless AP / Router...
  • Page 22 Acts as a Wireless client to connect to an existing network via an Access Point. IP sharing function is enabled so the clients can share the WISP connection without the need for extra router. WISP mode WISP Provider / outdoor AP WNRT-617G 22 / 25...
  • Page 23 Web UI - Main Clear & Concise Easy to understand System Status On-line Help 23 / 25...
  • Page 24 Web UI – 3G Configuration Supports lots of Mobile ISPs 24 / 25...
  • Page 25 Web UI - WAN Full Range of WAN Type 25 / 25...
  • Page 26 Web UI - Wireless Easy to set Wireless Function 26 / 25...
  • Page 27 As Enrollee, use Self PinCode fill in wireless client’s, then click. WPS PBC H/W Button WPS PBC S/W Button Type1: Press PBC button from AP (S/W or H/W) and wireless client in 2 minutes WNRT-617G 27 / 25...
  • Page 28 Web UI – Security SPI Firewall & DoS Protection 28 / 25...
  • Page 29 Web UI – Different Control Bandwidth Control Access Control Parental Control 29 / 25...
  • Page 30 Web UI – Port Forwarding 30 / 25...
  • Page 31 Web UI – System Tools 31 / 25...
  • Page 32 Comparison - Internal WNRT-617G WNRT-625G WNRT-626G Model Features 5dBi Antenna 3dBi fixed 3dBi fixed Detachable Chipset Atheros AR9285 Ralink RT3052 Ralink RT3050 10/100TX(1WAN,4LAN) 10/100TX(1WAN,4LAN) 10/100TX(1WAN,4LAN) Interface USB 2.0 port for 3G Modem USB 2.0 port for 3G Modem USB 2.0 port for 3G Modem...
  • Page 33 Comparison - External PLANET WNRT-617G D-Llink DIR-451 ZyXEL NBG4115 Model Features Antenna 5 dBi Detachable 2 dBi 2 dBi Detachable Wireless 802.11b/g/n 802.11b/g 802.11b/g/n Standard 10/100Mbps (4 LAN) 10/100Mbps (1 WAN/4 LAN) 10/100Mbps (1 WAN/2 LAN) Interface USB 2.0 for 3G Modem USB 2.0 for 3G Modem...
  • Page 34 Appendix Related Products   WNL-U554 150Mbps 11n Wireless USB Adapter  WNL-U554A 150Mbps 11n Wireless USB Adapter with 3dBi Antenna  WNL-U554M 150Mbps Micro 11n Wireless USB Adapter  WNL-9501 802.11n Wireless PCI Express Adapter 34 / 25...
