2.3.8 Call Button and the Call Button LED

2.3.8.1 Calling with the The Call Button
•
•
•
•
2.3.8.2 Call Button LED Function
•
•
•
•
•
•
Operations Guide
You may initiate a call by pressing the Call button.
An active call is indicated by the Call Button LED blinking at one second intervals.
The Intercom can automatically answer an incoming call.
You can press the Call Button to terminate an active call.
Upon initial power or reset, the Call Button LED will illuminate.
During network setup the Call Button LED will blink 10 times per second until the device can find
a network address. This can take from 5 to 60 seconds.
When the software has finished initialization, the Call Button LED will blink twice.
When a call is established (not just ringing), the Call Button LED will blink.
On the Device Configuration Page
option called Button Lit When
Call Button LED will still blink during initialization and calls.
The Call Button LED flashes briefly at the beginning of RTFM mode.

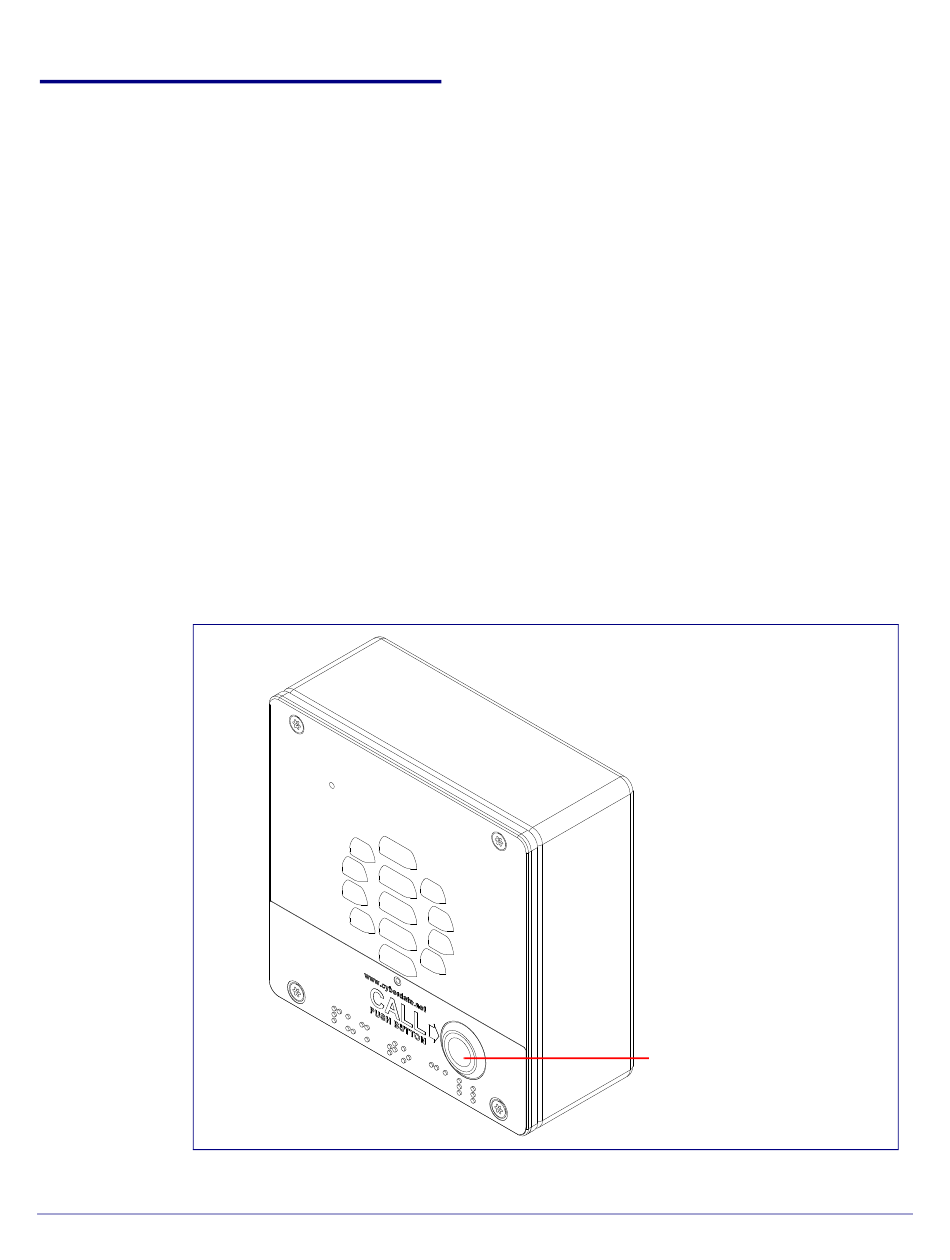

Figure 2-12. Call Button and Call Button LED
(see Section 2.4.5, "Configure the
Idle. This option sets the normal state for the indicator LED. The
930796K
Installing the VoIP Outdoor Intercom
Intercom Setup
Device"), there is an
Call Button and Call Button LED
