1.7 Maximum Document Size and Placement

Reflective document
Size: 8.5in (216mm) W x 11.7in (297mm) H
8.5in (216mm)
Scanning home position

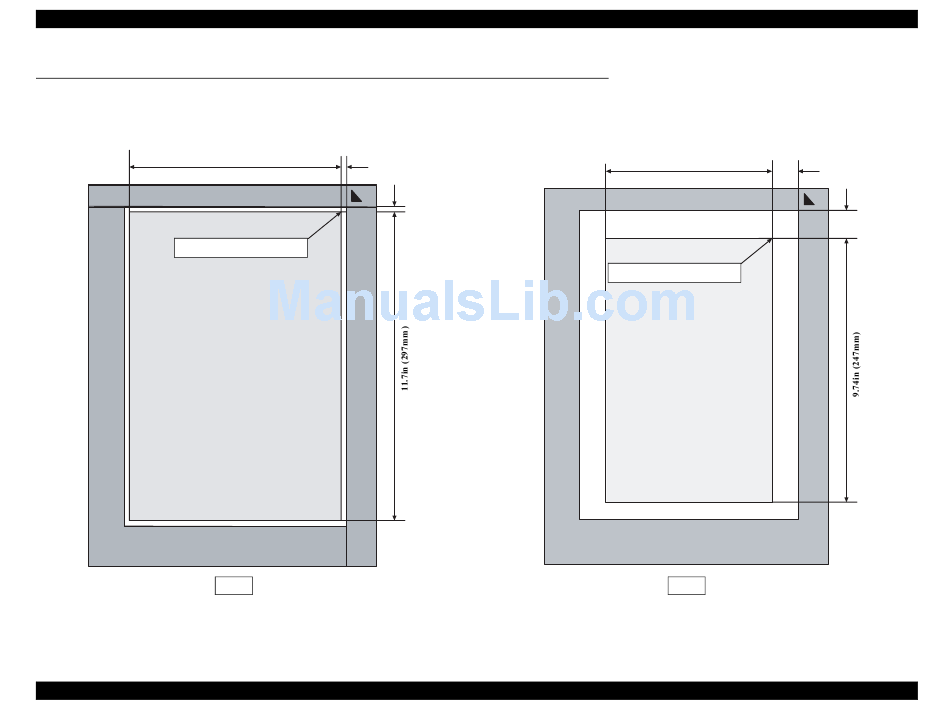

Figure 1-4. Reflective Document Scanning Range
Product Description
1.5 ± 0.8mm
1.5 ± 0.6mm
Front
Maximum Document Size and Placement
Transparent document
Standard size: 5.9in (149mm) W x 9.74in (247mm) H
5.9in (149mm)
Scanning home position
Figure 1-5. Transparent Document Scanning Range (Standard)
Revision A
34.52 ± 1.5mm
13.95 ± 1.5mm
Front
