Connecting The Fbu Adapter Cable To The Tfm; Concluding Steps - Fujitsu Server PRIMERGY TX1330 M1 Upgrade And Maintenance Manual

Expansion cards and backup units
9.5.2.5

Connecting the FBU adapter cable to the TFM

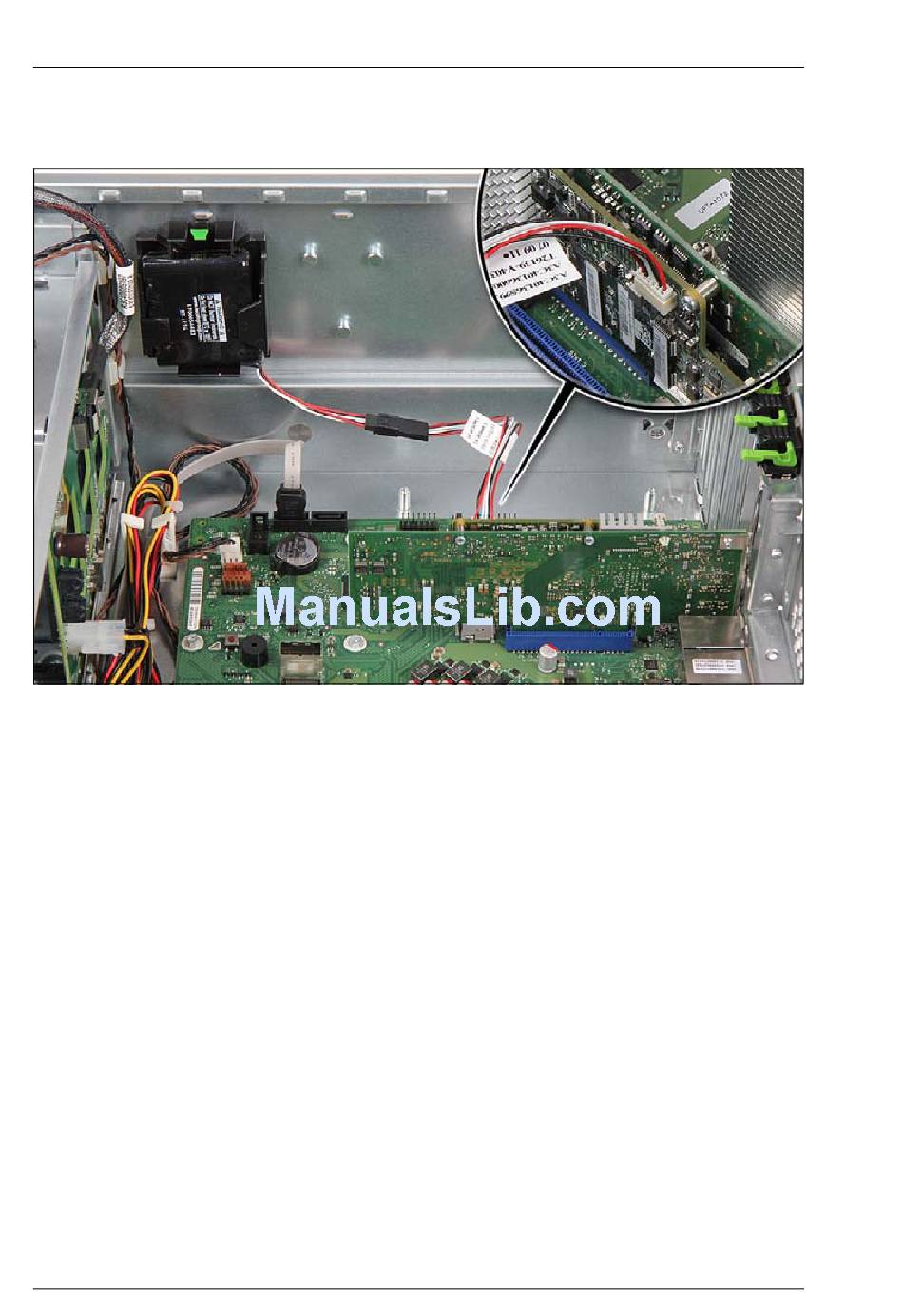

Figure 113: Routing the FBU adapter cable
Ê Connect the FBU adapter cable to the TFM.
Ê Route the FBU adapter cable as shown.
9.5.2.6

Concluding steps

"Installing the fan module" on page 152
Ê
"Reassembling" on page 58
Ê
"Connecting the server to the mains" on page 67
Ê
"Switching on the server" on page 68
Ê
"Updating RAID controller firmware" on page 80
Ê
"Enabling SVOM boot watchdog functionality" on page 84
Ê
196 Upgrade and Maintenance Manual
TX1330 M1
