9.5

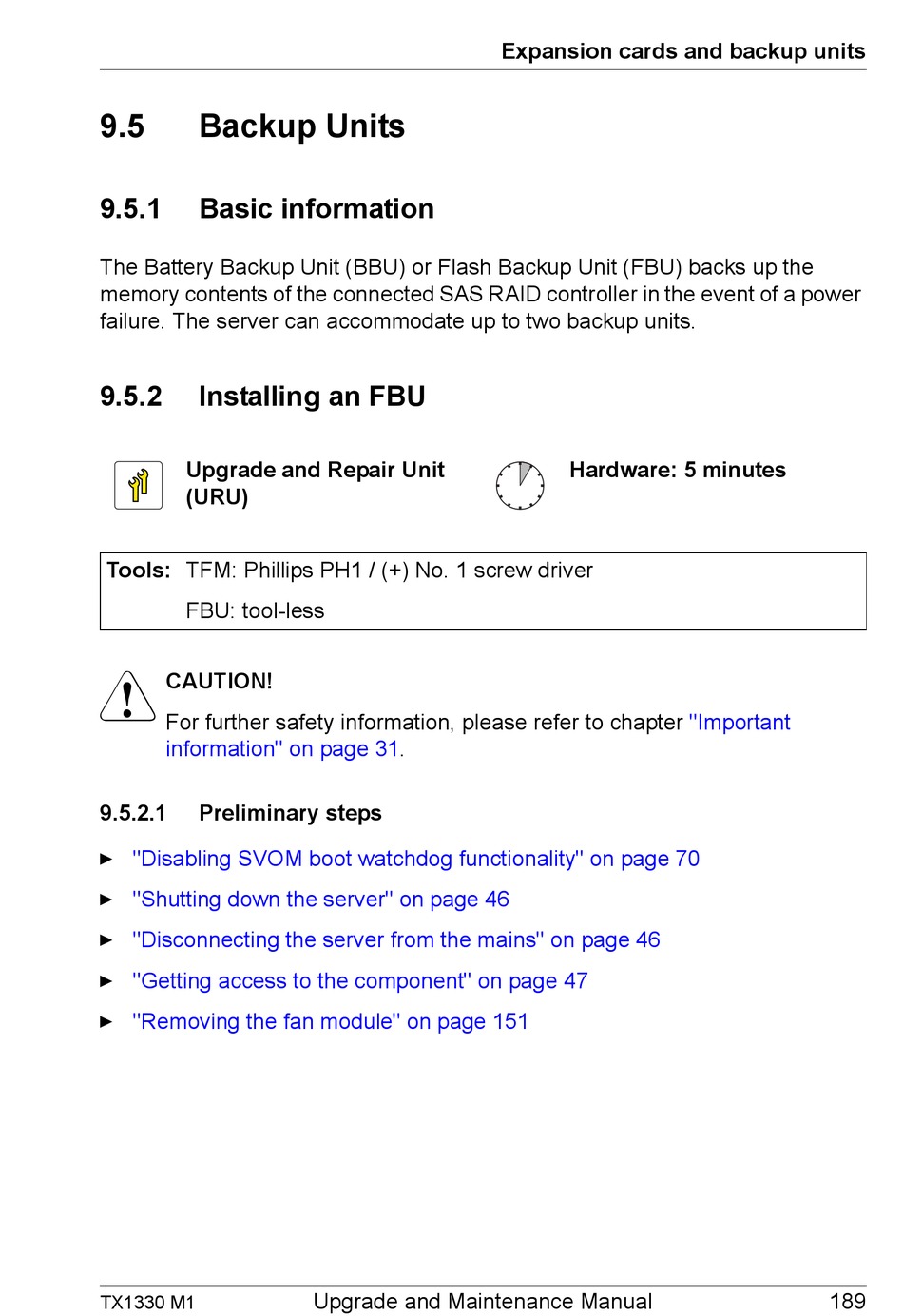

Backup Units

9.5.1

Basic information

The Battery Backup Unit (BBU) or Flash Backup Unit (FBU) backs up the
memory contents of the connected SAS RAID controller in the event of a power
failure. The server can accommodate up to two backup units.
9.5.2

Installing an FBU

Upgrade and Repair Unit
(URU)
Tools: TFM: Phillips PH1 / (+) No. 1 screw driver
FBU: tool-less
V
CAUTION!
For further safety information, please refer to chapter
information" on page
9.5.2.1

Preliminary steps

"Disabling SVOM boot watchdog functionality" on page 70
Ê
"Shutting down the server" on page 46
Ê
"Disconnecting the server from the mains" on page 46
Ê
"Getting access to the component" on page 47
Ê
"Removing the fan module" on page 151
Ê
TX1330 M1
31.
Upgrade and Maintenance Manual
Expansion cards and backup units
Hardware: 5 minutes
"Important
189
