System fan and air duct
8.1

Basic information

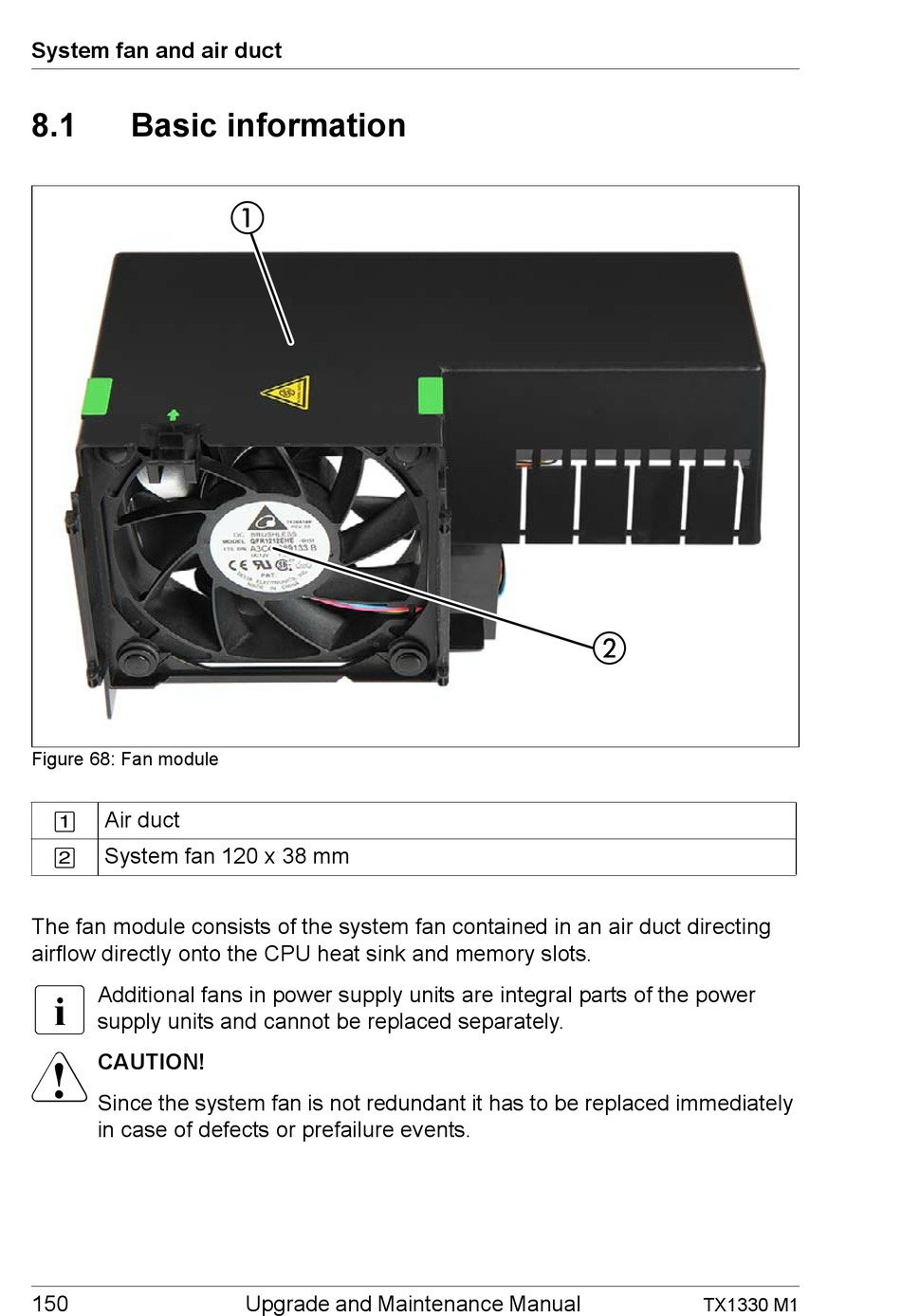

Figure 68: Fan module
Air duct
[1]
System fan 120 x 38 mm
[2]
The fan module consists of the system fan contained in an air duct directing
airflow directly onto the CPU heat sink and memory slots.
I
Additional fans in power supply units are integral parts of the power
supply units and cannot be replaced separately.
V
CAUTION!
Since the system fan is not redundant it has to be replaced immediately
in case of defects or prefailure events.
150 Upgrade and Maintenance Manual
TX1330 M1
