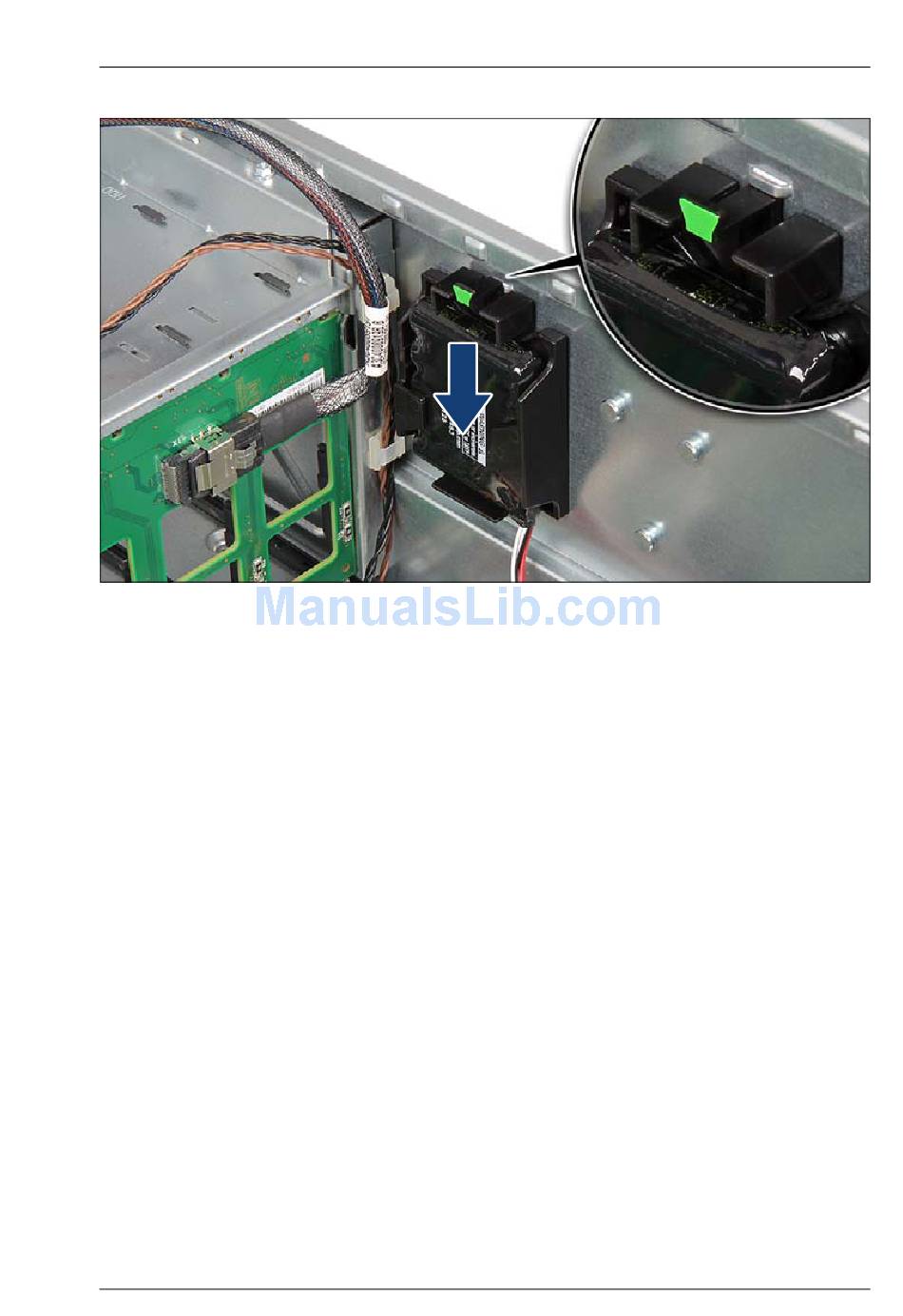

Figure 112: Installing the FBU holder (B)
Ê Slide the FBU holder downward as far as it will go.
The fixation bolts on the chassis floor will lock in the narrow ends of the
keyhole slots on the holder.
Ê Ensure that the locking handle on the FBU holder properly snaps in place
(see close-up).
TX1330 M1
Upgrade and Maintenance Manual
Expansion cards and backup units
195
