Accessible drives

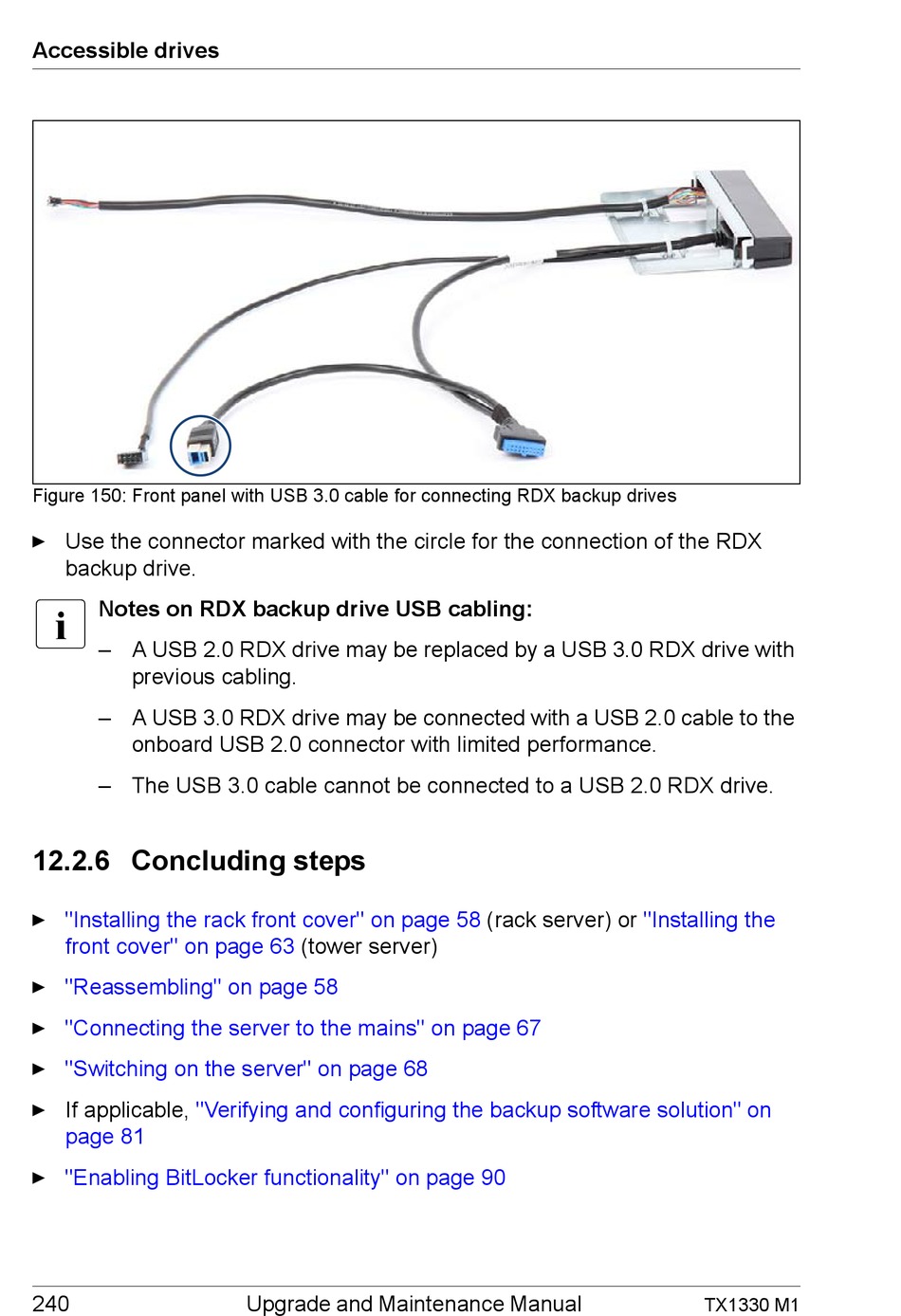

Figure 150: Front panel with USB 3.0 cable for connecting RDX backup drives
Ê Use the connector marked with the circle for the connection of the RDX
backup drive.
I
Notes on RDX backup drive USB cabling:
– A USB 2.0 RDX drive may be replaced by a USB 3.0 RDX drive with
previous cabling.
– A USB 3.0 RDX drive may be connected with a USB 2.0 cable to the
onboard USB 2.0 connector with limited performance.
– The USB 3.0 cable cannot be connected to a USB 2.0 RDX drive.

12.2.6 Concluding steps

"Installing the rack front cover" on page 58
Ê
front cover" on page 63
"Reassembling" on page 58
Ê
"Connecting the server to the mains" on page 67
Ê
"Switching on the server" on page 68
Ê
Ê If applicable, "Verifying and configuring the backup software solution" on
page 81
"Enabling BitLocker functionality" on page 90
Ê
