Ê Secure the rack front cover to the chassis with two screws on either side
(see
figure 7 on page
Ê Insert and slide the ID card into its slot until it locks in place (see close-up in
figure 6 on page
4.5.1.2
Installing the top cover

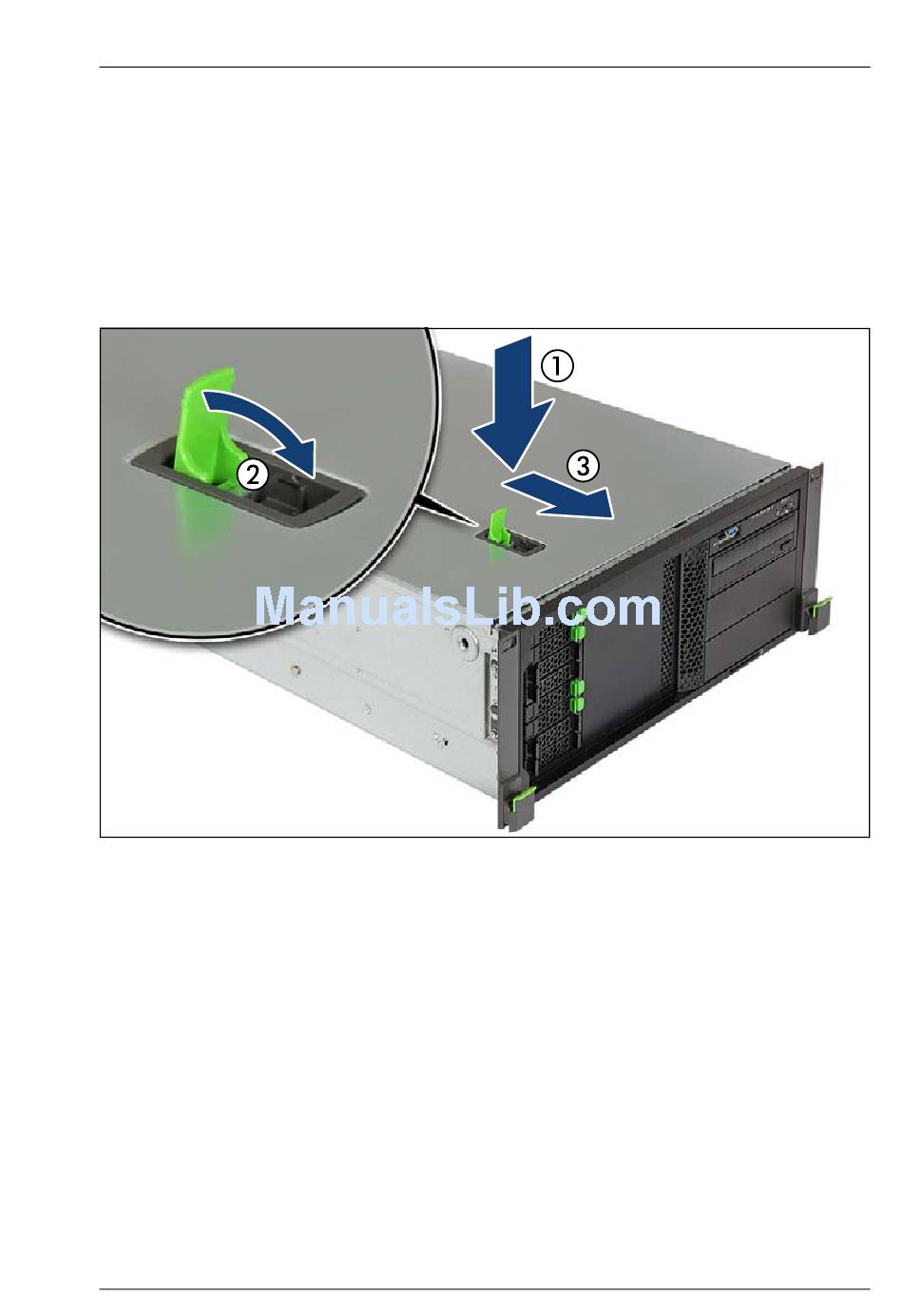

Figure 15: Installing the top cover (rack server)
Ê Check if the locking lever on the top cover is open.
Ê Lower the top cover onto the chassis, recessed by 2 cm (1).
Ê Close the locking lever on the top cover (2). This will slide the top cover shut
engaging the locking mechanism (3).
TX1330 M1
52).
52).
