Installing The New Riser Card - Fujitsu Server PRIMERGY TX1330 M1 Upgrade And Maintenance Manual

Expansion cards and backup units

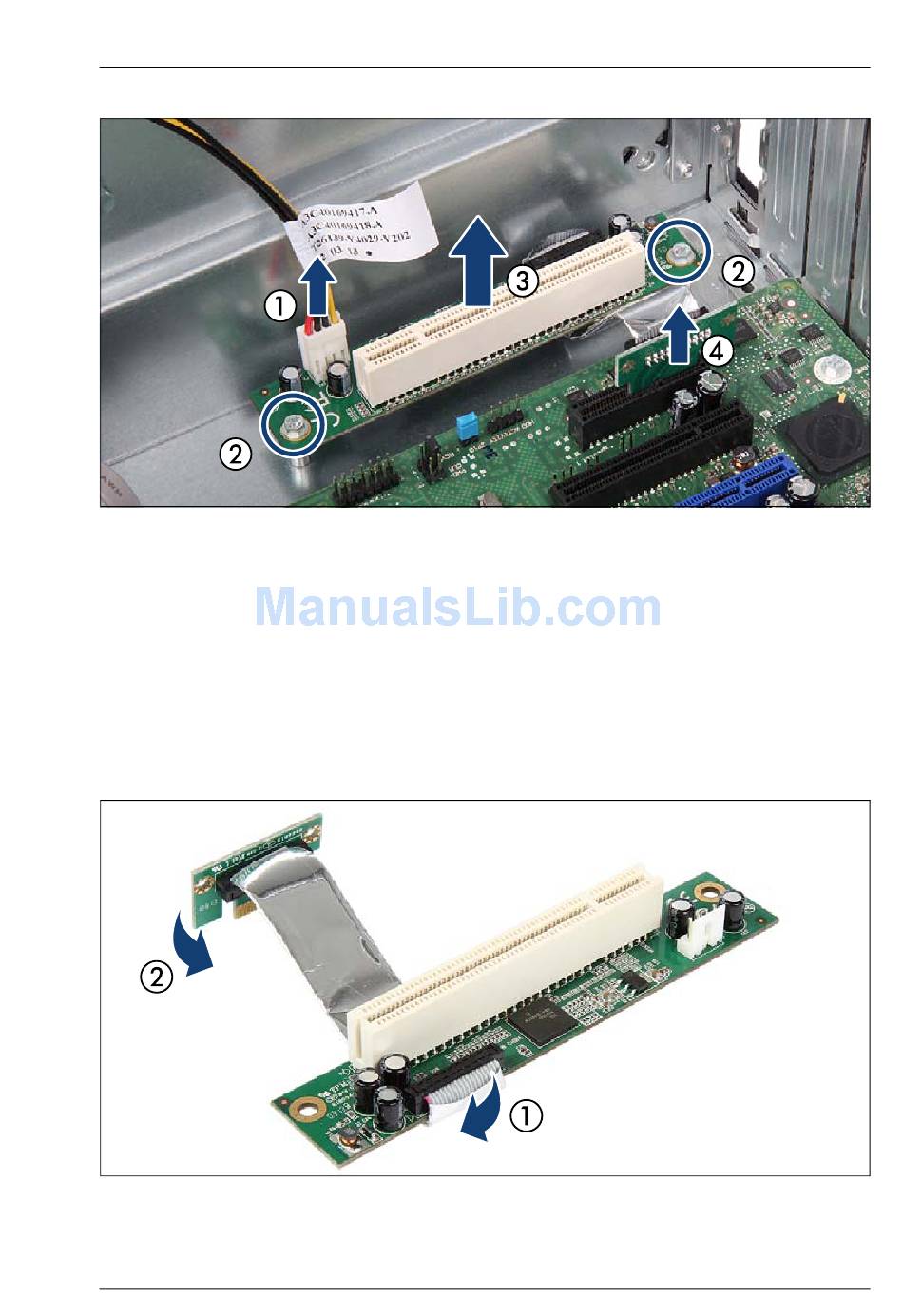

Figure 102: Removing the riser card
Ê Disconnect the power cable (1).
Ê Remove the two screws (2).
Ê Remove the riser card (3).
Ê Remove the PCI adapter board from slot 1 (4).
9.4.4.3

Installing the new riser card

Figure 103: Preparing the riser card
Ê Fold the cable under the riser card (1).
