Ê Slide the intrusion switch holder under the front chassis rim as far as it will
go (2).

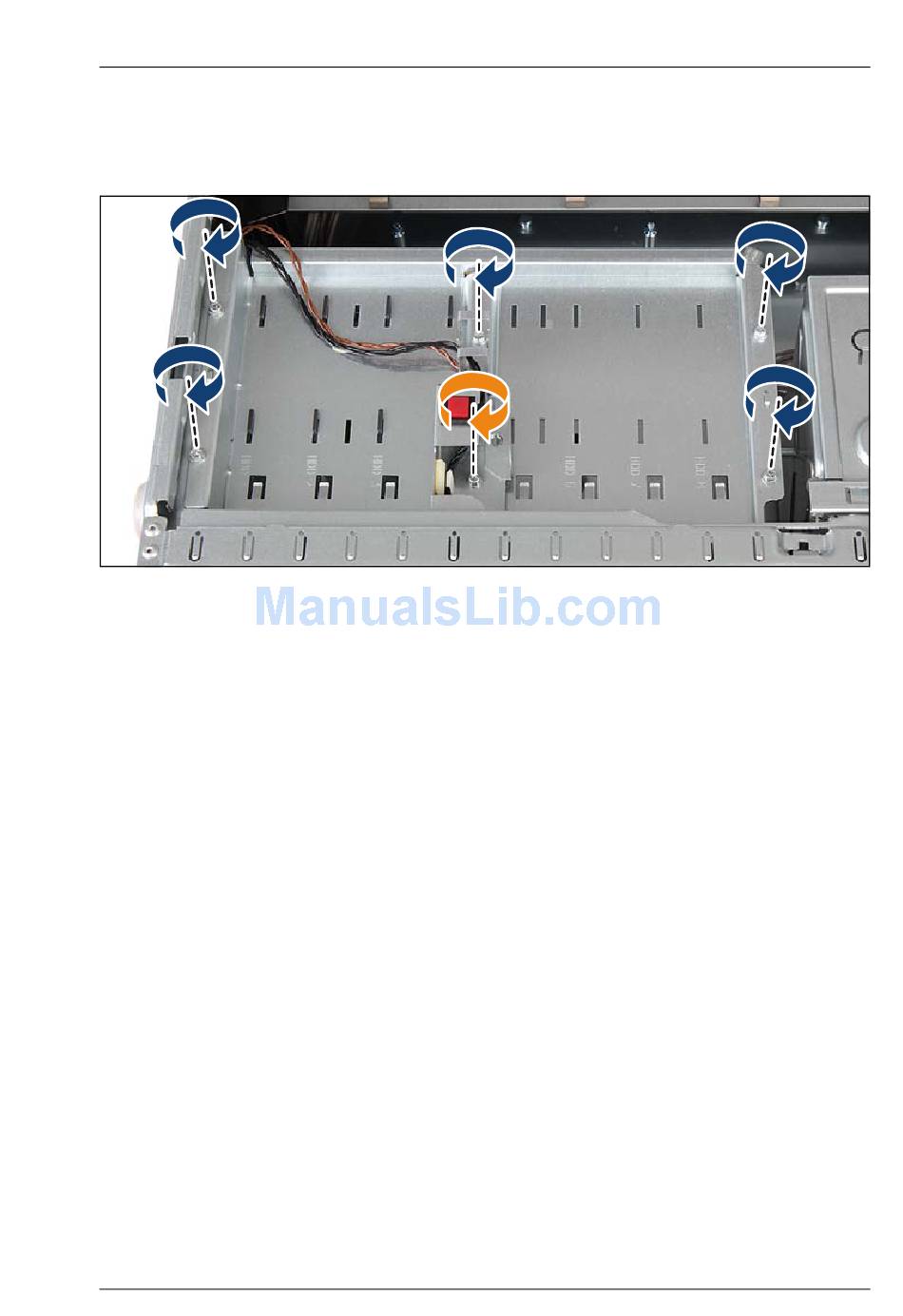

Figure 66: Installing the 3.5-inch HDD bay top cover (C)
Ê Secure the HDD bay top cover to the chassis with five screws (see blue
arrows).
Ê Secure the intrusion switch holder on the HDD bay top cover with one screw
(see orange arrow).
