Expansion cards and backup units
9.2

Handling slot brackets

9.2.1

Installing a slot bracket

Upgrade and Repair Unit
(URU)
Tools: Phillips PH2 / (+) No. 2 screw driver
I
Use the following slot bracket for the ModularRAID controllers based on
LSI MegaRAID:
– Full height bracket not-perforated

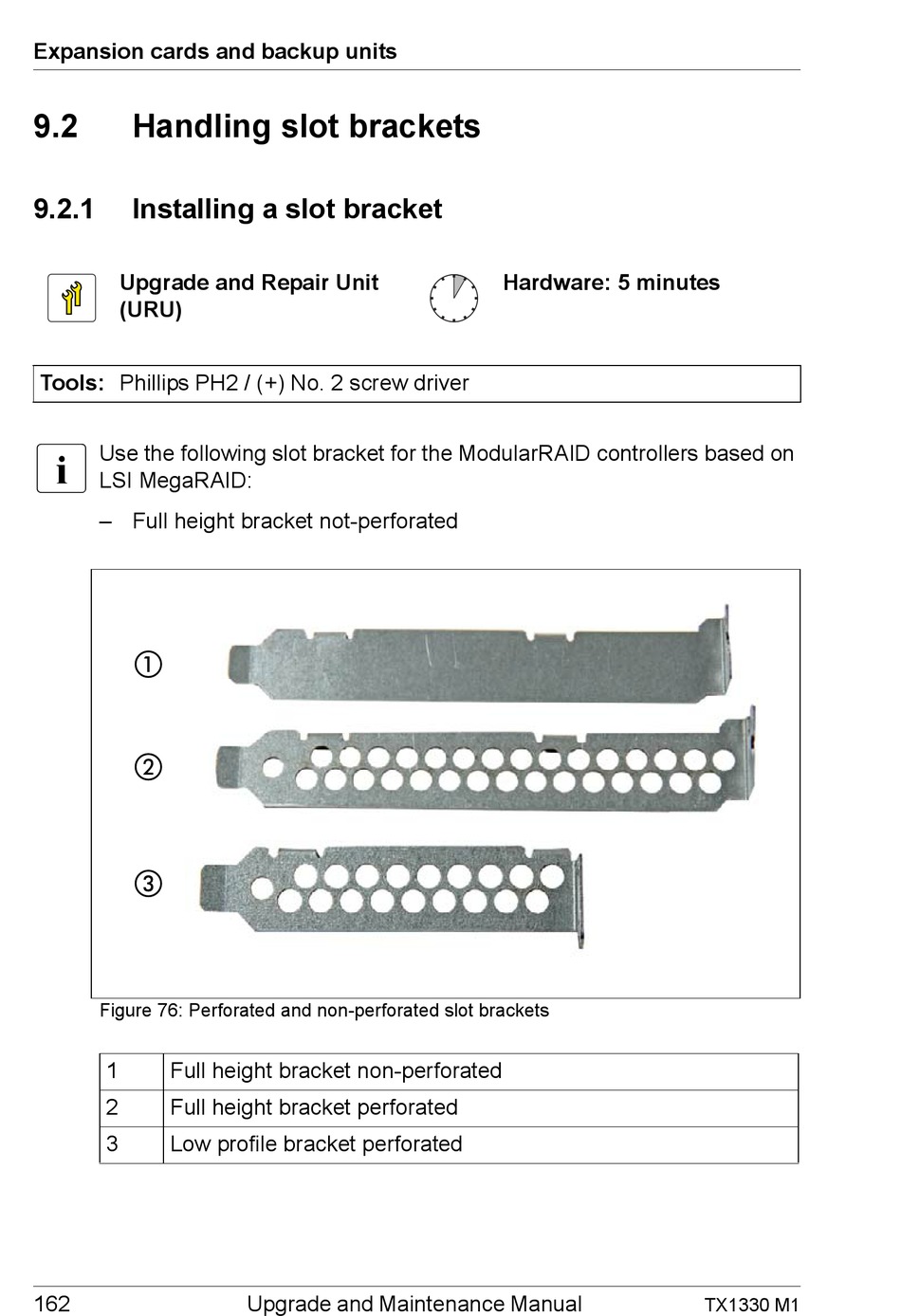

Figure 76: Perforated and non-perforated slot brackets
1 Full height bracket non-perforated
2 Full height bracket perforated
3 Low profile bracket perforated
162 Upgrade and Maintenance Manual
Hardware: 5 minutes
