Tools you need at hand

When preparing the maintenance task, ensure that all required tools are
available according to the overview below. You will find a list of required tools at
the beginning of each procedure.
Screw driver /
Bit insert
Phillips
PH2 / (+) No. 2
hexagonal cross
SW5 / Ph2
Phillips
PH2 / (+) No. 2
hexagonal cross
SW5 / PZ2
Phillips
PH2 / (+) No. 2
hexagonal cross
SW5 / PZ2
Phillips
PH0 / (+) No. 0

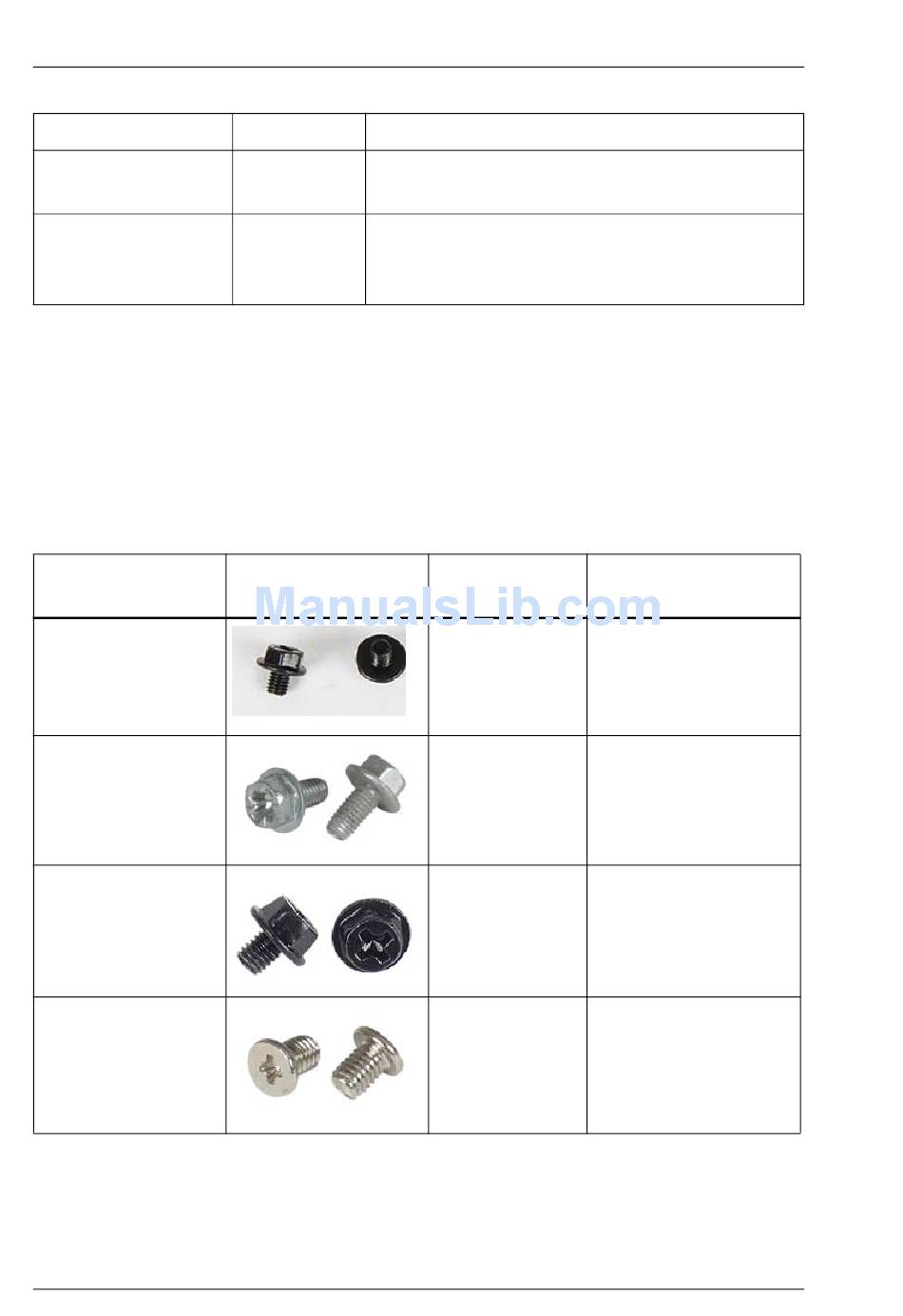

Table 2: List of required tools and used screws
26
included Explanation
Reassembling the server, installing the
yes
server in the rack (if applicable)
Booting time depends on hardware and
no software configuration and may vary
significantly.
Screw
Upgrade and Maintenance Manual
Usage Type
Backup drives, M3 x 3.5 mm
optical disk (black)
drives, chassis C26192-Y10-C151
M3 x 6 mm
(silver)
System board
C26192-Y10-C68
UNC
Backup drives
6-32 x 4.76 mm
with UNC
(black)
thread
C26192-Y10-C75
M3 x 3.5 mm
Wafer head screw
2.5-inch HDDs
(silver)
/ SSDs
C26192-Y10-C102
TX1330 M1
