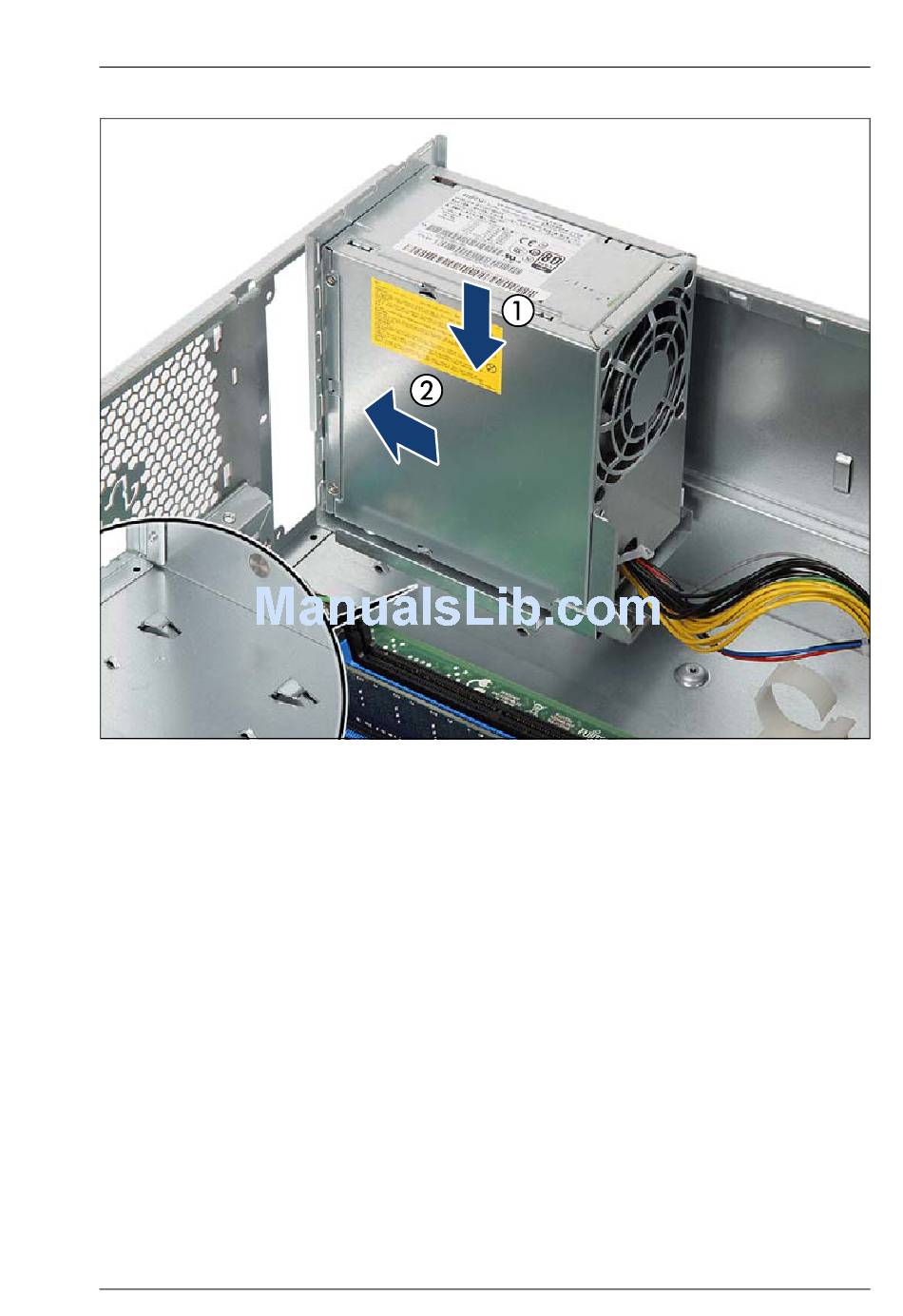

Figure 33: Installing the standard power supply unit
Ê Lower the power supply unit into the chassis so that the two hooks on the
server floor (see close-up) rest in the recesses in the installation frame (1).
Ê Slide the power supply unit towards the rear of the chassis (2).
Ê Secure the power supply unit to the chassis with five screws (see figure 27).
Ê Connect the ATX power supply connector to system board connector
"PWR1" (see section
Ê Run the power cable through the power cable clamp (see figure 25).
Close the power cable clamp.
Ê Connect the power management connector to system board connector
"PC2009" (see section
Ê Run the power cable through the cable clamp (see figure 26).
Close the cable clamp.
TX1330 M1
"Cabling plans" on page
"Cabling plans" on page
Upgrade and Maintenance Manual
Power supply
303).
303).
