Hard disk drives / solid state drives
For further information, please refer to the "ServerView Suite RAID
Management" user guide.
Ê If applicable, "Removing the HDD bay cover" on page 55
7.3.4.2

Removing a 3.5-inch HDD module

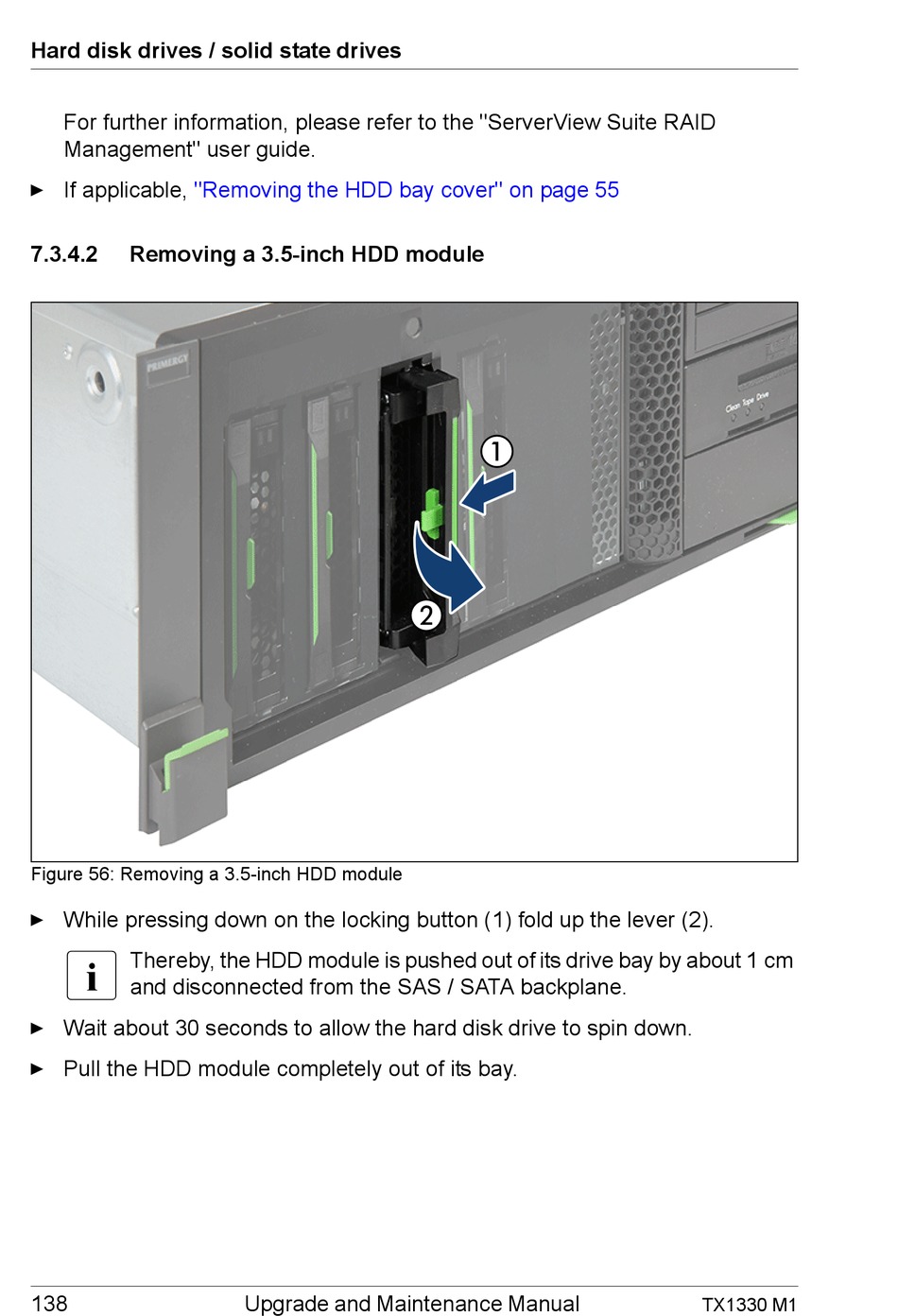

Figure 56: Removing a 3.5-inch HDD module
Ê While pressing down on the locking button (1) fold up the lever (2).
I
Thereby, the HDD module is pushed out of its drive bay by about 1 cm
and disconnected from the SAS / SATA backplane.
Ê Wait about 30 seconds to allow the hard disk drive to spin down.
Ê Pull the HDD module completely out of its bay.
