CDM-710 Broadcast Satellite Modem
Ethernet Management
6.5.4.3.2

Config Mdm | Modem

Use the 'Config | Modem' page (Figure 6-8) to configure Transmit (Tx) and Receive (Rx)
operating parameters.
The Tx / Rx Interface Types and Framing Modes have higher priority than other
parameters, and should be configured before setting other parameters.
IMPORTANT
For details pertaining to the configuration parameters available on this page, refer to Chapter 5.
FRONT PANEL OPERATION.
Once the desired configuration settings have been made on this page, click [Config Transmit],
[Config Receiver], or [Config All] to save these changes.

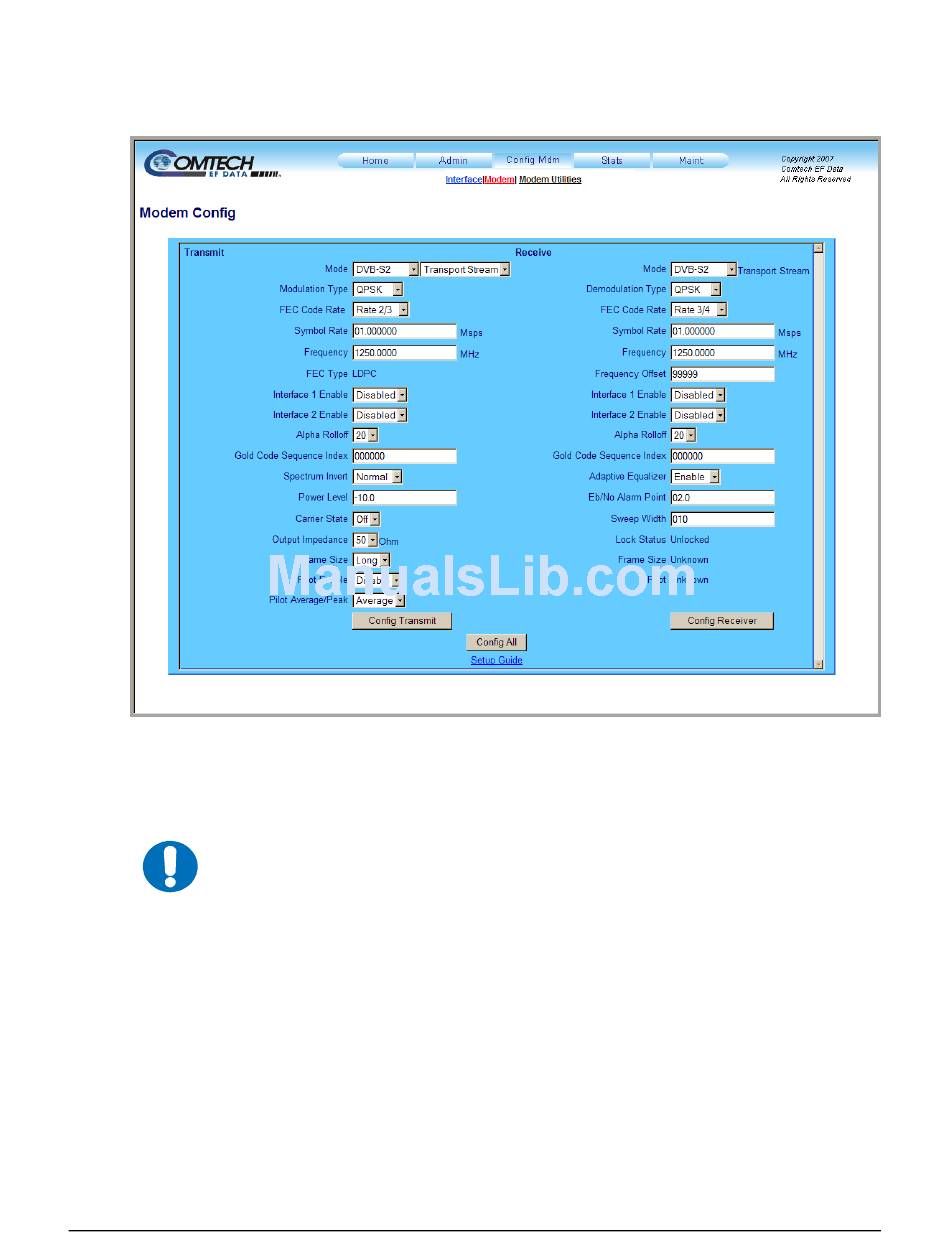

Figure 6-8. Config Mdm | Modem page
