Configuration for Vigor3200
1.

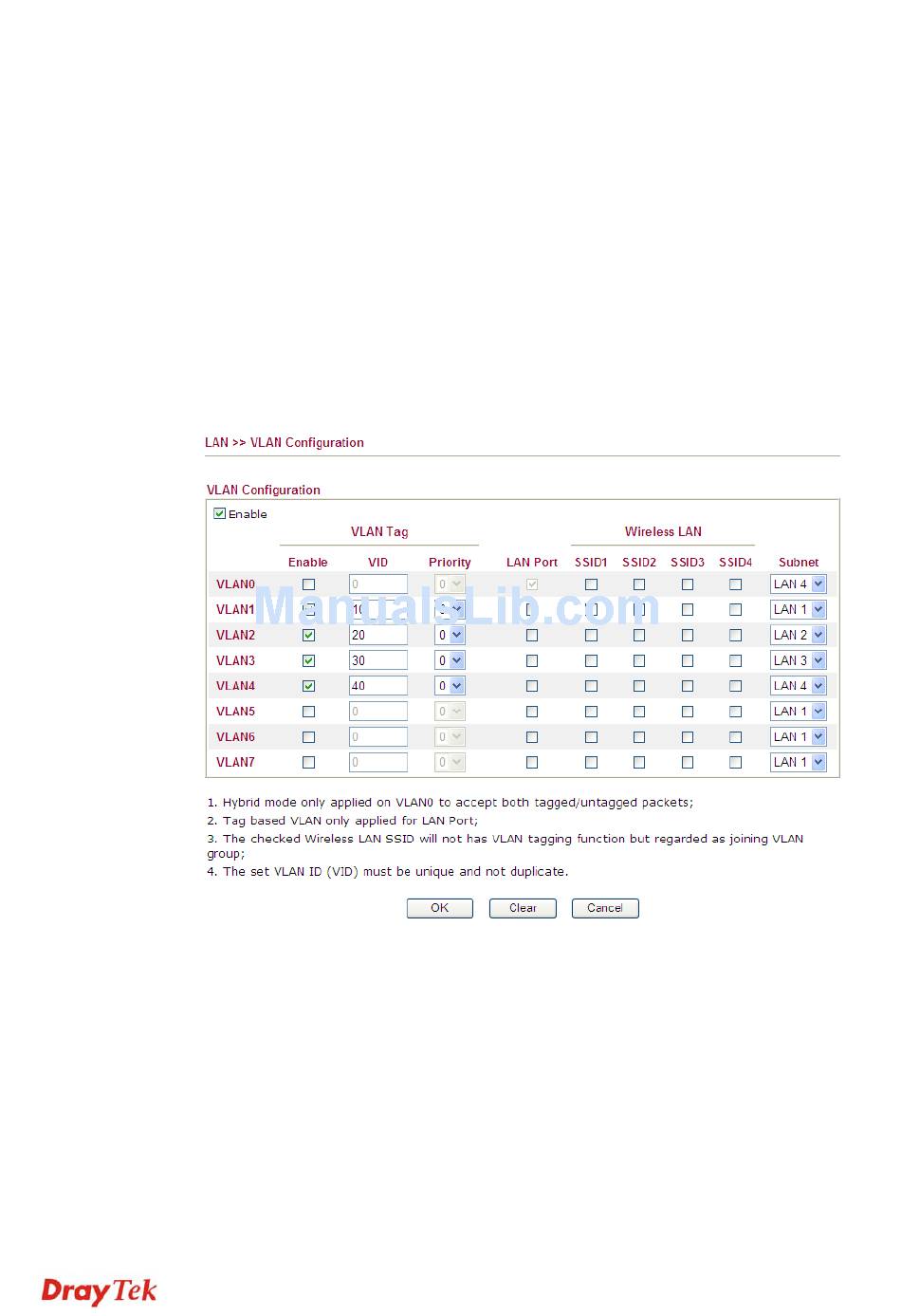

In the page of LAN >> VLAN Configuration, check the box of Enable to enable the
function of VLAN Configuration.
2.
Untag VLAN0 and set LAN4 as the Subnet.
3.
To activate the function of VLAN Tag for VLAN1 setting, check the box of Enable and
type the value (10) for VID setting. Then check LAN Port and set LAN1 as the Subnet.
4.
To activate the function of VLAN Tag for VLAN2 setting, check the box of Enable and
type the value (20) for VID setting. Then check LAN Port and set LAN2 as the Subnet.
5.
To activate the function of VLAN Tag for VLAN3 setting, check the box of Enable and
type the value (30) for VID setting. Then check LAN Port and set LAN3 as the Subnet.
6.
To activate the function of VLAN Tag for VLAN4 setting, check the box of Enable and
type the value (40) for VID setting. Then check LAN Port and set LAN4 as the Subnet.
In the page of LAN >> General Setup, check the Status box of LAN2, LAN3, LAN4
and enable the function of DHCP.
