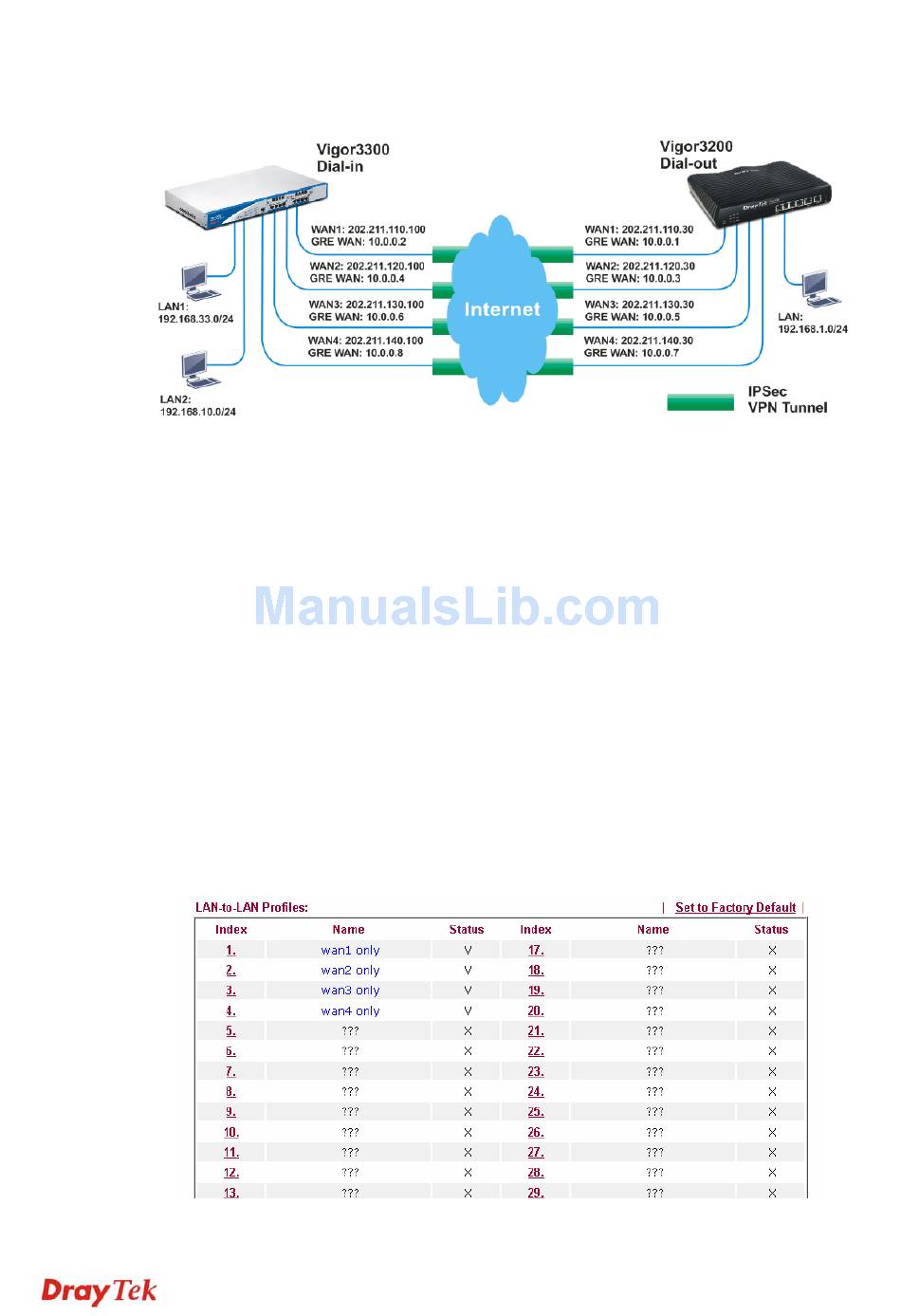

S c e n a r i o 2 : T w o - p
S c e n a r i o 2 : T w o - p
Vigor3200 as VPN client (dial out site)
LAN: 192.168.1.0/24
WAN 1 IP: 202.211.110.30 (My GRE IP, 10.0.0.1, Peer GRE IP, 10.0.0.2)
WAN 2 IP: 202.211.120.30 (My GRE IP, 10.0.0.3, Peer GRE IP, 10.0.0.4)
WAN 3 IP: 202.211.130.30 (My GRE IP, 10.0.0.5, Peer GRE IP, 10.0.0.6)
WAN 4 IP: 202.211.140.30 (My GRE IP, 10.0.0.7, Peer GRE IP, 10.0.0.8)
Vigor3300 as VPN server (dial in site),
LAN1: 192.168.33.0/24
LAN2: 192.168.10.0/24
WAN 1 IP: 202.211.110.100 (Local GRE IP, 10.0.0.2, Remote GRE IP, 10.0.0.1)
WAN 2 IP: 202.211.120.100 (Local GRE IP, 10.0.0.4, Remote GRE IP, 10.0.0.3)
WAN 3 IP: 202.211.130.100 (Local GRE IP, 10.0.0.6, Remote GRE IP, 10.0.0.5)
WAN 4 IP: 202.211.140.100 (Local GRE IP, 10.0.0.8, Remote GRE IP, 10.0.0.7)
Settings for Vigor 3200:
1. Open VPN and Remote Access>>>LAN to LAN.
2. Create LAN to LAN profile 1-4. Setting configuration is the same as Scenario 1. The
differences are, Remote Network IP of Profile 1 and Profile 2 must be 192.168.33.0/24
and Remote Network IP of Profile 3 and Profile 4 must be 192.168.10.0/24.
a i r V P N T r u n k
a i r V P N T r u n k
97 Vigor3200 Series User's Guide
