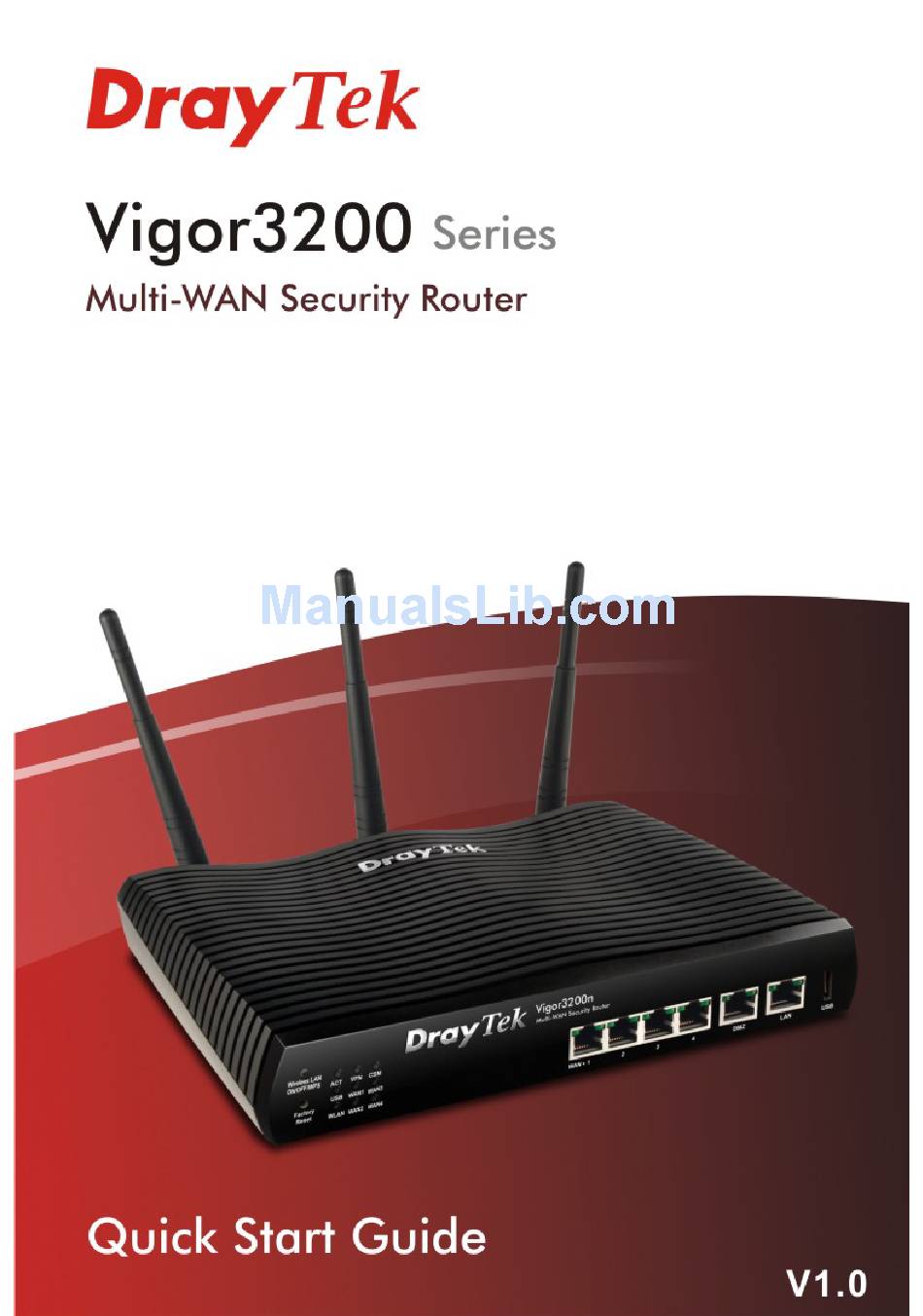

- Page 1 Vigor3200 Series Quick Start Guide...
- Page 2 Vigor3200 Series Multi-WAN Security Router Quick Start Guide Version: 1.0 Firmware Version: V3.3.6_RC5 Date: 09/10/2010 Vigor3200 Series Quick Start Guide...
- Page 3 Web registration is preferred. You can register your Vigor router via Owner http://www.draytek.com. Firmware & Tools Due to the continuous evolution of DrayTek technology, all routers will be Updates regularly upgraded. Please consult the DrayTek web site for more information on newest firmware, tools and documents.
- Page 4 No. 26, Fu Shing Road, HuKou County, HsinChu Industrial Park, Hsin-Chu, Taiwan 303 Product: Vigor3200 Series Router DrayTek Corp. declares that Vigor3200 Series of routers are in compliance with the following essential requirements and other relevant provisions of R&TTE Directive 1999/5/EEC. The product conforms to the requirements of Electro-Magnetic Compatibility (EMC) Directive 2004/108/EEC by complying with the requirements set forth in EN55022/Class B and EN55024/Class B.
- Page 5 Vigor3200 Series Quick Start Guide...
-
Page 6: Table Of Contents
4.3 Pinging the Router from Your Computer .................. 26 4.4 Checking If the ISP Settings are OK or Not ................27 4.5 Backing to Factory Default Setting If Necessary..............28 4.6 Contacting Your Dealer ......................29 Vigor3200 Series Quick Start Guide... - Page 7 Vigor3200 Series Quick Start Guide...
-
Page 9: Introduction
Vigor3200 Series is a broadband router. It integrates IP layer QoS, NAT session/bandwidth management to help users control works well with large bandwidth. By adopting hardware-based VPN platform and hardware encryption of AES/DES/3DES, the router increases the performance of VPN greatly, and offers several protocols (such as IPSec/PPTP/L2TP) with up to 32 VPN tunnels. -
Page 10: Panel Explanation
The port is connected with 10Mbps. Left LED The port is connected. (Green) The port is disconnected. Blinking The data is transmitting. The port is connected with 1000Mbps. Right LED (Green) The port is disconnected with 100Mbps. Vigor3200 Series Quick Start Guide... - Page 11 WAN1- WAN4 Connecters for remote networked devices. Connecter for local DMZ host. Connecter for local network devices. Connecter for 3G Modem or printer. Connecter for a power adapter. Power Switch. ON/OFF Vigor3200 Series Quick Start Guide...
-
Page 12: For Vigor3200N
The port is connected with 10Mbps. Left LED The port is connected. (Green) The port is disconnected. Blinking The data is transmitting. Right LED The port is connected with 1000Mbps. (Green) The port is disconnected with 100Mbps. Vigor3200 Series Quick Start Guide... - Page 13 WAN1- WAN4 Connecters for remote networked devices. Connecter for local DMZ host. Connecter for local network devices. Connecter for 3G Modem or printer. Connecter for a power adapter. Power Switch. ON/OFF Vigor3200 Series Quick Start Guide...
-
Page 14: Package Content
The type of the power adapter depends on the country that the router will be installed: UK-type Power Adapter EU-type Power Adapter USA/Taiwan-type Power Adapter AU/NZ-type Power Adapter * The maximum power consumption is 20 Watt. Vigor3200 Series Quick Start Guide... -
Page 15: Installing Your Router
Power on the device by pressing down the power switch on the rear panel. The system starts to initiate. After completing the system test, the ACT LED will light up and start blinking. (For the detailed information of LED status, please refer to section 1.1.) Vigor3200 Series Quick Start Guide... -
Page 16: Printer Installation
You can install a printer onto the router for sharing printing. All the PCs connected this router can print documents via the router. The example provided here is made based on Windows XP/2000. For Windows 98/SE/Vista, please visit www.draytek.com. Before using it, please follow the steps below to configure settings for connected computers (or wireless clients). - Page 17 Next. Click Local printer attached to this computer and click Next. In this dialog, choose Create a new port Type of port and use the drop down list to select Standard TCP/IP Port. Click Next. Vigor3200 Series Quick Start Guide...
- Page 18 In the following dialog, type 192.168.1.1 (router’s LAN IP) in the field of Printer Name or IP Address and type IP_192.168.1.1 as the port name. Then, click Next. Click Standard and choose Generic Network Card. Then, in the following dialog, click Finish. Vigor3200 Series Quick Start Guide...
- Page 19 11. Select "LPR" on Protocol, type p1 (number 1) as Queue Name. Then click OK. Next please refer to the red rectangle for choosing the correct protocol and LPR name. Vigor3200 Series Quick Start Guide...
- Page 20 If you do not know whether your printer is supported or not, please visit www.draytek.com to find out the printer list. Open Support >FAQ; find out the link of Printer Server and click it; then click the What types of printers are compatible with Vigor router? link.
-
Page 21: Configuring Web
The web page can be logged out according to the chosen condition. The default setting is Auto Logout, which means the web configuration system will logout after five minutes without any operation. Change the setting for your necessity. Now, the Main Screen will pop up. Vigor3200 Series Quick Start Guide... -
Page 22: Basic Configuration
Note: The home page will change slightly in accordance with the router you have. Enter the login password on the field of New Password and retype it on the field of Confirm Password. Then click Next to continue. Vigor3200 Series Quick Start Guide... - Page 23 On the next page as shown below, please select the appropriate Internet access type according to the information from your ISP. For example, you should select PPPoE mode if the ISP provides you PPPoE interface. Then click Next for next step. Vigor3200 Series Quick Start Guide...
- Page 24 Username/Password provided by your ISP. Then click Next. PPTP/L2TP: if you click PPTP/L2TP, you will get the following page. Please type in all the information originally provided by your ISP. Then click Next for next step. Vigor3200 Series Quick Start Guide...
- Page 25 Static IP: if you click Static IP, you will get the following page. Please type in the IP address information originally provided by your ISP. Then click Next for next step. DHCP: if you click DHCP, you will get the following page. Simply click Next to continue. Vigor3200 Series Quick Start Guide...
-
Page 26: Wireless Configuration
In an Infrastructure Mode of wireless network, Vigor wireless router plays a role as an Access Point (AP) connecting to lots of wireless clients or Stations (STA). All the STAs (clients) will share the same Internet connection with other wired hosts via Vigor wireless router. Vigor3200 Series Quick Start Guide... -
Page 27: General Setup
At present, the router can connect to IEEE802.11b, IEEE802.11g and IEEE802.11n stations simultaneously. Simply choose Mixed (11b+11g+11n) mode. Type in the name of the SSID. The default name for SSID is DrayTek. We suggest you change it to a particular name for your necessity. -
Page 28: Security Settings
PSK. WPA2/PSK Accepts only WPA2 clients and the encryption key should be entered in PSK. Mixed (WPA+WPA2)/ Accepts WPA and WPA2 clients, and the encryption key should be entered in PSK. Vigor3200 Series Quick Start Guide... - Page 29 Be aware that for the communication, all wireless devices must support the same encryption bit length and share the same key. If WEP mode is selected, only one of four preset keys can be selected at one time. Vigor3200 Series Quick Start Guide...
- Page 30 This page is left blank. Vigor3200 Series Quick Start Guide...
-
Page 31: Trouble Shooting
Turn on the router. Make sure the ACT LED blink once per second and the correspondent LAN LED is bright. If not, it means that there is something wrong with the hardware status. Simply back to “2.1 Hardware Installation” to execute the hardware installation again. And then, try again. Vigor3200 Series Quick Start Guide... - Page 32 Go to Control Panel and then double-click on Network Connections. Right-click on Local Area Connection and click on Properties. Select Internet Protocol (TCP/IP) and then click Properties. Vigor3200 Series Quick Start Guide...
- Page 33 Double click on the current used Mac OS on the desktop. Open the Application folder and get into Network. On the Network screen, select Using DHCP from the drop down list of Configure IPv4. Vigor3200 Series Quick Start Guide...
-
Page 34: Pinging The Router From Your Computer
Open the Application folder and get into Utilities. Double click Terminal. The Terminal window will appear. Type ping 192.168.1.1 and press [Enter]. If the link is OK, the line of “64 bytes from 192.168.1.1: icmp_seq=0 ttl=255 time=xxxx ms” will appear. Vigor3200 Series Quick Start Guide... -
Page 35: Checking If The Isp Settings Are Ok Or Not
Open WAN >> Internet Access page and then check whether the ISP settings are set correctly. Click Details Page of each WAN interface to review the settings that you configured previously. Vigor3200 Series Quick Start Guide... -
Page 36: Backing To Factory Default Setting If Necessary
5 seconds. When you see the ACT LED blinks rapidly, please release the button. Then, the router will restart with the default configuration. After restore the factory default setting, you can configure the settings for the router again to fit your personal request. Vigor3200 Series Quick Start Guide... -
Page 37: Contacting Your Dealer
If the router still cannot work correctly after trying many efforts, please contact your dealer for further help right away. For any questions, please feel free to send e-mail to support@draytek.com. Vigor3200 Series Quick Start Guide...
